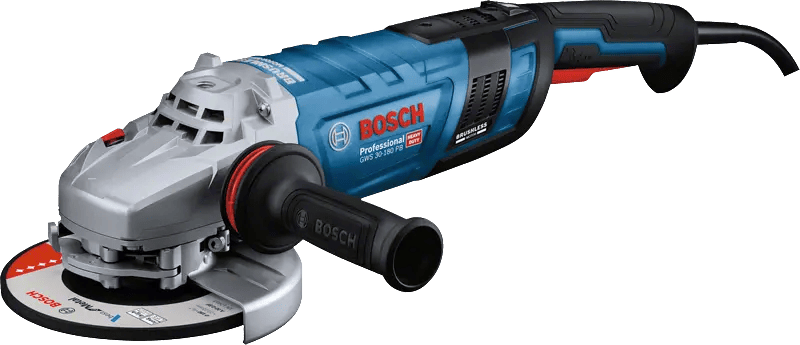

Angle grinder GWS 30-180 PB

Powerful angle grinder with brushless motor, PROtection switch and motor brake

• Excellent performance and very good material removal thanks to the 2800 W brushless motor
• Less wear and downtime thanks to brushless motor
• Improved user protection thanks to the PROtection switch, KickBack Control, Vibration Control system and improved vibration damping system

Product Highlights

The GWS 30-180 PB Professional is equipped with a very powerful 2800 W motor guaranteeing long-lasting performance and very good stock removal even in demanding jobs. It offers very high power, high overload capacity and guarantees maximum productivity. The absence of brushes and commutator reduces engine wear and forced downtime. The user is also better protected thanks to the KickBack Control, to the motor brake allowing a very fast immobilization of the disc and to the PROtection switch immediately cutting off the power supply when the trigger is released. In addition, a large part of the vibrations generated during the use of the tool are absorbed thanks to the Vibration Control system and the improved vibration damping system.

Equipment and application

The GWS 30-180 PB Professional can be used to grind and deburr metal, trim weld seams and cut metal, concrete, bricks and tiles.

Further information

The GWS 30-180 PB Professional is equipped with an LED status indicator, overload protection, restart protection and soft start function.

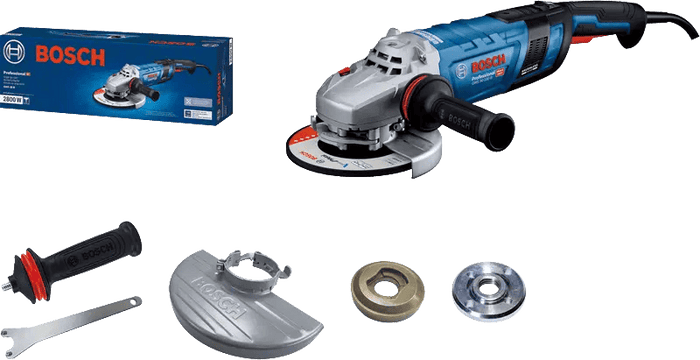

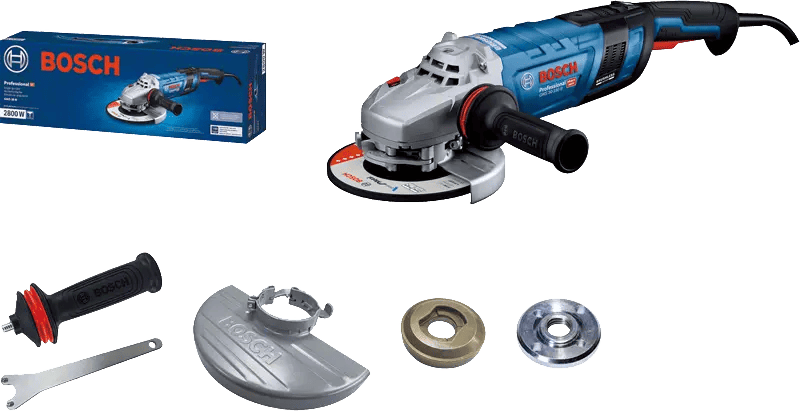

This product includes

• Clamping nut 1 603 340 040
• Pin wrench 1 607 950 048
• Auxiliary handle Vibration Control 2 608 900 001
• Quick-adjust protective cover 2 605 510 280

Functions and main features

TECHNICAL CHARACTERISTICS

Most important data
Rated input power	2,800W
Idle speed*	8,500 rpm
Spindle thread	M14
Main handle	rat tail
wheel Ø	180mm
Soft sanding pad, Ø	180mm
Cup brush, Ø	100mm
Weight*	5.7kg
Switch	PROtection switch
Packaging dimensions (length x width x height)	190 x 605 x 135mm
Electric tension	230V

Total vibration values ​​(Surface grinding (roughing))
Vibration emission value ah	5m/s²
Uncertainty K	1.5m/s²

Total vibration values ​​(Sanding with sanding sheet)
Vibration emission value ah	2.7m/s²
Uncertainty K	1.5m/s²

Noise/vibration information
Sound pressure level	92.5dB(A)
Sound power level	103.5dB(A)
Uncertainty K	3dB

The A-weighted sound level of the power tool is typically: sound pressure level 92.5 dB(A); sound power level 103.5 dB(A). Uncertainty K = 3 dB.
