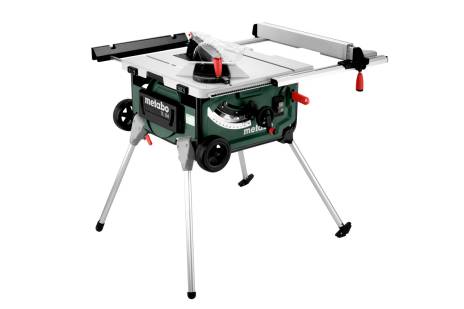

Metabo TS254 Table Saw 254mm 200w

Extremely light table saw with trolley function for more mobility on the construction site
Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with a secure stand
Very compact with folded stand for comfortable transport and space-saving storage
Second working height for working near ground level

Anti-twist tubular frame construction for the highest demands on the building site and during installations
Cables and all add-on components for transport can be stored on the casing
Powerful motor with electronic overload protection
Motor brake for quick stop of the saw blade in 3 seconds

Restart protection: prevents unintentional start-up after a power supply interruption
Soft start for a long service life of motor and drive
Precise rip fence with double clamping and quick fastening
Precise saw blade inclination via gear guide
Automatic resetting to 0 – 45 ° after undercuts

Easy saw blade change with spindle lock
Splitting wedge can be lowered without tools for hidden cuts and transport
Precise, extendable table width extension for extra large working surfaces

Technical data

Dimensions	740 x 750 x 355 mm
Max. support surface	970 x 995 mm
Working height	850 / 355 mm
Cutting height	0 - 87 mm
Maximum cutting height 90/45°	87 / 54 mm
Maximum cutting width at rip fence	630 mm
Maximum material width at mitre fence	200 mm
No-load speed	4200 rpm
Cutting speed	56 m/s
Saw blade	254 x 30 mm
Saw blade swivel range	-1.5 - 46.5 °
Mains voltage	220 - 240 V
Rated input power S1 100%	1700 W
Rated input power S6 20%	2000 W
Weight	33.4 kg
Cable length	3.1 m
Noise emission
Sound pressure level	99 dB(A)
Sound power level (LwA)	112 dB(A)
Uncertainty of measurement K	3 dB(A)

Scope of delivery

Carbide saw blade with alternately bevel-ground tips (40 teeth)
Stand
Hard rubber tires
Rip Fence
Mitre Fence
Table Length Extension
Table width extension (right)
Saw blade case
Push stick
