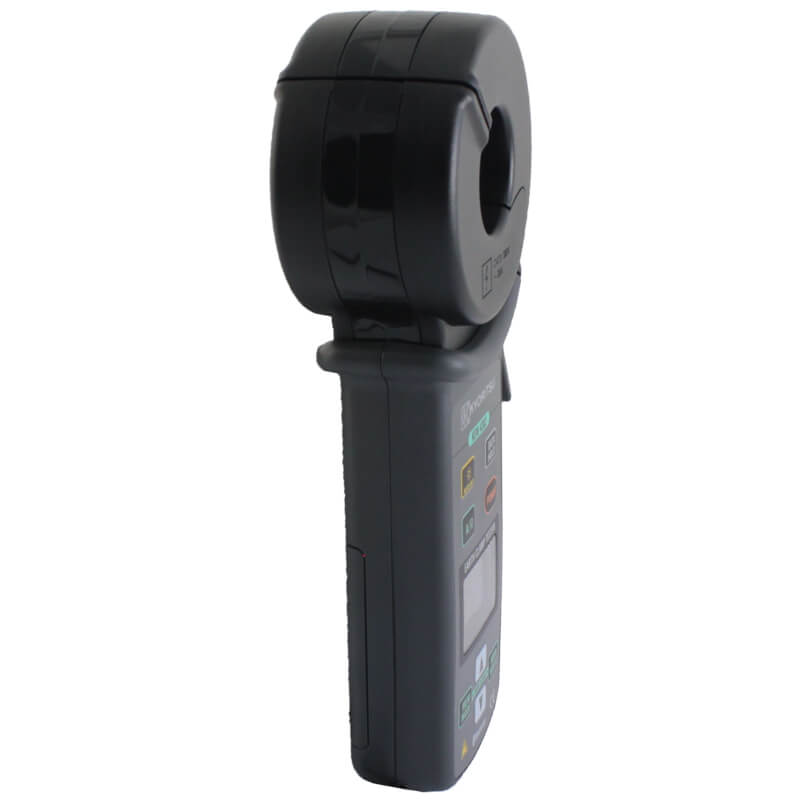

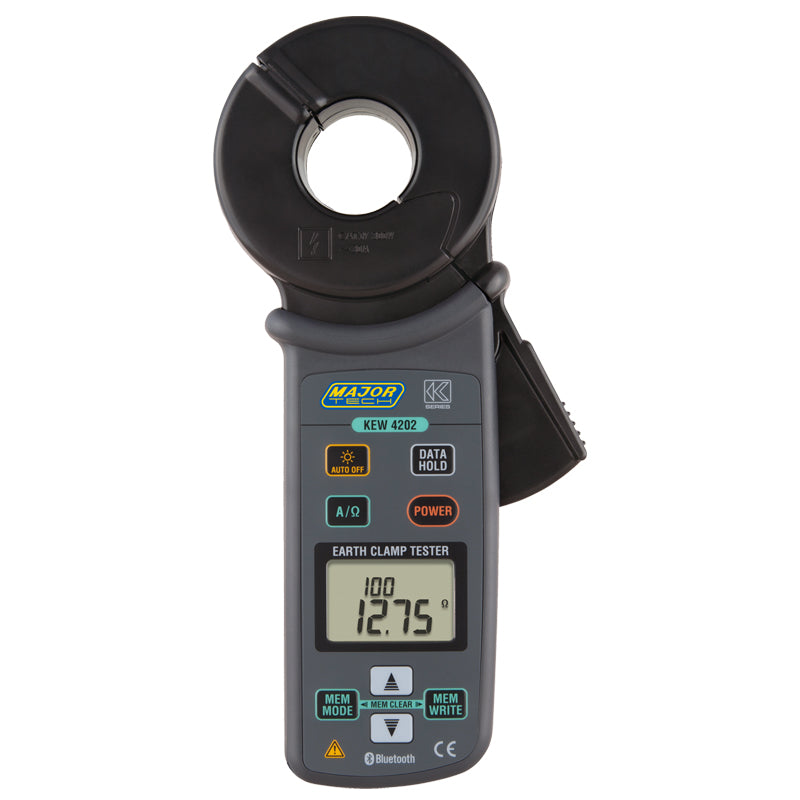

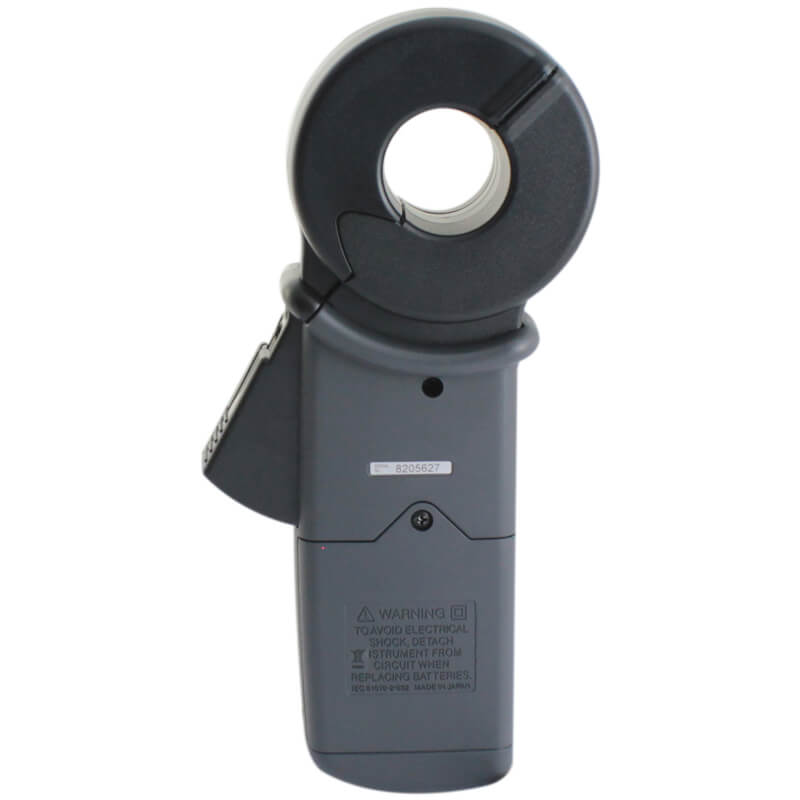

Major Tech Earth Resistance Clamp Meter with Bluetooth | K4202
DetailsThe K4202 measures earth resistance from 0.05 to 1500Ω and can be measured without the auxiliary earth spikes in multiearthing systems. True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks. The filter function offers increased immunity to electrical noise and a noise mark appears in excessively high noisy environments. The K4202 stores up to 100 measurements and real time measurements can be transferred, shown and saved on an Android device using Bluetooth communication. Saved data includes measurement, GPS location, date and time.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 100mA/1000mA/10A/30A | 0.1mA | ±(1%+5) |
| Earth resistance | 20/200/600/1200Ω | 0.01Ω | ±(2%+0.5) |
| Conductor size | 32mm | ||
| True RMS | AC Current | ||
| PC interface | Bluetooth interface | ||
| Display | LCD Display 2099 | ||
| Memory | 100 data points | ||
| Back light | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 4 x L6P | ||
| Weight | 780g | ||
| Dimensions | 246 x 120 x 54mm | ||
| Safety specs | IEC61010-1 CatIV 300V |
Supplier SKU: K4202
