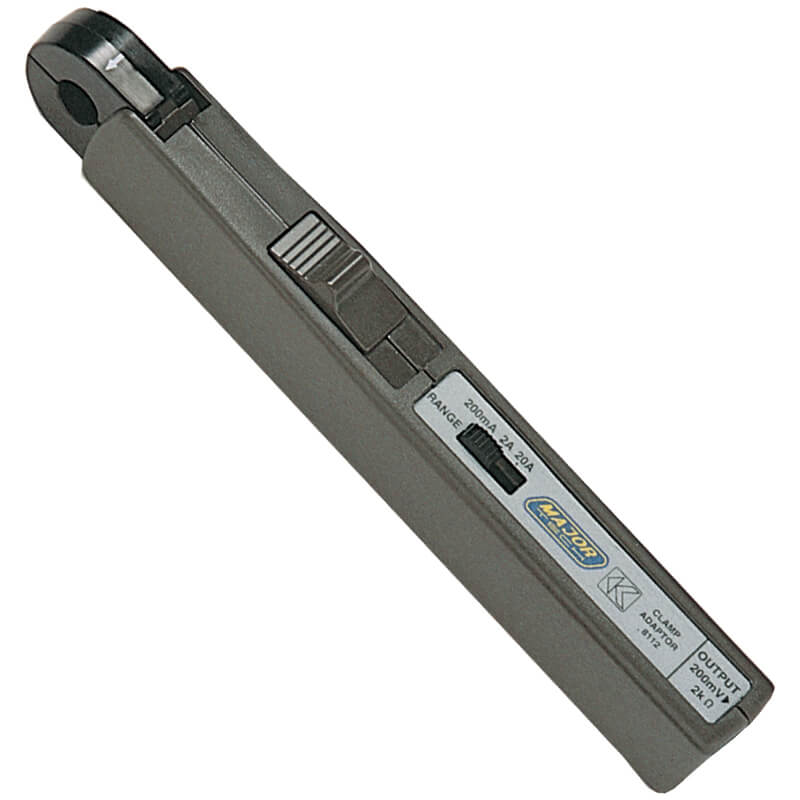

Major Tech AC Mini Clamp Adaptor | K8112
DetailsThe K8112 clamp adaptor with a small conductor size of 8mm is designed to be an AC current/voltage conversion probe capable of measuring AC current from 0,1mA to 120A in conjunction with high sensitivity AC voltmeters, especially useful with digital multimeters. Simple to operate, the unit has range switch position at 200mA, 2A and 20A. currents. The adaptor has a wide frequency range from DC to 1kHz.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1mA - 120A Ā±(1.5% + 0.2mA) | ||
| AC Bandwidth | 40Hz to 10kHz | ||
| Jaw size | 8mm | ||
| Enclosure | Moulded case | ||
| Low battery indication | ā¢ | ||
| Power source | 2 x LR03 | ||
| Weight | 100g | ||
| Dimensions | 147 x 58 x 26mm | ||
| Safety Specs | IEC61010-1 CatII 100V |
Supplier SKU: K8112
Brand
Major Tech
