Major Tech 600A AC/DC Clamp Meter | MT713

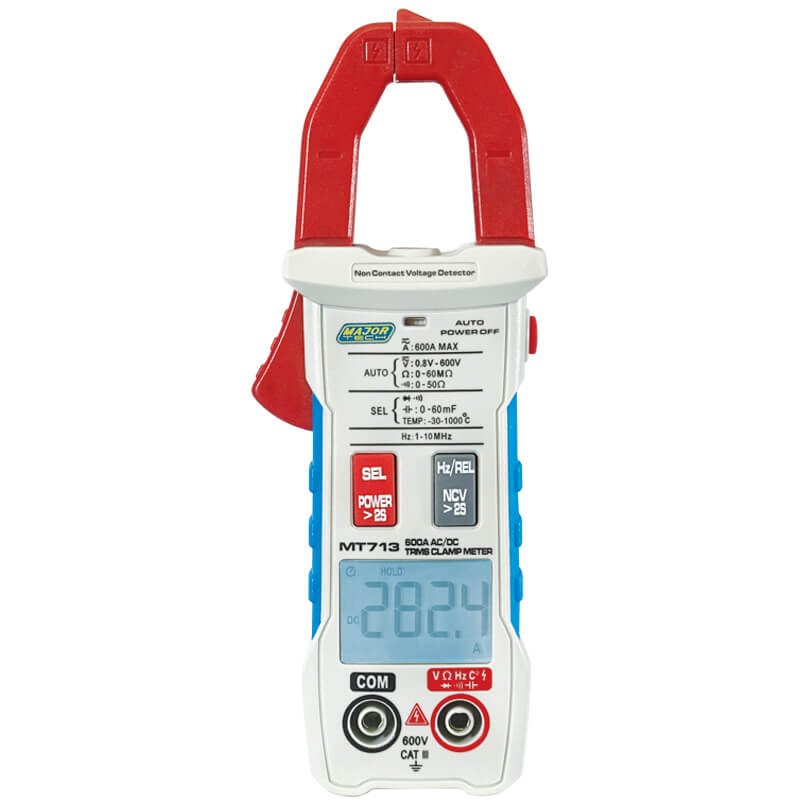

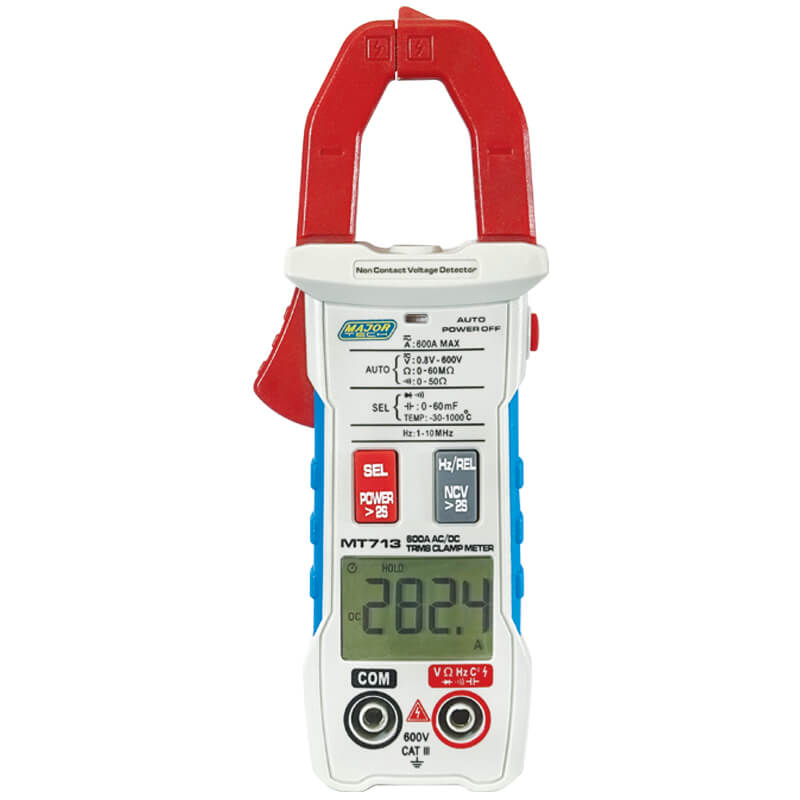

DetailsThe MT713 is a 600A AC/DC Clamp Meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. There is a built-in Non-Contact voltage detector, by pressing the NCV button continuously the LCD displays “EF” and will display “—-“ when voltage is detected and the buzzer sounds. The meter measures 600V AC/ DC, frequency, resistance, temperature and capacitance measurements, plus Inrush current and Peak Voltage value. Other features include a Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.
Specifications
Specifications:| Function | Range |
| DC Voltage | 6 – 600V |
| DC Voltage accuracy | ±(0.5%+3) |
| AC Voltage | 6-600V |
| AC voltage accuracy | ±(1.0%+3) |
| DC Current | 60-600 |
| DC Current accuracy | ±(2.0%+30) |
| AC Current | 60 – 600 |
| AC Current accuracy | ±(2.0%+30) |
| Resistance | 600k?-60M? |
| Capacitance | 6nF-60mF |
| Frequency | 6Hz-10MHz |
| Frequency accuracy | ±(0.1%+2) |
| Temperature | -30°C-1000°C |
| Temperature range | 1?C |
| Temperature accuracy | ±(2.5%+5) |
| Digital Display | 6000 Count |
| Range | Auto |
| Material | ABS |
| Update Rate | 3 Times/Second |
| TRMS Reading | Yes |
| Data Hold | Yes |
| Auto Power off | Yes |
| Dimensions | 172 x 64 x 32mm |
| Weight | 161 Grams |
| Power Supply | 1.5V AA Battery x 2 |
Supplier SKU: MT713
Brand
Major Tech
Title
Major Tech 600A AC/DC Clamp Meter | MT713
