FEATURES
• Adopting Goshen Ridge solution
• Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC.
• Slim compact Aluminium design
• Thunderbolt 4 Certified
• Designed for Thunderbolt 4 based PCs and Thunderbolt 3/DP-Alt-mode based PC's and Macs utilizing MacOS 11 and later versions (Limitations can vary on different Apple proprietary Silicon).
• Supports Thunderbolt 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TB3, USB4, DP Alt mode, USB protocol
• Allow to output single 8K30Hz, dual 4K/60Hz or triple (4K/60Hz*3) displays with extended desktop displays on Windows based systems
• RJ45 supports 10M/100M/1000M/2.5G bandwidth
• 1x Thunderbolt 4 downstream port, allow you to cascade Thunderbolt devices
• Self-powered from DC power adapter with max 96W for host, max 134W for host and Dock
• Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
• Support TB4/USB4/TB3/DP-Alt-mode Hosts
• Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)
SPECIFICATIONS
Upstream: 1x
Supports Thunderbolt 4 up to 40Gbps, compatible with Thunderbolt 3, USB4, DP Alt mode, USB protocol
Supports TB4/USB4/TB3/DP
Alt-mode Hosts- Support max. 96Watt Host charging, 5V/9V/15V@3A,20V@4.8A
1x USB3.2 Gen2 Type-C
2x USB3.2 Type-A Gen2
2x USB2.0 Gen1 Type-A
1x Ethernet RJ45
1x Audio JACK 3.5mm
1x DC Power Jack
Brand
CLUB3D
Title

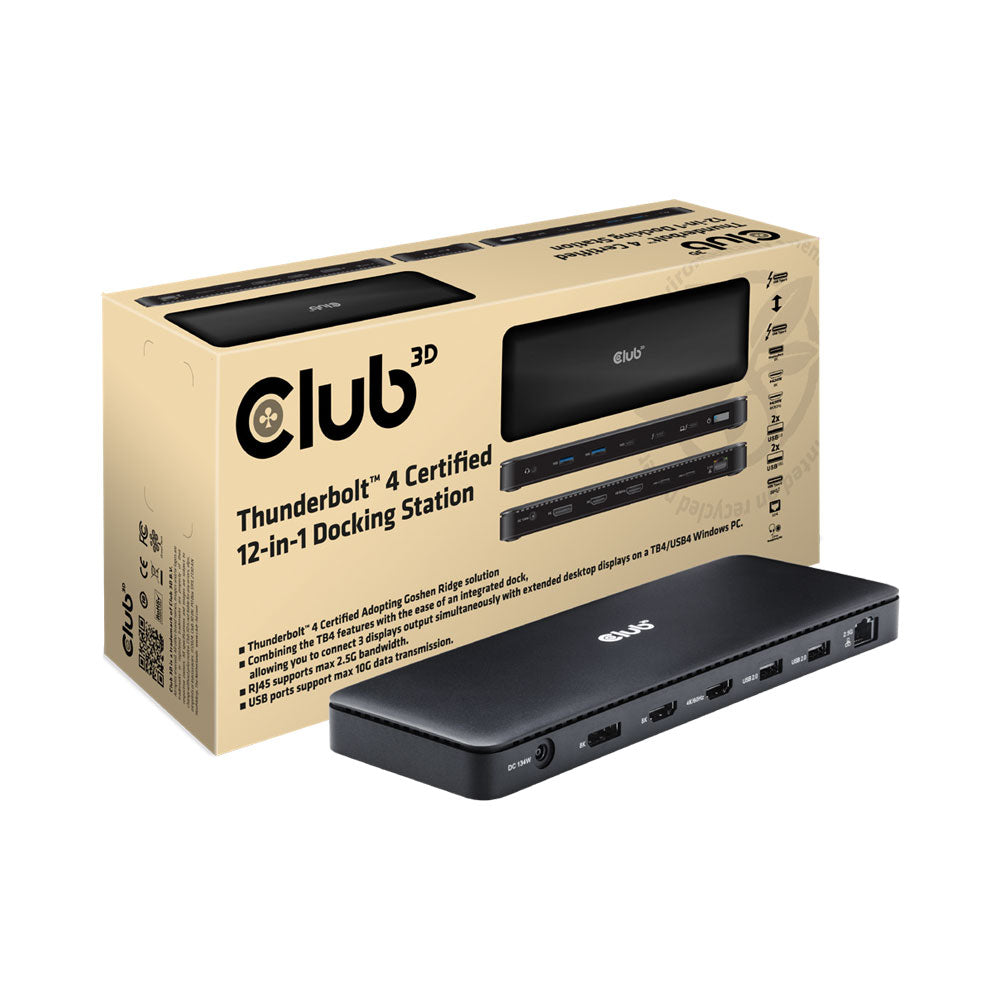

THUNDERBOLT 4CERTIFIED 12IN1 DOCKING STATION - CSV-1582-CLUB3D
