Einhell 4010800 TE-AC 430/90/10 Electric Compressor 3000W 10 bar 90 L tank

Special features

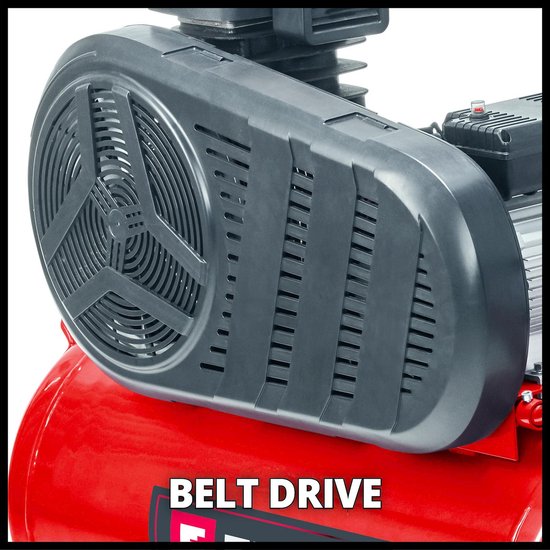

• Powerful compressor with V-belt drive
• Belt drive ensures low speed and quiet operation
• Long service life thanks to oil lubricated pump & high quality parts
• Oil level check through the oil level sight glass

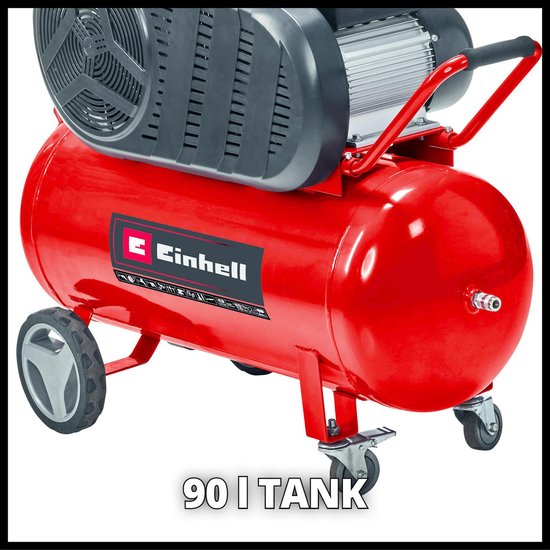

• 90 L tank provides sufficient air reserves for long term operations
• High air flow & long service life thanks to dual compressor unit
• Applications up to 10 bar can be set with the pressure regulator
• Pressure gauge & quick coupling for regulated pressure
• Pressure gauge & quick coupling for unregulated pressure

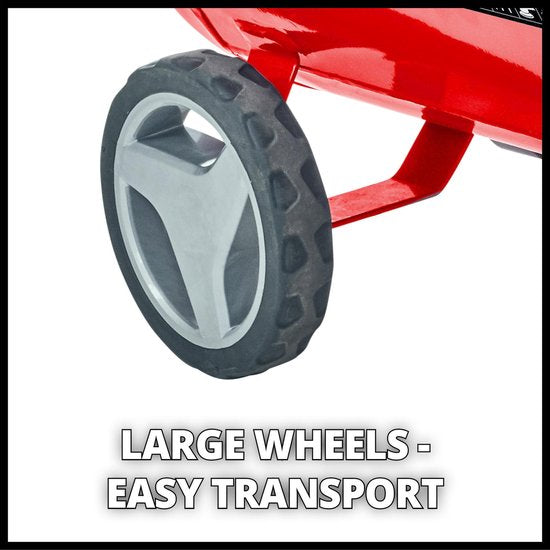

• 2 large wheels and 2 swivel wheels with locking brake
• 10-year warranty against tank rusting through
• Check valve, safety valve
• Drain valve enables user-friendly maintenance

Technical data

• Power supply: 220-240 V | 50 Hz

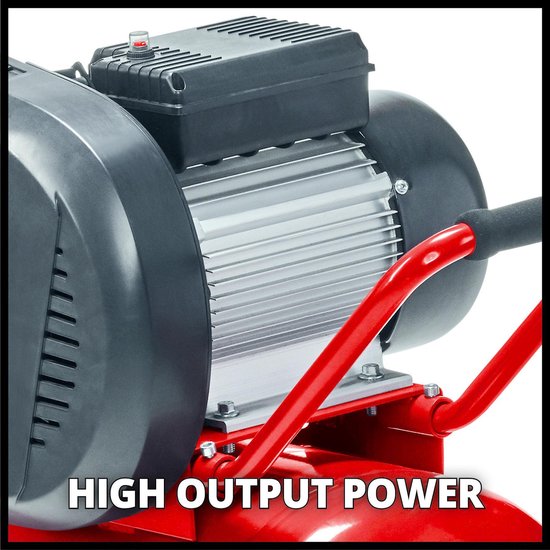

• Max. Motor power: 3000 W (4.1 PS
• Engine speed: 2850 /min
• No load speed: 1020 /min
• Suction capacity: 430 L/min
• Output power at 0 bar: 230 L/min
• Output power at 4 bar: 210 L/min
• Output power at 7 bar: 200 L/min
• Max. Working pressure: 10 bar
• Boiler capacity: 90 L
• Number of Cylinders: 2 pcs
• Sound level Lpa: 73 dB (A)
• Sound level LWA: 93.5 dB (A)

Scope of delivery

• 1x Compressor
• Manometer and quick coupling for regulated working pressure
• Manometer and quick coupling for unregulated tank pressure
• 2 large wheels and 2 swivel wheels with a locking brake
