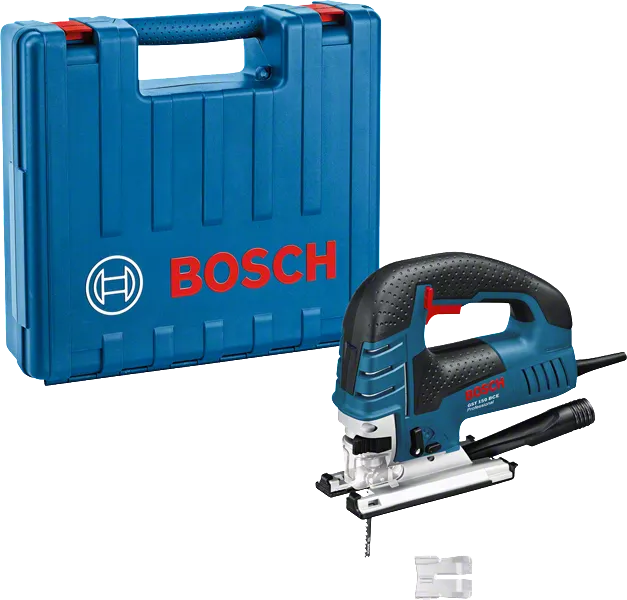

Bosch GST 150 BCE Jigsaw.
The most powerful tool in its price class
- High power reserves, even in hard and thick beams, due to powerful and overload-capable 780-watt motor
- Extremely robust and bend-resistant sole plate for the toughest jobs
- High cutting precision due to new saw blade clamping system
Additional data
|
| Rated input power |
780 W |
| Cable length |
4 m |
| Stroke rate at no load |
500 – 3,100 spm |
Cutting depth
|
| Cutting depth in wood |
150 mm |
| Cutting depth in aluminium |
20 mm |
| Cutting depth in non-alloyed steel |
10 mm |
Total vibration values (Sawing wood)
|
| Vibration emission value ah |
7.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Total vibration values (Sawing sheet metal)
|
| Vibration emission value ah |
4 m/s² |
| Uncertainty K |
1.5 m/s² |
Noise/vibration information
|
| Sound pressure level |
83 dB(A) |
| Sound power level |
94 dB(A) |
| Uncertainty K |
5 dB |
Sawing wood
|
| Vibration emission value ah |
7.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Sawing sheet metal
|
| Vibration emission value ah |
4 m/s² |
| Uncertainty K |
1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 5 dB.
USER MANUAL
Instruction manual | GST 150 BCE,GST 150 CE (PDF 11.7 MB)
Instruction manual | GST 150 BCE | GST 150 CE (PDF 6.4 MB)
