C.R.I. Pumps 4
C.R.I. Pumps 4

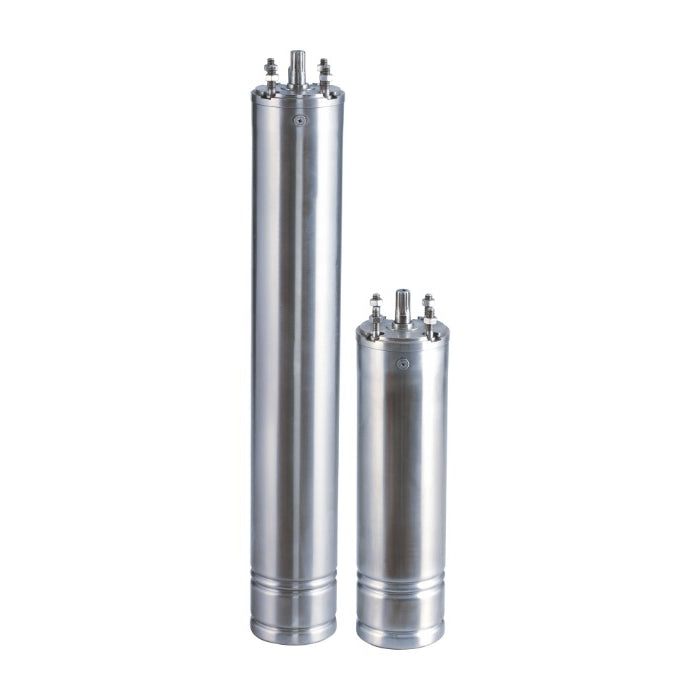

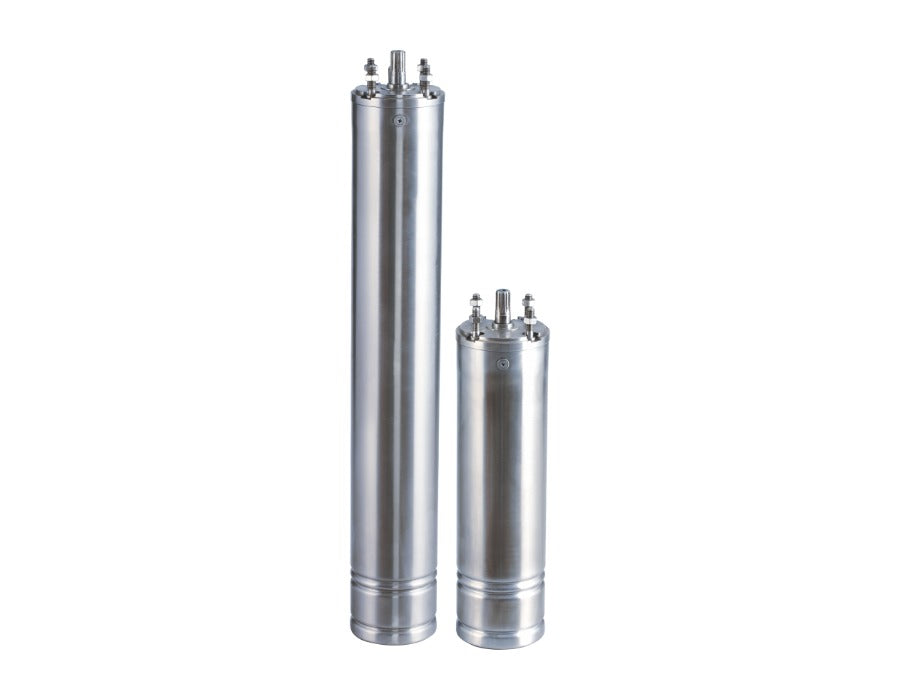

C.R.I Pumps 4" Submersible Oil Filled Motor - L4A-07N

R 5,143.00

R 5,403.00

Brand: C.R.I Pumps
SKU: L4A-07N
FREE DELIVERY : Orders Above R1350
WHEN WILL I GET MY ITEMS DELIVERED? Delivery : 2 – 7 Working Days Subject to Stock Availability

Image(s) are only used for illustrative purposes and may not exactly depict the actual item. Free delivery does not apply to large voluminous items or goods International shipping fees are approximate and are subject to change after placing the order.
Tags: 4" Submersible Oil Filled Motor , C.R.I pumps , CRI001 , L Series , Single Phase 220V
C.R.I Pumps 4



4" Submersible Oil Filled Motor



Description










Motor power in kW Outlet size (inches)
0.75 0



C.R.I. "L series" motors are deep well / bore hole rewindable submersible type, pre filled with non-toxic edible oil. These motors are suitable for installation upto 150 meters and available in single phase and three phase power supply. Rotors are supported with ball and angular contact bearings to withstand maximum axial and radial thrust loads. All mounting dimensions are in accordance with NEMA standards.



Specification














































Nominal Diameter

4"

Series

Oil Filled Rewindable Submersible Motors

Power Range kW

Single Phase : 0.37 – 2.2kW
Three Phase : 0.37 – 7.5kW

Speed

2900 rpm

Versions

Single Phase : 230V, 50Hz, Three
Phase : 380V – 415V, 50Hz

Method of Starting

Single Phase – Capacitor Star and Run (CSR), Three Phase – Direct On Line(DOL).

Maximum Down Thrust Load

0.37 – 0.75kW – 1500N, 1.1 – 4 kW- 2500N, 5.5 – 7.5kW – 4500N

Type of Duty

S1 (Continuous)

Degree of Protection

IP 68

Class of Insulation

F

Max.Temperature of Liquid

30?C

Minimum Cooling Flow Along the Motor

0.15 m/sec

Starts per Hour

Single Phase – 20 Times,
Three Phase – 12 Times

Available M.O.C

Type A



 Features



  • High efficiency
  • Heavy duty bearings
  • Corrosion resistant stainless steel motor body
  • Rigid and compact design
  • Can be easily dismantled and repaired



 Application



  • Residence
  • Agriculture
  • Gardens
  • Sprinkler systems
  • Fountains
  • Building services
