FEATURES
• HDMI Transmission up to 120m via CAT6 Network Cable
• Resolutions up to 1080p @60Hz
• Supports Point-to-Point Connection or One-to-Many Connections via a Network Switch
• Supports KVM Function
• Aluminium-Alloy Casing
• Lightning, Surge and ESD Protection
SPECIFICATIONS
Video Signal
• HDMI Version: HDMI 1.3
• HDCP Version: HDCP 1.4
• Video Bandwidth: ≤20Mbps
• Supported HDMI Resolutions: 640×480 @60Hz, 800×600 @60Hz, 1024×768 @60Hz, 1280×720 @60Hz, 1360×768 @60Hz, 1440×900 @60Hz, 1400×1050 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz (1080p @60Hz)
• Audio Support: PCM (44.1kHz, 48kHz)
Connectivity and Transmission
• Transmission Distance Over CAT6 Cable: up to 120m (Single CAT6 Cable)
• LAN Connector: RJ45
• HDMI Connector: Type-A, 19-Pin, Female
• KVM Function: Keyboard and Mouse Extension via USB over Network Cable
Power / Consumption
• Power Supply: DC 5V 1A (For Each Unit - Transmitter and Receiver)
• Power Consumption: TX <3.5W, RX <3.5W
Operating Conditions
• Operating Temperature: –10~60°C
• Relative Humidity: 10~95% (Non-Condensing)
Physical Properties
• Dimensions (Each Unit - TX and RX): 109.6 × 89.5 × 26.3mm
• Weight (Each Unit): 240g
• Colour / Housing: Black Metal / Aluminium-Alloy Casing
Brand
Lenkeng
Title

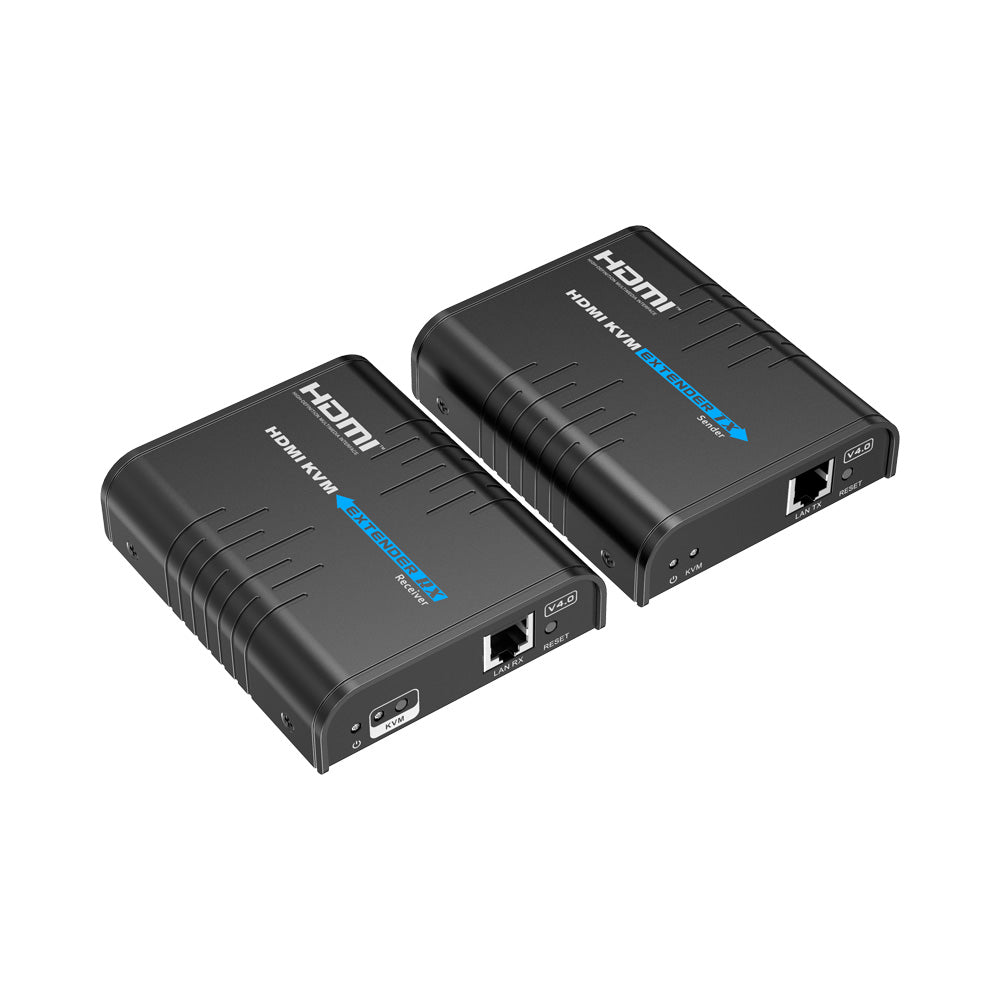

LENKENG 120M HDMI KVMEXTENDER OVER CAT5/5E/6 - CNV-LKV373KVM-4.0
