FEATURES
• Low Latency
• Distance up to 50m - 4K @60Hz (Wall Material and Environment Dependant)
• 5.1~5.8GHz Band - Channel Switchable
• Anti-Interference
• HDMI Loop-Out
• IR Passthrough Function
SPECIFICATIONS
• Voltage/Current: DC5V 2A
• Power Consumption: TX ≤6W, RX ≤4W
• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 1.4 / HDCP 2.2
• Maximum Transfer Rate: 18Gbps
• Resolution Supported: 3840×2160 @24/30/50/60Hz, 1080P @50/60Hz, 720P @50/60Hz, 1920×1200, 2560×1440, 2560×1600
• Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Wi-Fi Frequency Bands: 5.18~5.24GHz
• Transmission Distance: up to 50m
• Latency: 130~180ms
• Connection Types: One-to-One
• SSID Pairing: Supported
• ESD Protection: 1a Contact Discharge Level 3, 1b Air Discharge Level 3 (IEC61000-4-2 Standard)
• Infrared Frequency: 20~60kHz
• Receiving Range: Up To 5m
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity (No Condensation): 0~90% RH
• Dimensions: TX 115×125×20.6mm, RX 115×125×20.6mm
• Colour: Black
• Material: Metal
• Net Weight: TX 353g, RX 346g
Brand
Lenkeng
Title

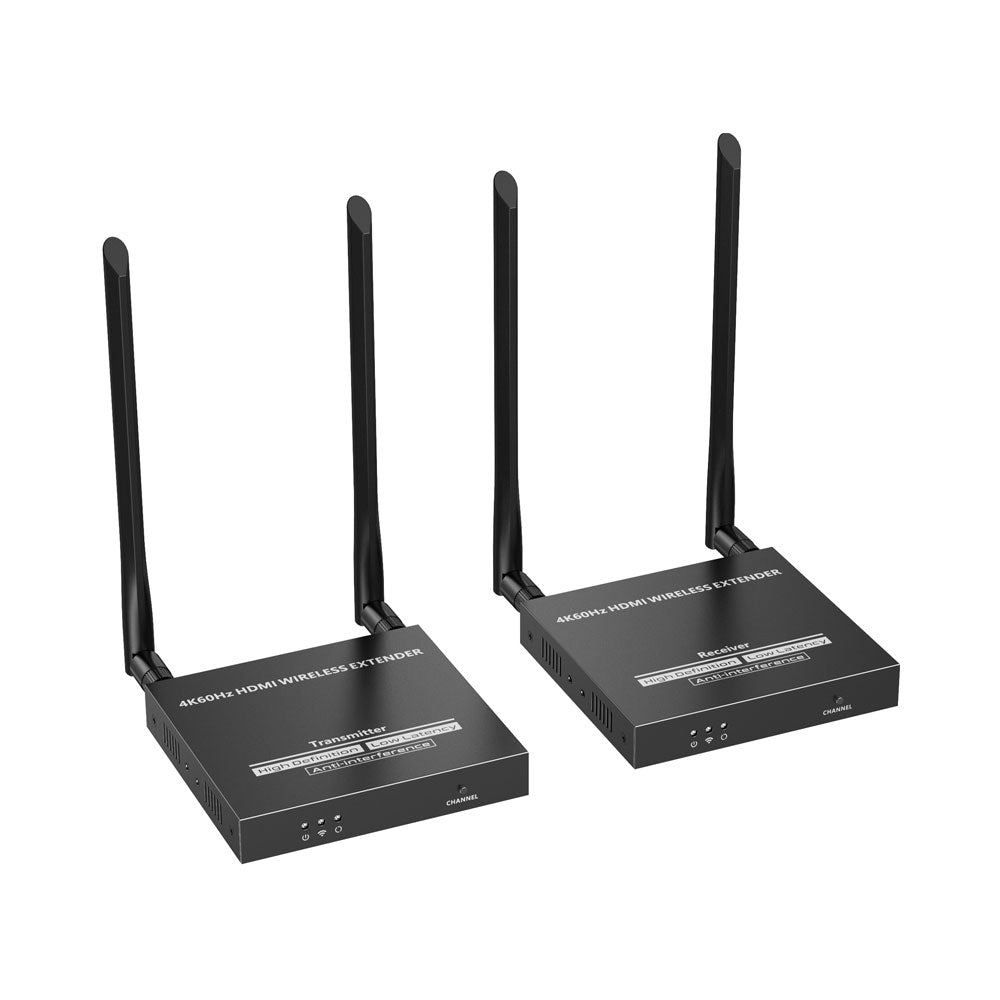

LENKENG 50M 4K@60HZ EXTENDER WITH IR LOOP/WIRELESS - CNV-LKV699
