FEATURES
• Zero Latency
• Resolution up to 4K @30Hz
• Supports CAT6/6A/7 Network Cables, 1080p @60Hz Transmission Distance up to 70m and 4K @30Hz Transmission Distance up to 40m
• Supports Bi-Directional IR Pass-Back Function (20–60kHz)
• Supports HDR10
• Supports EDID Passthrough
• Transmitter Supports HDMI Loop-Out
• Receiver Supports 3.5mm Stereo Audio Output
• Lightning, Surge and ESD Protection
• Receiver Supports PoC Network Cable Power Supply (Transmitter Requires Power Adapter)
SPECIFICATIONS
Video Signal
• Power:
Power Supply - TX: DC 5V 2A, RX: PoC (Powered via Network Cable from TX)
Power Consumption - TX + RX <8W
• HDMI / Video:
HDMI Compliance - HDMI 1.4
HDCP Compliance - HDCP 1.4
Supported Resolutions - up to 3840×2160 @24/25/30Hz (4K @30Hz), Also Supports 1080p, 720p and Lower Resolutions
Supported Refresh Rates/Formats - 1080p @60Hz, 4K @30Hz Transmission Distances
• Transmission / Distance
Transmission Medium - CAT6 / CAT6A / CAT7 Network Cable
Transmission Distance - up to 70m for 1080p @60Hz, up to 40m for 4K @30Hz
TMDS Signal Level - 0.7~1.2 Vp-p
DDC Signal Level - 5 Vp-p (TTL)
• Audio / Extra Features
Audio Formats Supported - PCM, LPCM, DTS-HD, DTS Audio
Supports HDR10
Supports EDID Passthrough
Bi-directional IR Pass-back (20~60kHz)
Transmitter Supports HDMI Loop-Out
Receiver Includes 3.5mm Stereo Audio Output
• Protection and Compliance
Protection - Lightning, Surge and ESD Protection (Meets IEC61000-4-2 Standard, ±4kV Contact, ±8kV Air Discharge)
• Operating Conditions
Working Temperature - –20~60°C
Storage Temperature - –30~70°C
Humidity (Non-Condensing) - 0–90% RH
• Physical
Dimensions (L × W × H) - 80 × 75 × 18mm
Material / Housing - Aluminium-Alloy Shell with Crystal Panel, Colour: Black
Weight - TX: 112g, RX: 109g
Brand
Lenkeng
Title

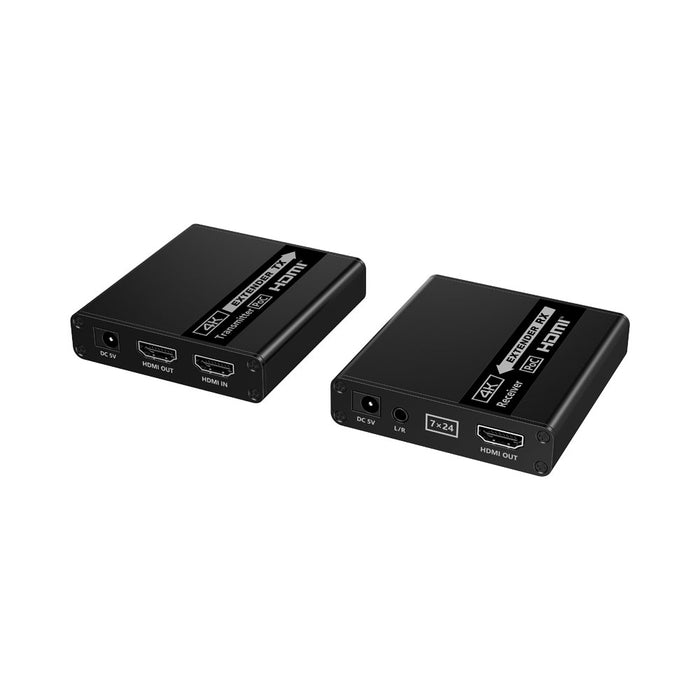

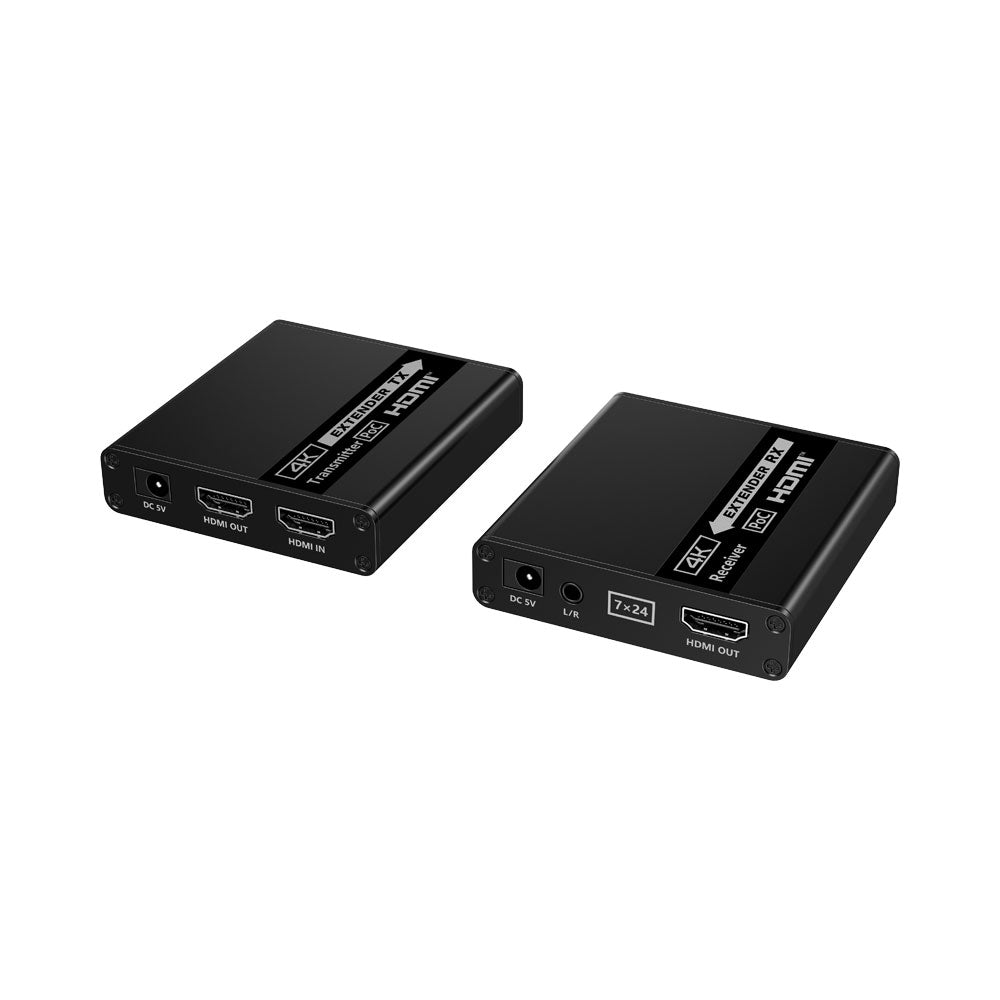

LENKENG 70M 1080P / 4K@40M POC - CNV-LKV223P
