FEATURES
• Zero Latency
• 1080p @60Hz (HDR)
• KVM Function
• HDMI Loop Out
• EDID Passthrough
• Lightning and Surge Protection
SPECIFICATIONS
• Voltage/Current: DC5V 1A
• Power Consumption: TX: <2.5W, RX: <2.5W
• HDMI Compliance: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• HDMI Resolution: 800 × 600, 1024 × 768, 1280 × 720, 1280 × 960, 1366 × 768, 1440 × 900, 1680 × 1050, 1920 × 1080, 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60Hz, 3840 × 2160 @24/25/30Hz
• Supports Audio Formats: PCM, LPCM, DTS HD, DTS Audio
• Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Input Cable Length: ≤8m (AWG24)
• Output Cable Length: ≤8m (AWG24)
CAT6/6A/7: 1080p @60Hz ≤70m, 4K @30Hz ≤40m
• Electrostatic protection of the whole machine: • Implementation of the standard: IEC61000-4-2, 1a Contact discharge level 2 (4KV), 1b Air discharge level 3 (8KV)
• Working temperature: -20~60°C
• Storage temperature: -30~70°C
• Humidity (no condensation): 0~90%RH
• Dimension (L × W × H): 75 × 85 × 20mm
• Material: Aluminium Alloy Material plus Crystal Panel
• Treatment Process: Grit Blast
• Colour: Black
• Weight: TX:180g, RX:180g
Brand
Lenkeng
Title

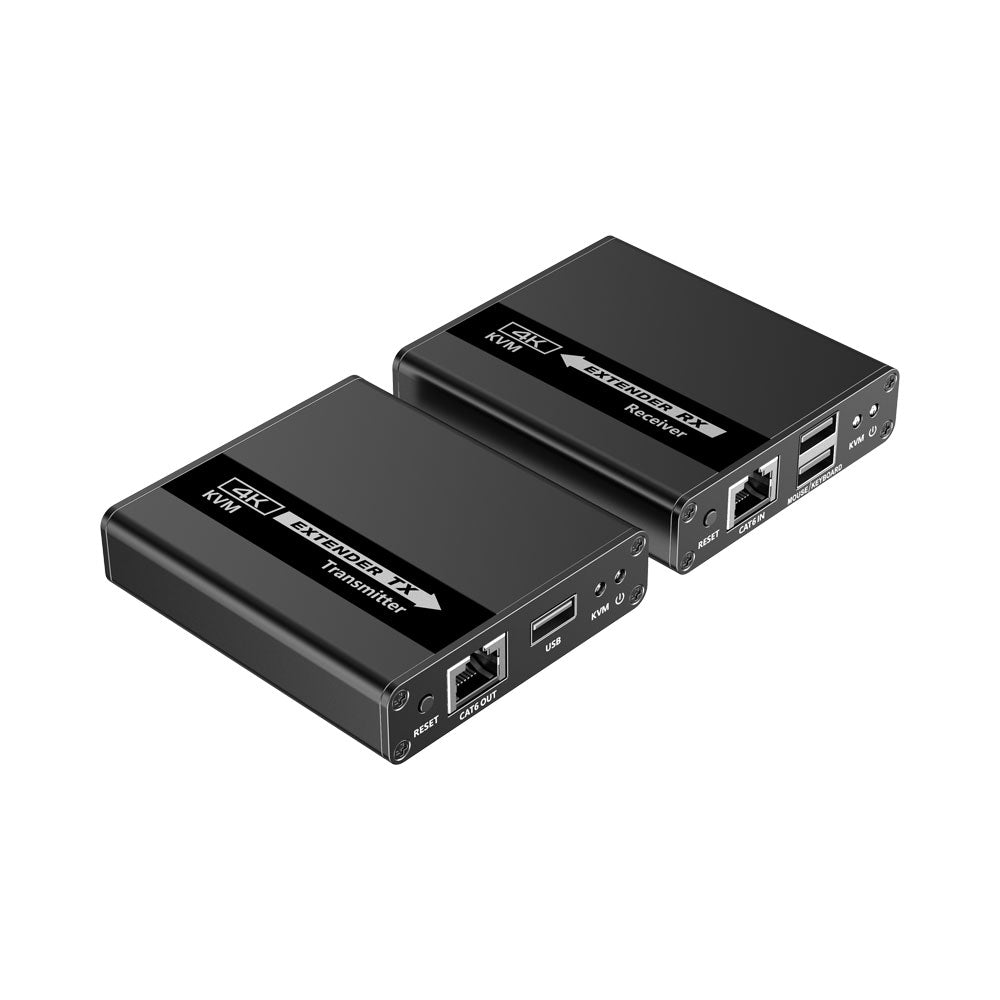

LENKENG 70M 1080P@60HZ EXTENDER - CNV-LKV223KVM
