FEATURES
• One to One
• Zero Latency
• Visually Lossless
• Distance up to 70m - 4K @60Hz with PoC
• HDMI Loop-Out
• IR Passback Function
• 3.5mm L/R Audio
SPECIFICATIONS
Video
• Input Interface: 1× HDMI Type-A Female (Transmitter) / 1× RJ45 Female (Receiver)
• Output Interface: 1× HDMI Type-A Female and 1× RJ45 Female (Transmitter) / 1× HDMI Type-A Female (Receiver)
• HDMI Length: <5m
• Maximum Transfer Rate: 18Gbps
• Maximum Transmission Bandwidth: 600MHz
• EDID Passthrough: Yes
• Compatibility: HDMI 2.0 (Deep Colour, 4K, HDR, YUV4:4:4), HDCP 2.2
• Resolutions: 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/50/60Hz, 4096×2160 @24/25Hz, 1280×960, 1280×800, 280×768, 1680×1050, 1360×768, 1366×768, 1600×900, 1024×768, 800×600
Transmission Distance: CAT6/6A/7 ≤70m
Audio
• Input Interface: 1× HDMI Type-A Female (Transmitter) / N/A (Receiver)
• Output Interface: 1× HDMI Type-A Female (Transmitter) / 1× HDMI Type-A Female and 1× 3.5mm L/R Female (Receiver)
• Audio Formats: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos
Command Signal
• IR Interface: 1× 3.5mm IR OUT Female (Transmitter) / 1× 3.5mm IR IN Female (Receiver)
• Receiving Range: ≤5m
• Infrared Frequency: 20~60kHz
Power
• Power Supply: DC 5V 2A
• Power Consumption: <4W
Operating Environment
• Working Temperature: –20~60°C
• Storage Temperature: –30~70°C
• Humidity: 0~90% RH (No Condensation)
Physical Properties
• Housing: Metal
• Weight: 140g
• Colour: Black
• Dimensions (L × W × H): 85 × 75.5 × 16.5mm
Protection
• ESD Protection: Contact Discharge Level 2 (±4kV), Air Discharge Level 3 (±8kV), IEC61000‑4‑2 Standard
• Lightning and Surge Protection
Certifications
• FCC / CE / RoHS 2.0
Brand
Lenkeng
Title

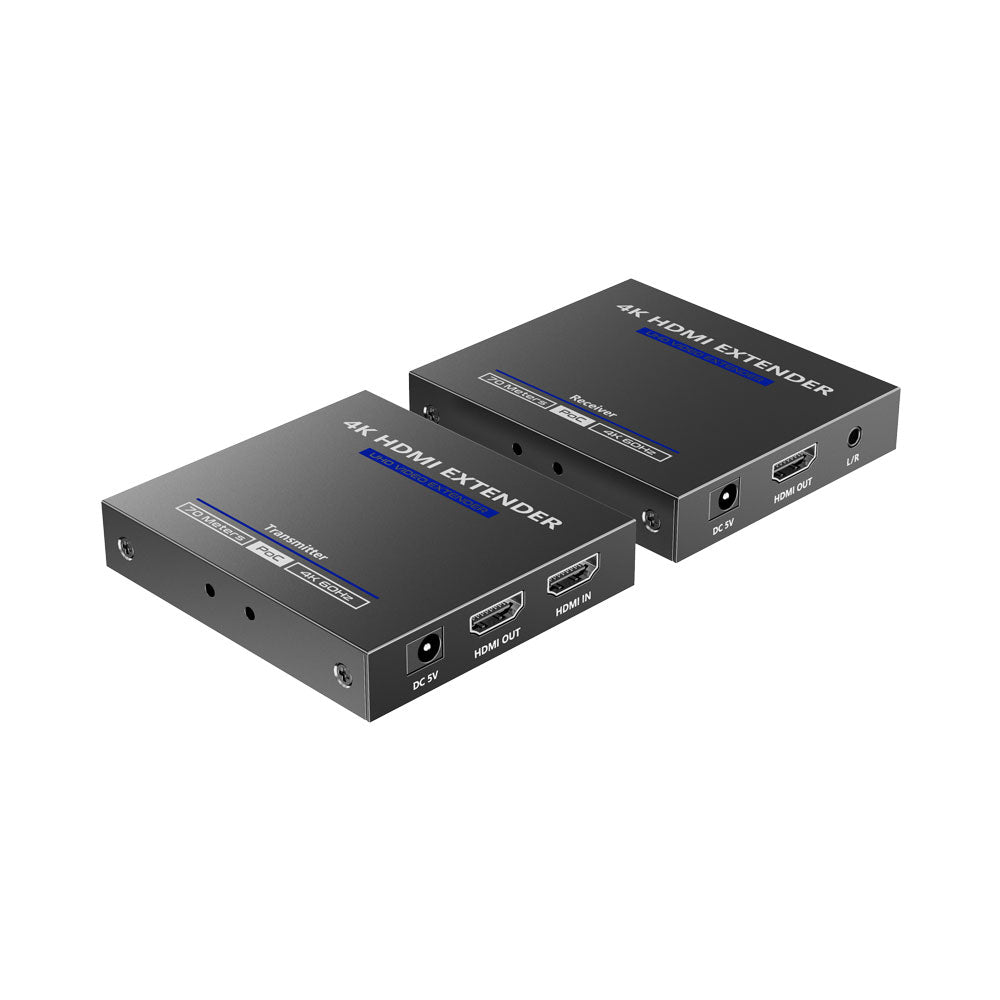

LENKENG 70M HDMI 2.0 EXT OVER CAT6 - 3.5MM AUDIO - CNV-LKV565P
