FEATURES
• Zero Latency Transmission
• Split and Extend One HDMI Input Signal to Eight Identical Network Output Signals
• Supports up to 4K @60Hz Resolution
• Transmission Distance up to 70m over CAT6/6A/7 Cables
• Supports IR Passback (20~60kHz)
• The Transmitter Supports HDMI Loop-Out
• The Receiver Supports 3.5mm Stereo Output
• EDID Switch for Setting
• RS232 Command Control
• Surge, Lightning and ESD Protection
• Equipped With Rack Mount Ears
• Supports PoC, Only the Transmitter is Required to Supply Power
SPECIFICATIONS
• Transmission Protocol: ipcolor
• Distribution Mode: 1-In and 8-Out
• Transmission Distance: up to 70m via CAT6/6A/7 Cable
• HDMI Signal: HDMI 2.0, HDCP 2.2
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz,
1280×960, 1280×800, 1280×1024, 1680×1050, 1600×1200, 1600×900, 1024×768, 800×600, 1920×1200, 3840×2160 @24/25/30/50/60Hz,
4096×2160 @24/25/30Hz
• Audio Formats: LPCM, DTS, Dolby Digital 5.1 (4K) and Extended Formats for 1080p
• IR Support: IR Passback Function (20~60kHz)
• RS232 Control: 3-Pin (TxD, RxD, GND), Follows RS-232 Levels
• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity: 0~90% RH (Non-Condensing)
• Protection: ESD Protection, Lightning Protection, Surge Protection
• Power Supply: Transmitter DC 12V 3A
• Power Consumption: Transmitter and Receiver <24W
• Material: Metal
• Colour: Black
• Weight: Transmitter 778g, Receiver 145g
• Dimensions: Transmitter 265 × 120 × 23mm, Receiver 85 × 75.5 × 16.5mm
Brand
Lenkeng
Title

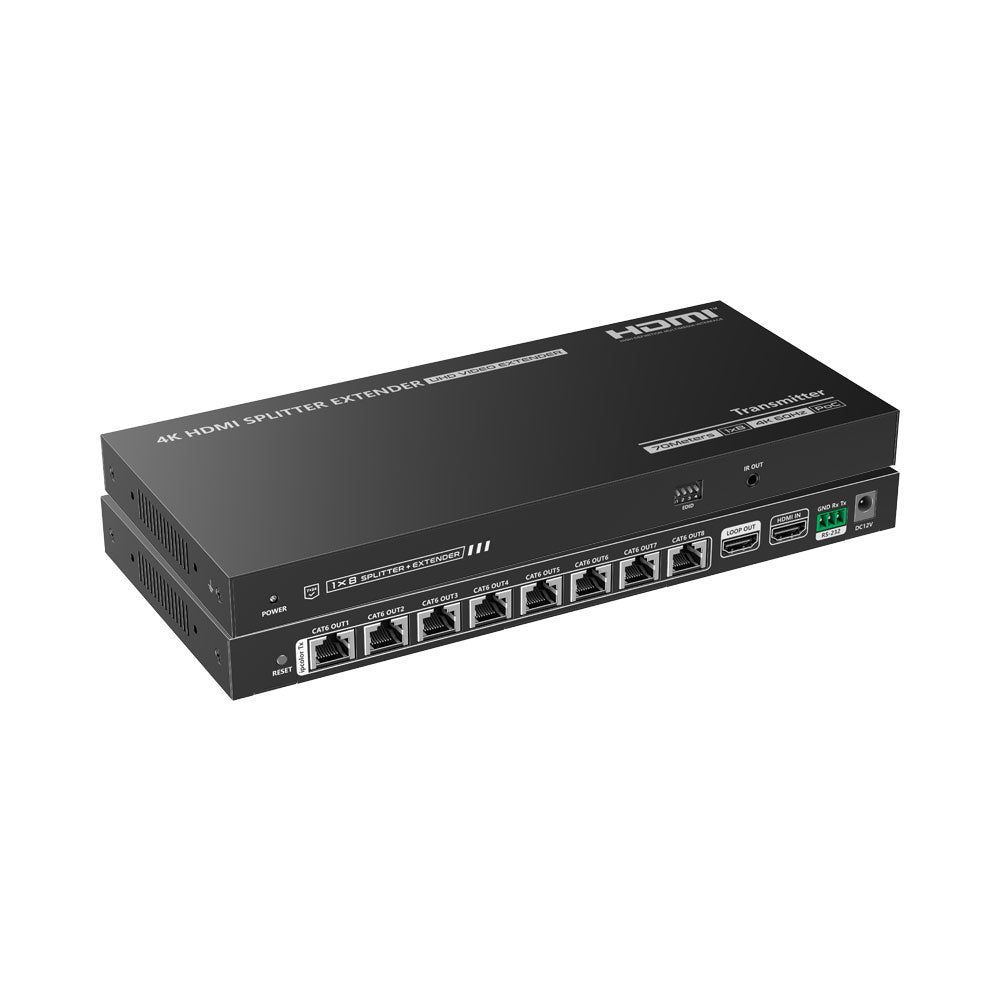

LENKENG IPCOLOUR 4K60 HDMI 1X8 SPLITTER CAT6/7 70M - CNV-LKV828P-N
