Major Tech 360° Microwave Motion Sensor - IP20 | MS361
DetailsThe MS361 automatically turns on lights and creates automations. It detects through obstacles like doors, glass panels, and thin walls, with a 360° detection range and adjustable settings. Easily integrated into new or existing setups, it excels in detecting subtle movements over large areas compared to PIR sensors. Its IP20 rating limits it to indoor use, and installation must be done by a qualified professional.
Application:
- Ideal for home use and in educational and commercial properties
- Detects through doors, glass panes or thin walls
Specifications

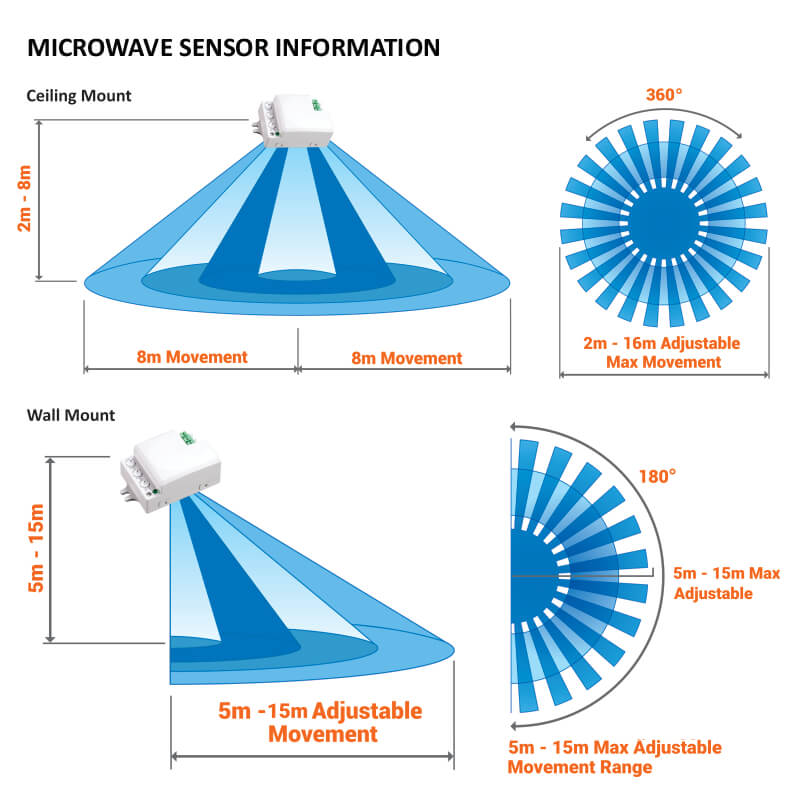

Specifications:| Function | Range |
| Detection Area Ceiling Installation Wall Installation |
360° 180° |
| Detection Distance Ceiling Installation Wall Installation |
2m - 16m (Adjustable) 5m - 15m (Adjustable) |
| Detection Motion Speed | 0.6 to 1.5m/s |
| HF System | 5.8GHz CW Radar, ISM Band |
| Ambient Light |
|
| Installation Height Ceiling Installation Wall Installation |
2m to 8m 5m to 15m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
1200W 600W |
| Time Delay | 10 sec (±3 sec) to 12 min (±1 min) |
| Power Consumption |
|
| Mounting | Ceiling & Wall Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP20 (Indoor Installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: MS361
