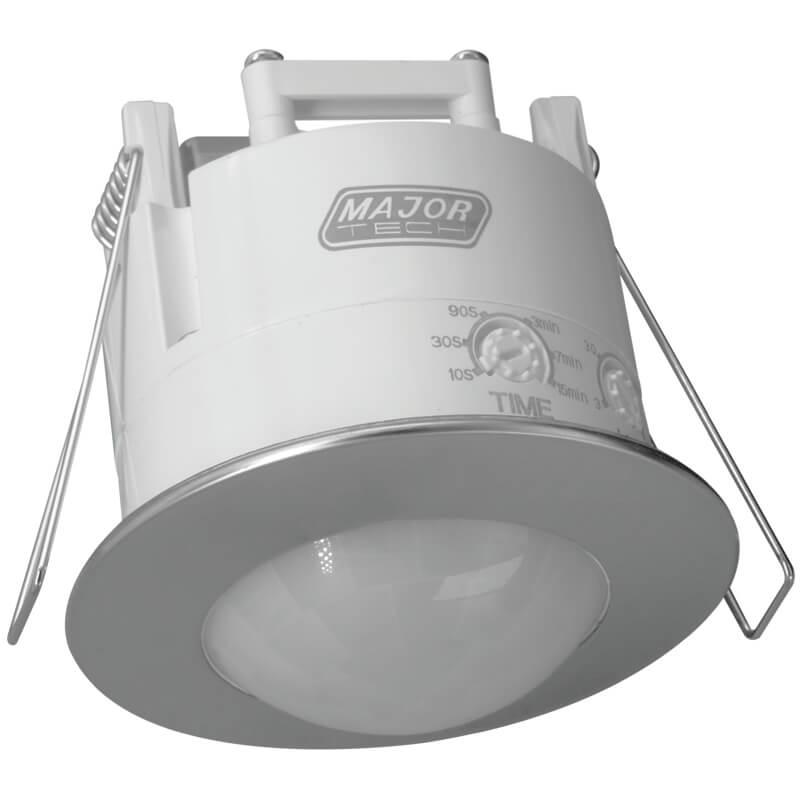

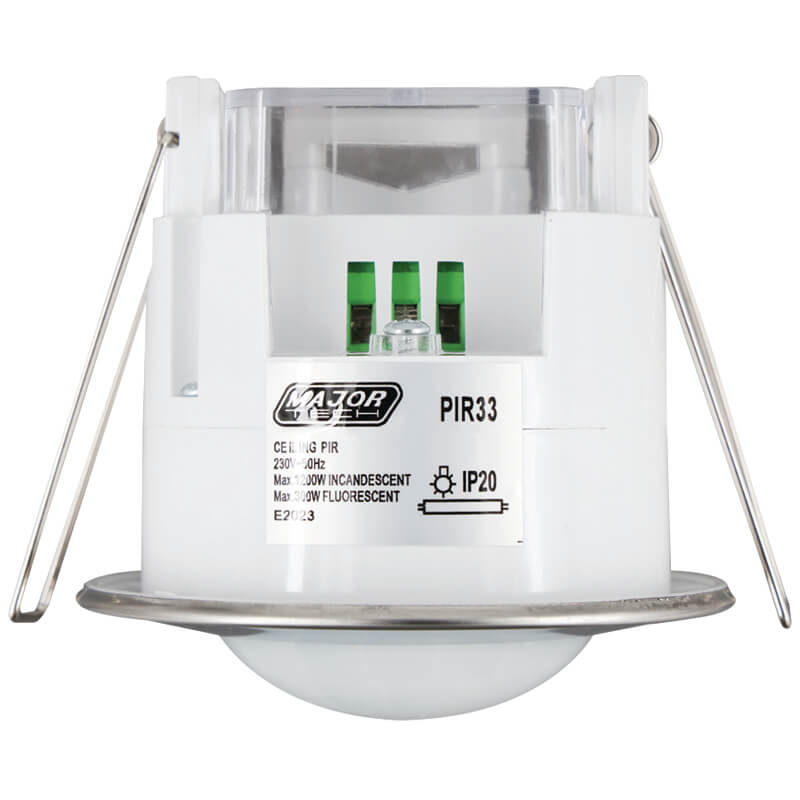

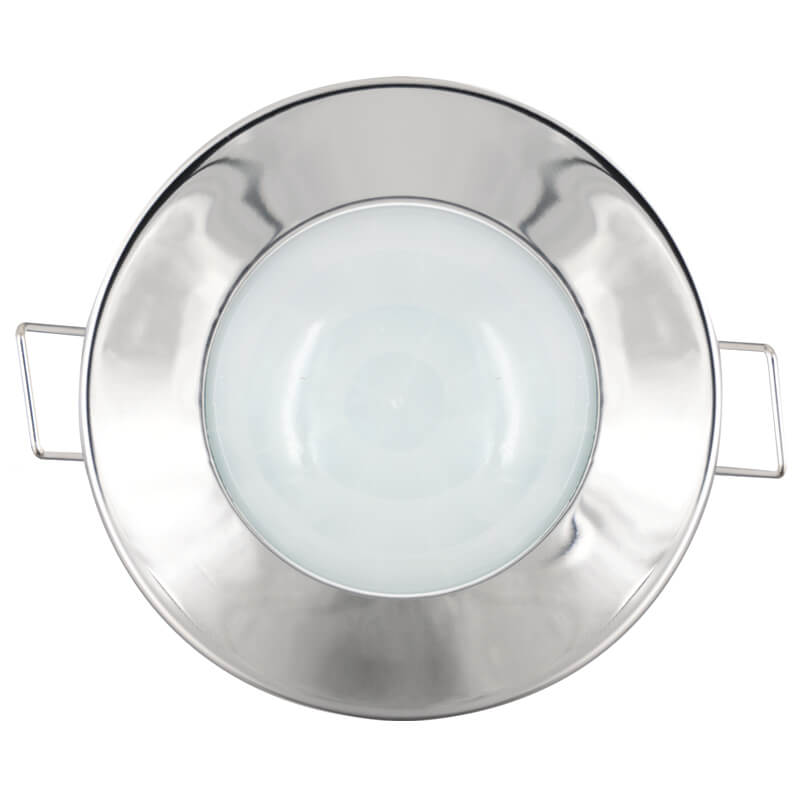

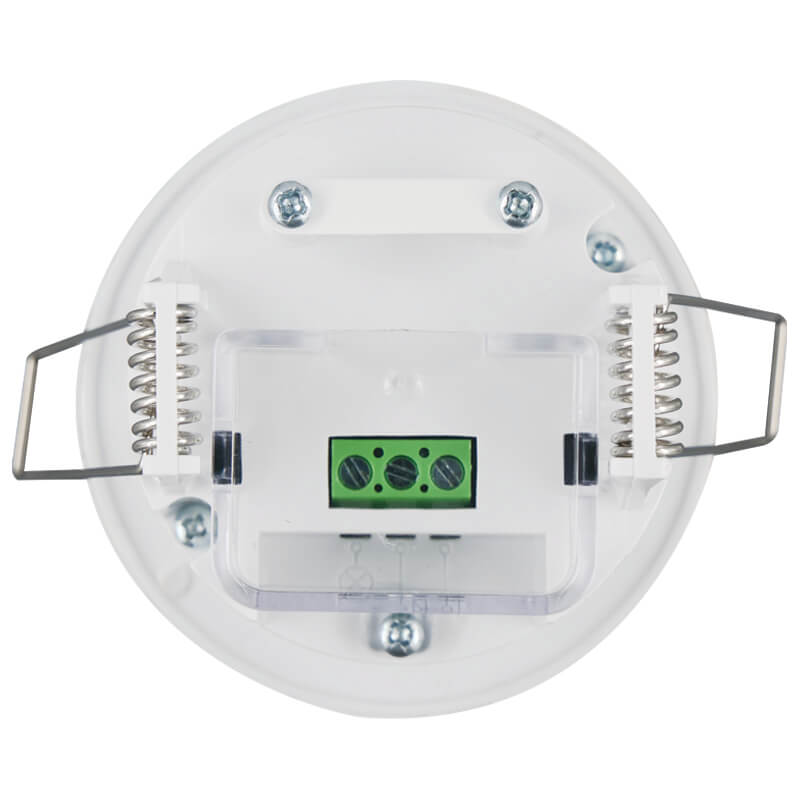

Major Tech 360° PIR Motion Sensor - IP20 | PIR33

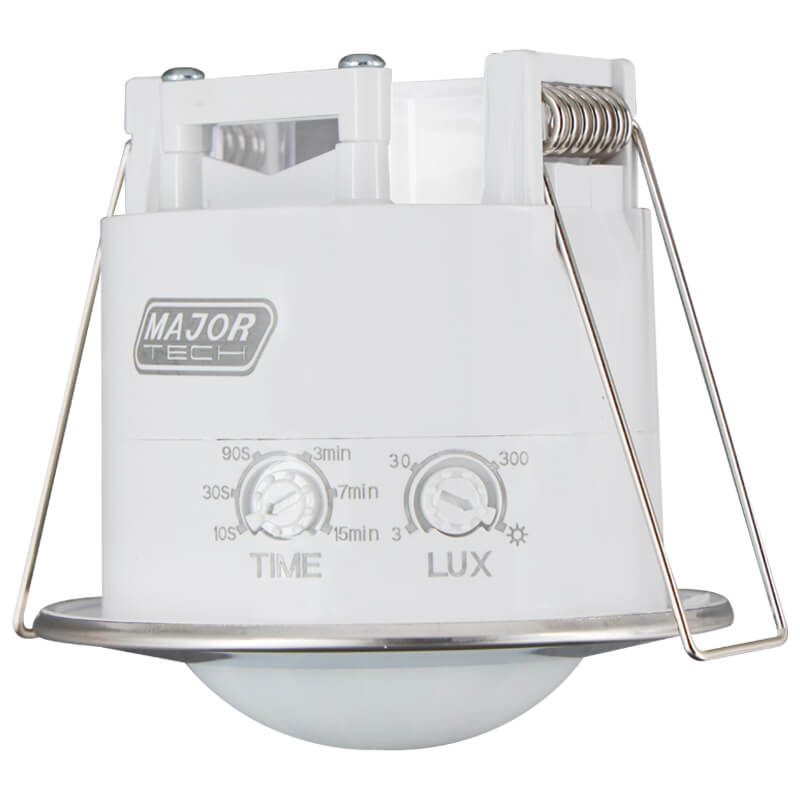

DetailsThe PIR33 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and adjustable settings for time and Lux level, easily integrated into new or existing installations. With an IP20 rating, the sensor is intended for indoor installations. Installation must be done by a qualified electrician.
Application:
- Major Tech PIR Sensor is ideal for homes, offices and hotels
- The main applications include corridors, pathways, bathrooms and lobbies
Specifications
Specifications:| Function | Range |
| Detection Area | 360° |
| Detection Distance | 6m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light |
|
| Installation Height | 2.2m - 4m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
1200W 600W |
| Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
| Hole Cut Out Size | Ø64mm |
| Power Consumption |
|
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP20 (Indoor installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: PIR33
Brand
Major Tech
Title
Major Tech 360° PIR Motion Sensor - IP20 | PIR33
