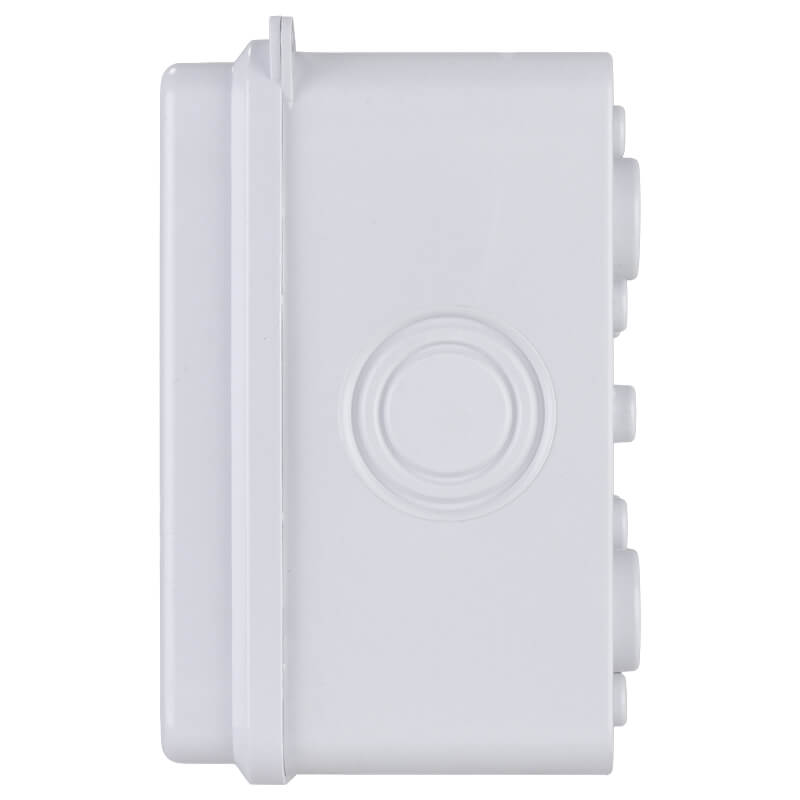

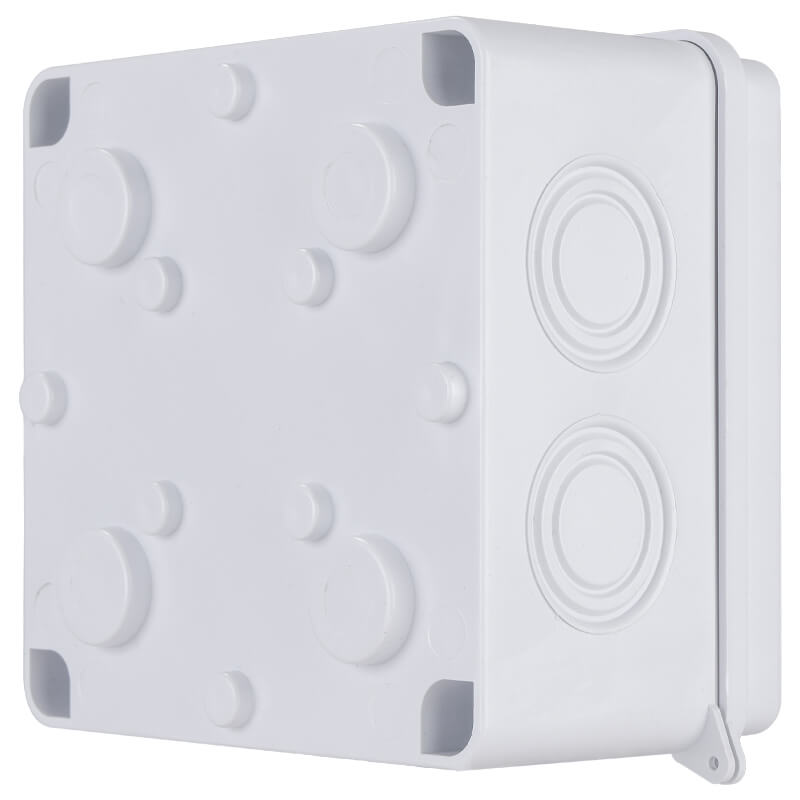

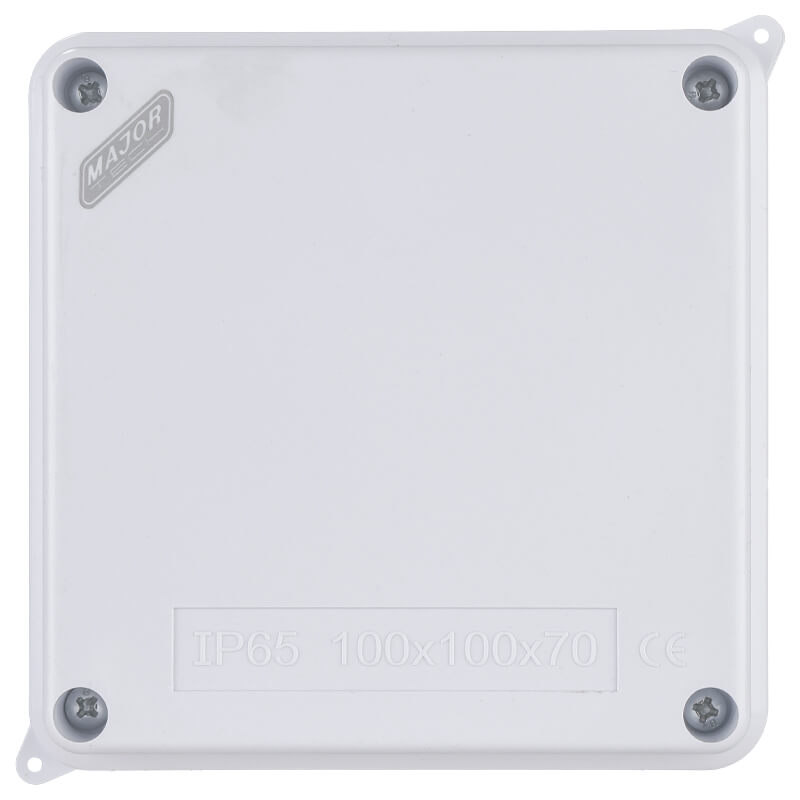

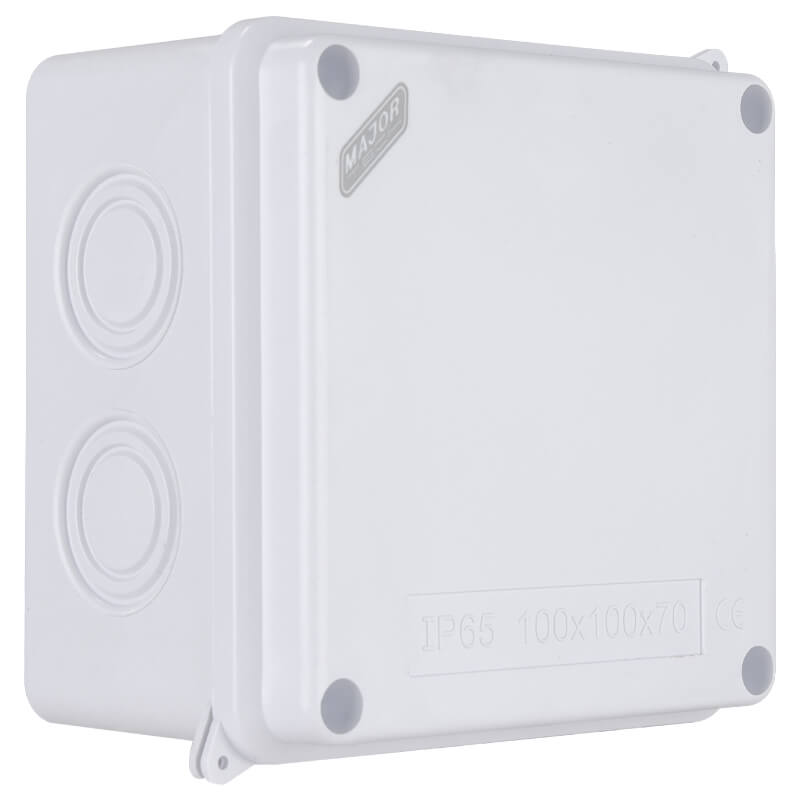

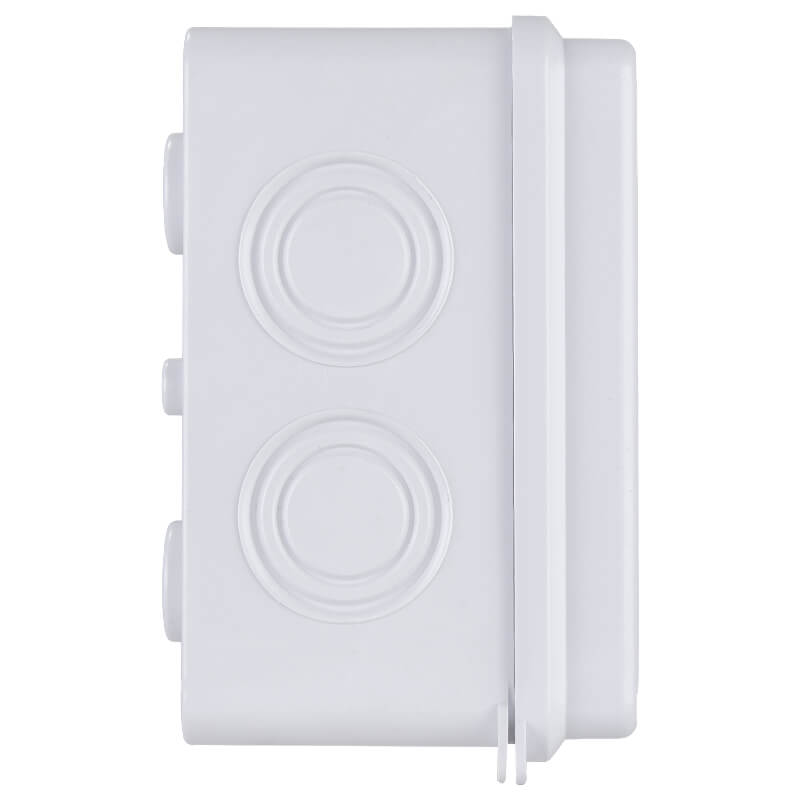

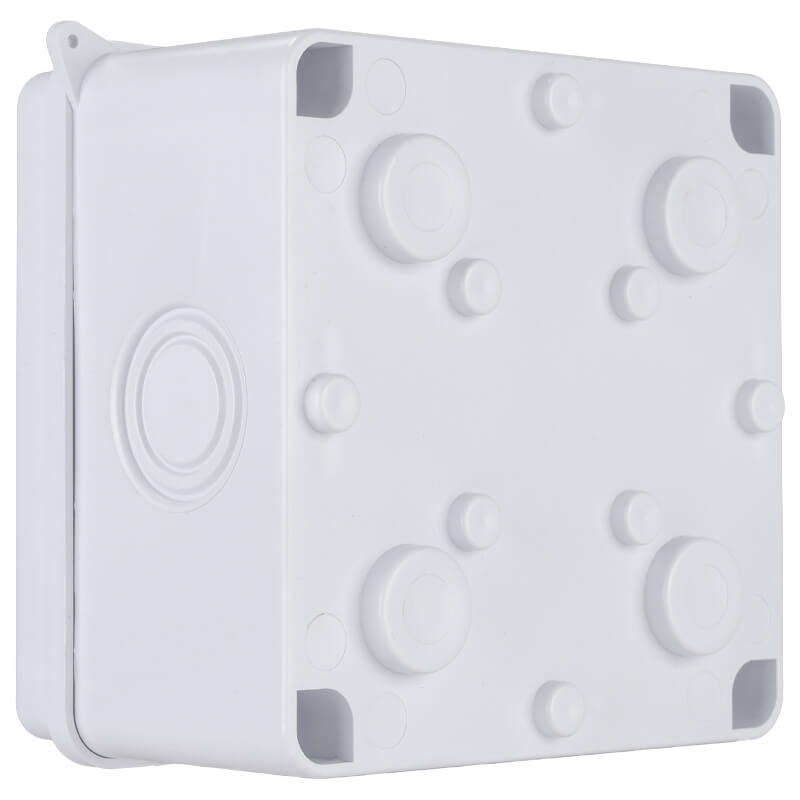

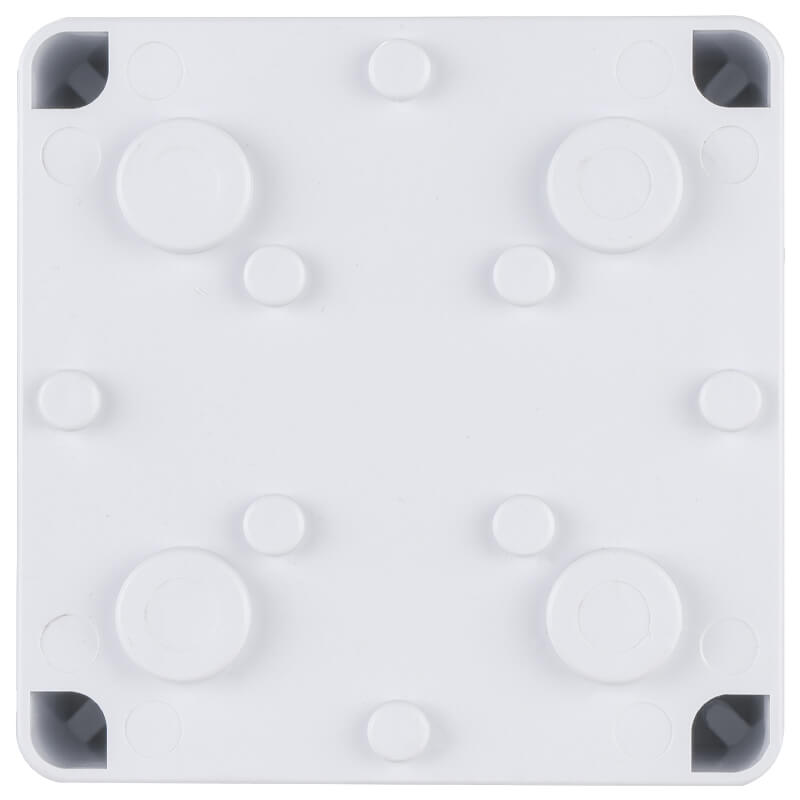

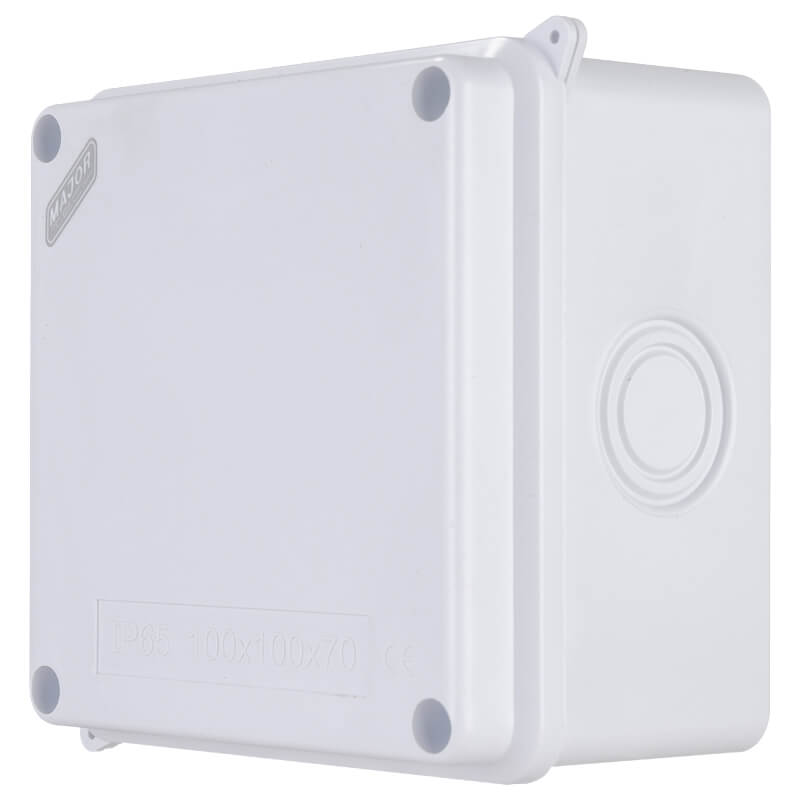

Major Tech IP65 Junction Boxes with Knock Outs (100mm x 100mm x 70mm) | VJ10107G
DetailsThe VJ10107G is a high-quality square electrical junction box, measuring 100 x 100 x 70mm, with an IP65 ingress protection rating, making it suitable for indoor and light outdoor applications. Designed with multiple pre-formed knockouts in various sizes, it offers flexible cable entry options for easier installation. Constructed from non-flammable, high-grade ABS plastic, the VJ10107G is both durable and lightweight. It features an IK08 impact resistance rating, ensuring protection against mechanical impacts in demanding environments. The product complies with international standards IEC 60529 and IEC 60670, and holds multiple certifications including CE, RoHS, HF test, IK test, and is manufactured under the ISO 9001 quality management system.
Specifications
Specifications:| Function | Range |
| IP Rating | IP65 |
| Shape | Square |
| Size | 100 x 100 x 70mm |
| Holes | 7 |
| Multiple Knock-Out Hole Size | 1x20mm & 1x28mm per hole |
| IK Rating | IK08 |
| Material | High quality ABS plastic (Non-Flammable) |
| Ambient Temperature | -5°C to 40°C |
| Storage Temperature | 40°C to 75°C max. 95% humidity |
| Standards | IEC 60529 & IEC 60670 |
| Approvals | CE, RoHS, HF test and IK test + ISO 9001 |
Supplier SKU: VJ10107G
