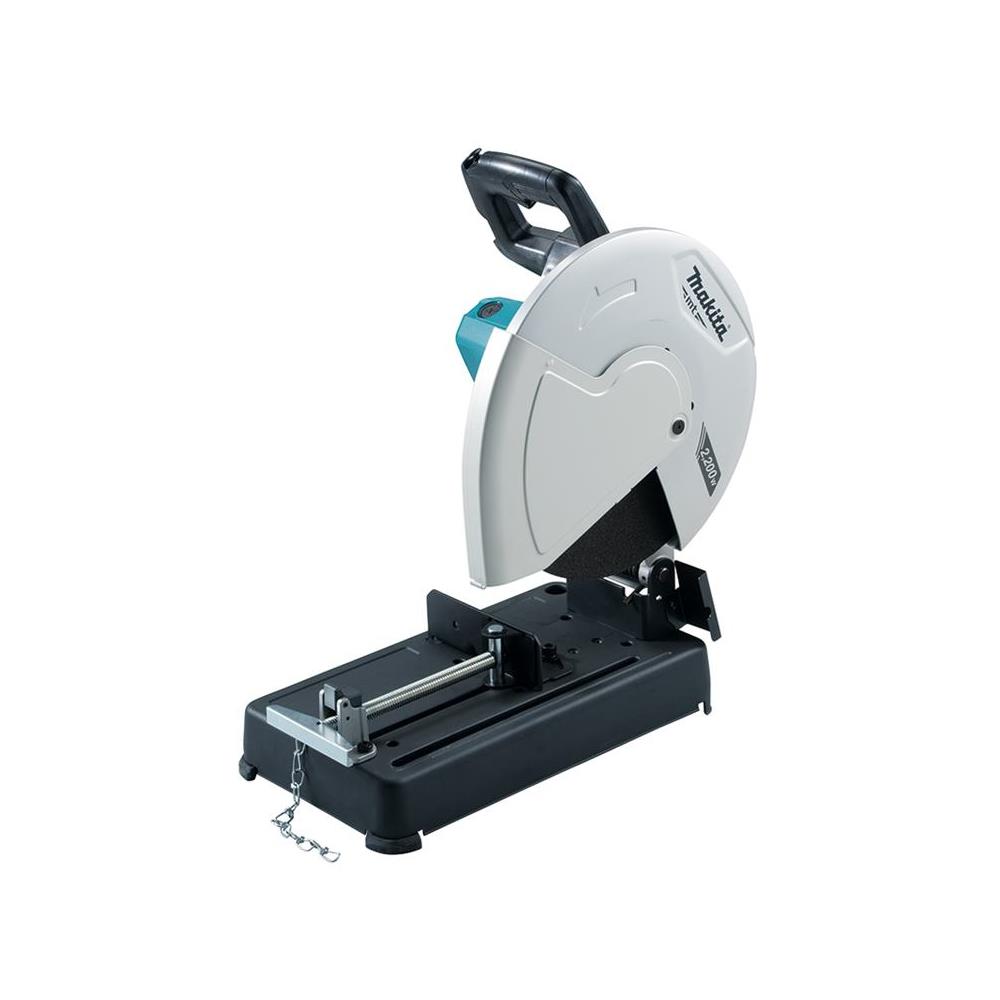

M2402B Cut-Off Saw

• 2,200W continuous rating input (for high voltage areas only); The same high value as the competing models is achieved by changing the armature winding and by redesigning the air-cooling
• High performance and durability at less expense
• Powerful 2,200W motor delivers 3,900RPM for superior performance and durability
• Large cutting capacity; Cuts up to 127mm round and 102mm x 194mm rectangular
• Adjustable spark guard designed to divert sparks
• The two-stage lock-off power button for operator convenience (country-specific)
• The adjustable guide plate provides three angle settings up to 45° L/R
• Chain secures cutting head in the down position for transport and storage
• A large ergonomic handle (horizontal) allows for smooth saw head operation with reduced fatigue
• The carrying handle is ergonomically positioned to provide a balanced weight distribution for increased comfort while transporting the saw
• Lightweight for increased job site portability
• Quick release vice for increased operator convenience
• Onboard hex wrench for fast and easy blade changes and keeping it from lost
• Spindle lock for easy wheel changes
• Externally accessible brushes for easy serviceability
• Double insulated

Specifications

• Continuous rating input: 2,200W
• Wheel Diameter: 355mm
• Wheel Hole Diameter: 25.4mm
• Max Wheel Thickness: 3mm
• No Load Speed (RPM): 3,800
• Capacity at 90° Round: 127mm
• Rectangular: 102 x 194mm
• Rectangular: 70 x 233mm
• Square: 119 x 119mm
• Triangular: 137 x 137 x 10mm
• Capacity at 45° Round: 127 mm (5?)
• Rectangular: 115 x 103mm
• Triangular: 100 x 100 x 10mm
