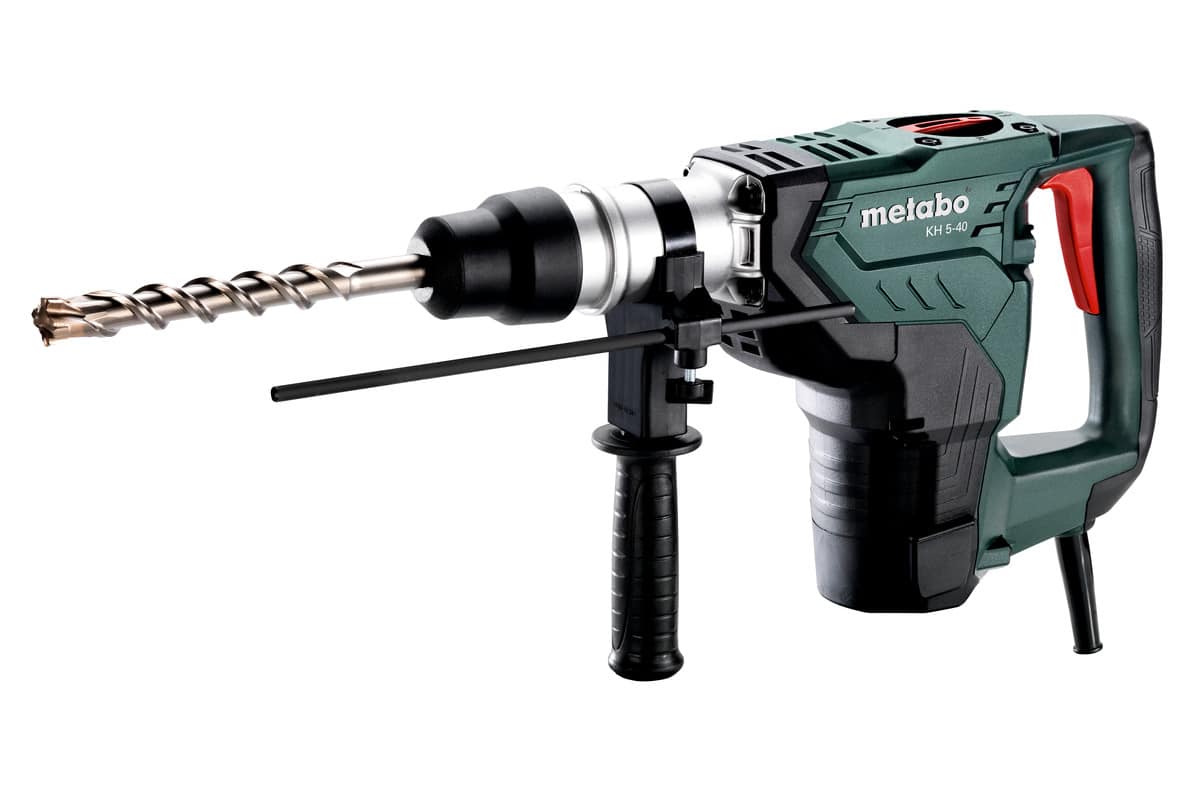

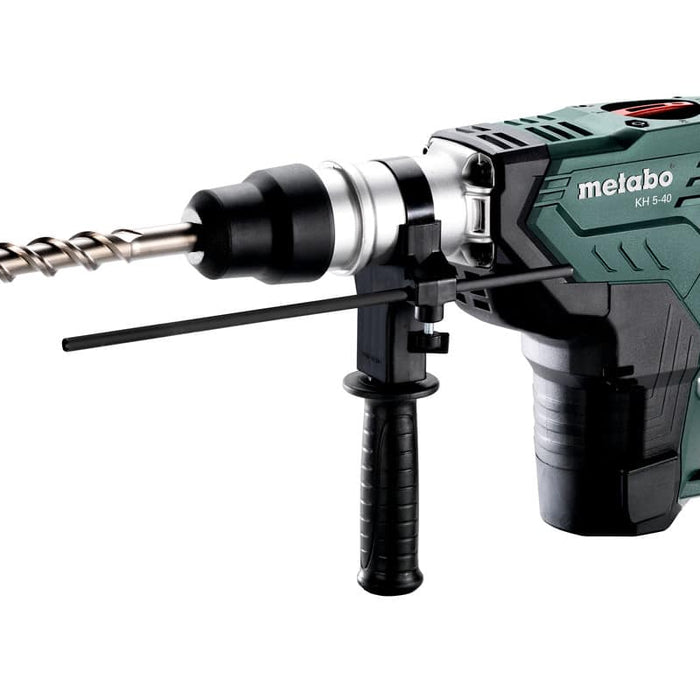

KH 5-40 Combination hammer (600763500)

Plastic Carry Case

Combination hammer with 2 functions: hammer drilling and chiseling
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
Robust die-cast aluminium gear housing for optimum heat dissipation and long service life

Technical data

Characteristics

Max. single blow energy (EPTA) 7.1 J
Maximum impact rate 2800 bpm
Rated input power 1100 W
Drill-Ø concrete with hammer drills 40 mm
Drill-Ø masonry with core bits 105 mm
No-load speed 620 rpm
Bit retainer SDS-max
Collar diameter 61 mm
Weight (without power cable) 7.1 kg
Cable length 4 m

Vibration

Hammer drilling concrete 16.5 m/s²
Uncertainty of measurement K 1.5 m/s²
Chiseling 13.3 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise emission

Sound pressure level 95 dB(A)
Sound power level (LwA) 106 dB(A)
Uncertainty of measurement K 3 dB(A)

Scope of delivery

rubber-coated side handle
Drilling depth guide
Lubricant for tool shank end
Plastic carry case
