FEATURES
• Wide 5G/LTE Frequency Support - Covers 698~960MHz, 1710~2700MHz and 3300~4000MHz bands
• Omnidirectional 360° Coverage - Receives signals from all directions for improved connectivity
• MIMO Technology - Dual-antenna design enhances signal stability and data performance
• Integrated 5m SMA Cables - Two low-loss cables with SMA male connectors for simple installation
• Durable Outdoor Construction - UV-resistant radome with lightning protection for reliable operation
• Pole Mount Compatible - Designed to mount on poles from ø38~ø52mm for flexible deployment
SPECIFICATIONS
FREQUENCY RANGE
• 698~960MHz
• 1710~2700MHz
• 3300~4000MHz
GAIN
• 2.5dBi
• 5dBi
• 5dBi
VSWR
• ≤2.5
• ≤2.0
• ≤2.0
POLARIZATION
• Vertical
HORIZONTAL BEAMWIDTH
• 360°
VERTICAL BEAMWIDTH
• 85°
• 60°
• 58°
INPUT IMPEDANCE
• 50Ω
MAX. INPUT POWER
• 100W
LIGHTNING PROTECTION
• DC Ground
CONNECTOR
• 2× 5m Low-Loss Cables with SMA Male Plugs
DIMENSIONS
• ø63 × 380mm
WEIGHT
• 1kg
RADOME MATERIAL
• UV-PVC
OPERATING TEMPERATURE
• -40~65°C
MOUNTING POLE
• ø38~ø52mm
Brand
OTTO Wireless
Title

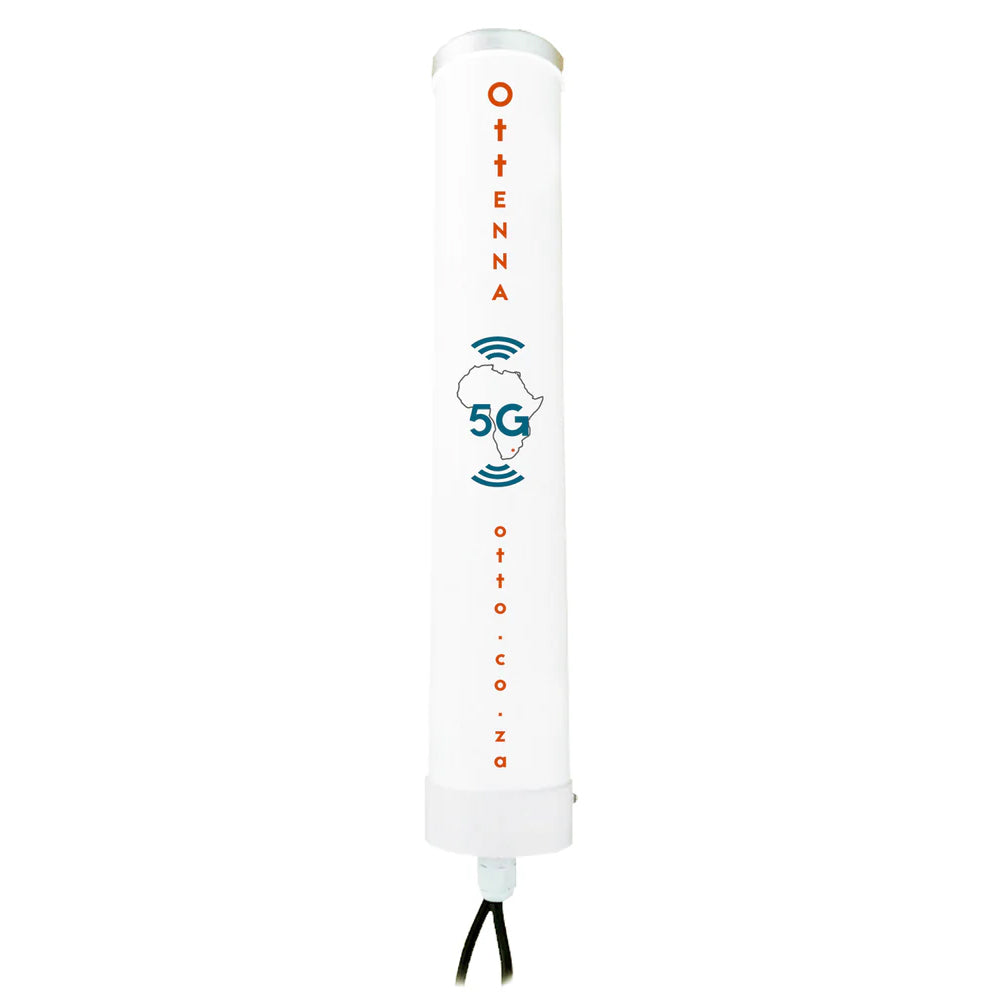

ANTENNA 5G MIMO OMNI 5DB 5MT 2XSMA - NET-5G-MO-5
