Pliers for Electrical Installation
6 functions in one pair of pliers
Multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire end sleeves
Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm²
Crimp die for wire end sleeves 0.5 – 2.5 mm²
Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm
Slim dimensions for easy access
Bolted joint: precise, zero backlash operation of pliers
High-grade special tool steel, forged, multi stage oil-hardened
Model:
In case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
The intelligent latching mechanism enables you to “grip” without opening the pliers. The cutting edge remains closed and protected.
| Head | ||
|---|---|---|
| Pliers | chrome plated | |
| Handles | insulated with multi-component grips, VDE-tested | |
| Insulation standard | IEC 60900 DIN EN 60900 | |
 |
Cutting capacity copper cable, multiple-stranded (diameter) | 15 Ø mm |
|
Cutting capacity copper cable, multiple-stranded | 50 mm² |
| Stripping capacity for cross-sections | 0,75 – 1,5 + 2,5 mm² | |
| Capacity in square millimetres | 0,5 – 2,5 mm² | |
| AWG | 1/0 | |
 |
Length | 200 mm |
 |
Net weight | 280 g |
Brand
Knipex
Title

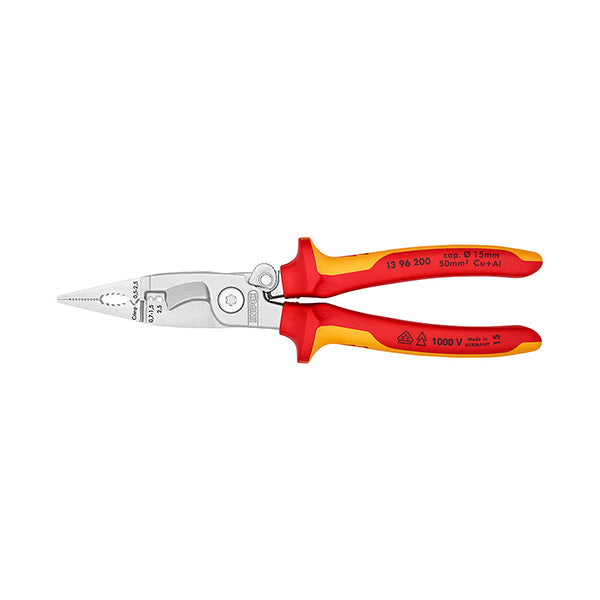

Knipex MULTIPLIER - 7 IN 1 SPRING LOADED - KPX1396200
