FEATURES
• AC750 Dual-Band Wi-Fi - Delivers combined wireless speeds of up to 750Mbps (433Mbps on 5.0GHz and 300Mbps on 2.4GHz) for smooth streaming and everyday connectivity
• Broader Wi-Fi Coverage - Two high-gain external antennas provide stable omnidirectional signals for stronger coverage throughout your home
• Multi-Mode Operation - Supports Router Mode, Access Point Mode and Range Extender Mode to suit different networking scenarios
• Easy Setup - Intuitive web interface guides you through the installation process in just a few minutes
• Advanced Network Management - Features such as Parental Controls, QoS and Guest Network help manage and secure your home network
• IPTV and IPv6 Support - Compatible with IPTV services and the latest IPv6 internet protocol for modern network environments
SPECIFICATIONS
WIRELESS
• Signal Rate:
- 300Mbps on 2.4GHz
- 433Mbps on 5.0GHz
• Compatible with IEEE 802.11ac/a/b/g/n standards
RECEPTION SENSITIVITY
2.4GHz
• 11g 6Mbps: -94dBm
• 11g 54Mbps: -77dBm
• 11n HT40 MCS7: -73dBm
• 11n HT20 MCS7: -76dBm
5.0GHz
• 11a 6Mbps: -93dBm
• 11a 54Mbps: -75dBm
• 11ac VHT20 MCS8: -70dBm
• 11ac VHT40 MCS9: -65dBm
• 11ac VHT80 MCS9: -62dBm
TRANSMISSION POWER
• 2.4GHz: <20dBm (EIRP)
• 5.0GHz: <23dBm (EIRP)
WIRELESS SECURITY
• WPA-PSK
• WPA2-PSK
OPERATION MODES
• Router Mode
• Range Extender Mode
• Access Point Mode
WAN TYPE
• Dynamic IP
• Static IP
• PPPoE
• L2TP
• PPTP
MANAGEMENT
• Access Control
• Local Management
• Remote Management
DHCP
• Server
• DHCP Client List
NAT FORWARDING
• Port Forwarding
• Port Triggering
• UPnP
• DMZ
FIREWALL SECURITY
• SPI Firewall
• IP and MAC Address Binding
GUEST NETWORK
• 2.4GHz Guest Network
• 5.0GHz Guest Network
HARDWARE
• Dimensions (W × D × H): 114 × 94 × 26mm
• Interfaces:
- 1× 10/100Mbps WAN Port
- 2× 10/100Mbps LAN Ports
• Button: Reset / WPS Button
• Antenna Type: 2× 5dBi Fixed Omnidirectional Antennas
ENVIRONMENT
• Operating Temperature: 0~40°C
• Operating Humidity: 10~90% RH (Non-Condensing)
• Storage Humidity: 5~90% RH (Non-Condensing)
Brand
Mercusys
Title

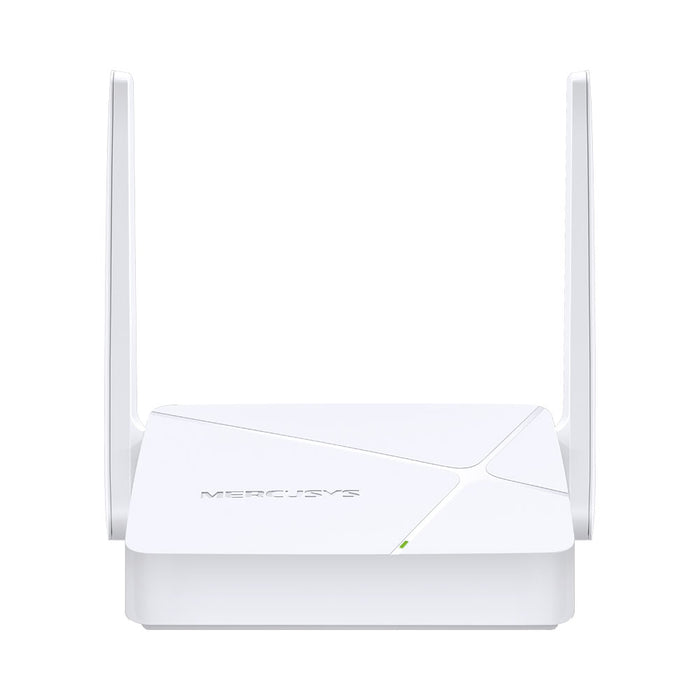

MERCUSYS AC750 WIRELESS DUAL BAND ROUTER - NET-MER-MR20
