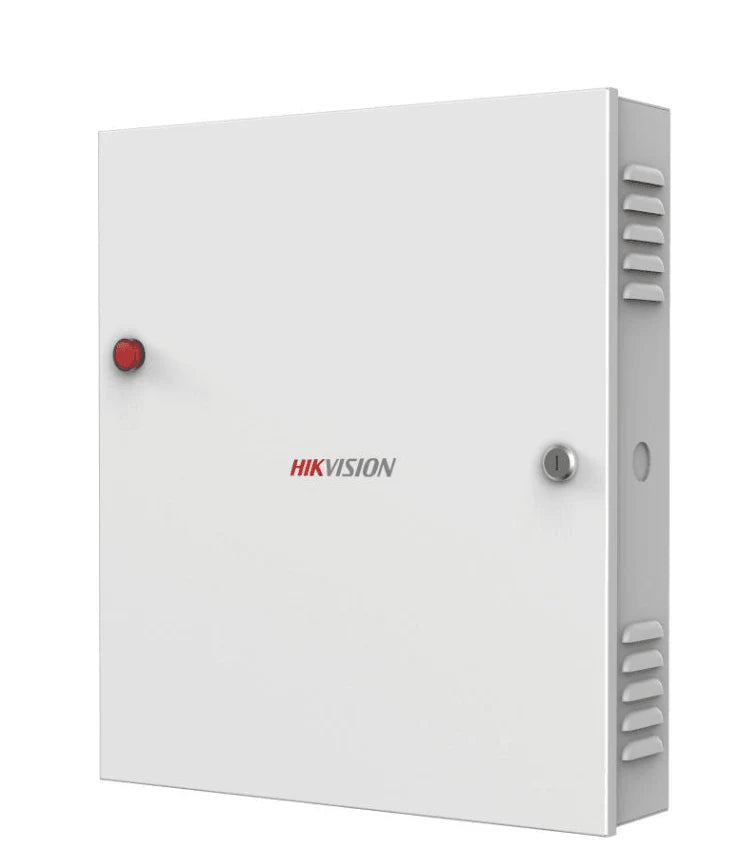

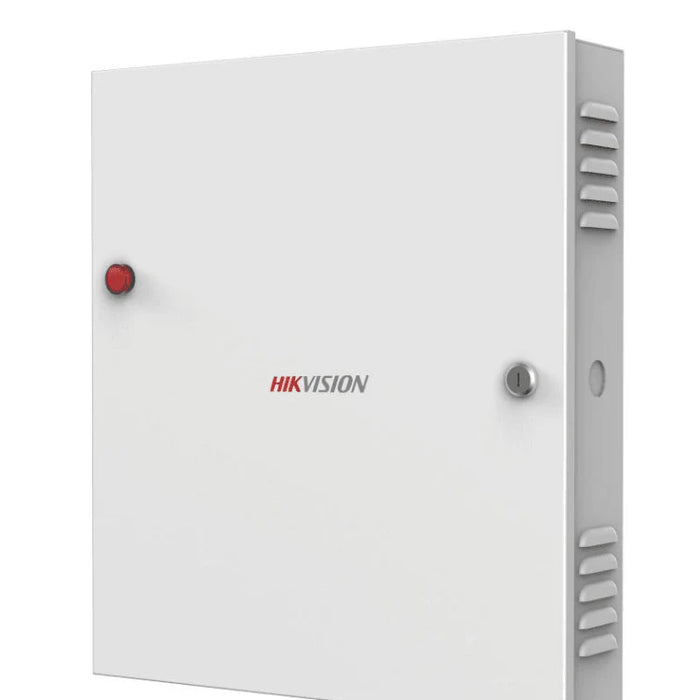

ACCESS Four Door Controller
The HIKVISION FOUR DOOR ACCESS CONTROLLER boasts UL294 Standard qualification and supports battery access. With 100,000 card and 300,000 event storage, it allows for seamless and secure access control across four doors. Communication options include TCP/TP, ISUP5.0, and RS-485, with support for ISAPI and OSDP. Its alarm input/output and event upload capabilities make it a reliable and efficient choice for any system. Additionally, it features both RS-485 and Wiegand interfaces for card reader access.
FEATURES:
- 100,000 cards and 300,000 events storage
- Communication via TCP/TP, ISUP5.0 and RS-485
- ISAPI, OSDP supported
- 4 doors access control
- Alarm input/output and alarm event upload
- RS-485 interface and Wiegand interface for accessing card reader
- UL294 Standard Qualified
- Supports battery access
SPECS:
- Interface
- Lock Control4
- Exit Button4
- Door Contact Input4
- Alarm Input4
- Alarm Output4
- TAMPER1
- General
- Power Supply100 ~ 240 VAC
-
Power Consumption
≤4 w (without load)
≤ 100 w (with load)
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Working Humidity 10% to 90% (no condensing)
- Dimensions 398 mm × 474 mm × 100 mm (15.7" × 18.7" × 3.9")
Brand
Hikvision
Title
Hikvision ACCESS Four Door Controller - LK491-4
