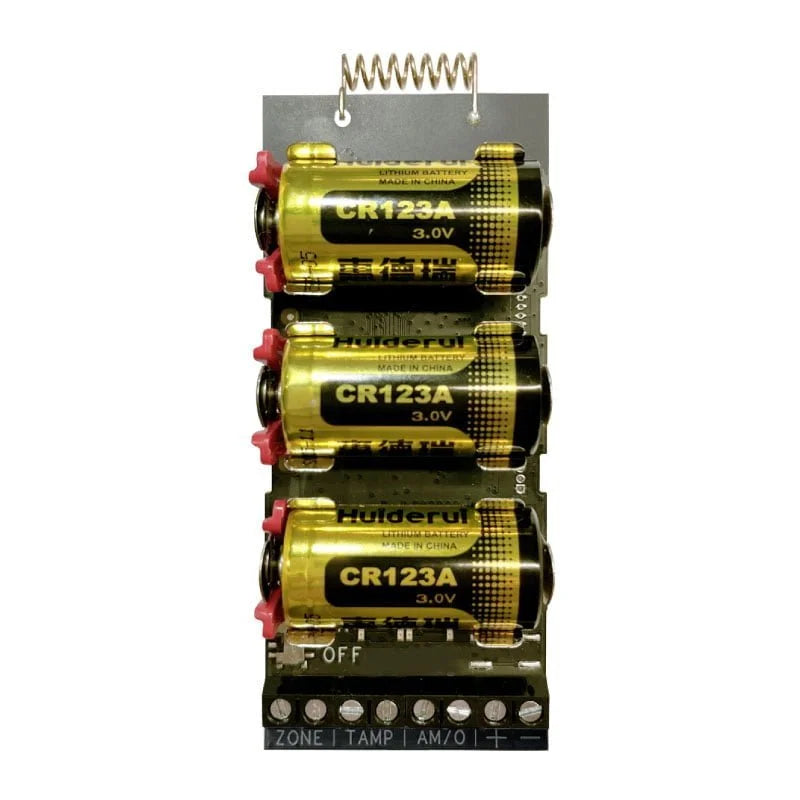

Hikvision AX PRO Transmitter features a single input and is used for the integration of wireless devices with wired inputs such as Optex and Takex PIR’s. The Transmitter includes a tamper input and PGM which can be used as zone input or alarm output.
Hardware features |
|
| Serial port | 1 |
| Power switch | 1 |
| Alarm input | 1 Alarm, 1 Tamper |
| Alarm output | 1 PGM, AM/Output |
| 3.3v Output | 1, up to 10mA |
Electrical characteristics |
|
| Power supply | 3 CR123 |
| Operation humidity | 10% to 90% |
| Operation temperature | –10°C to 55°C |
Power consumption |
|
| Quiescent current: | 40.29 uA |
| Max current: | 47.85 mA |
| Voltage: | 3 VDC |
| Battery life span | Up to 5 years (standby time) |
Wireless transmission |
|
| RF frequency | 868 MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 1700 m |
Display |
|
| Indicator | 3: Alarm/Tamper(Red), Fault(Amber), Signal Strength(Green/Red) |
General |
|
| Installation method | Put inside wireless ready detector |
| Dimension | (WxHxD) 102 x 41 x 20mm |
| Weight | 35g (without battery), 90g (with battery) |
Brand
Hikvision
Title
Hikvision AX-PRO Wireless Universal Tx - CP406
