INTERCOM 1-1 Video Kit
PRODUCT DESCRIPTION
Display & Graphics
- Display Screen Type LCD
- Screen Resolution 1024 x 600
- Screen Size 7"
- Touchscreen Yes
Camera
- Camera Resolution 2 Megapixel
- Horizontal Viewing Angle 180°
- Vertical Viewing Angle 96°
Power Description
- Input Voltage 12 V DC
- Power Consumption: 10 W
- Working Temperature: -40° C to +60° C (-40° F to 140° F)
- Working Humidity: 10% to 95%
- Dimension (L X W X D): 200 mm × 140 mm × 15.1 mm
- Weight: 683 g (with packaging) 355 g (without packaging)
- IP Protection Level: IP65
- Memory: 128 MB
- Dimensions(L × W × H): 98 mm × 99.8 mm × 43.9 mm
Audio Parameters:
- Audio Compression Rate: 64 Kbps
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
Video Parameters:
- Video Compression Standard: H.264
- Resolution: Main Stream: 1920 × 1080,Sub Stream: 720 × 480
Audio Parameters:
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )
- Audio Compression Standard: G.711 U
- Audio Compression Rate: 64 Kbps
- Audio Quality: Noise Suppression and Echo Cancellation
Alarm Parameters:
- Alarm Input: Tampering Alarm System
Parameters:
- Operation System: Embedded Linux operation system
- Device Interfaces: I/O
- Input: 4 I/O
- Output: 2 System
Parameters:
- Processor: Embedded MCU Processor
- Operation System: Embedded Linux Operation System
Network Parameters:
- Network Protocol: TCP/IP, SIP, RTSP
- Network Parameters: Ethernet:10/100 Mbps Self-Adaptive Ethernet Network
- Protocol: TCP/IP, RTSP
Light Supplement:
- Light Supplement Mode: IR Supplement
- Application/Usage House

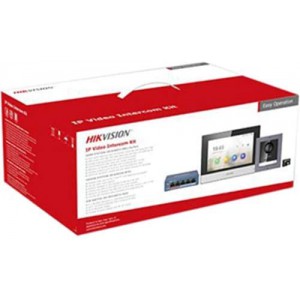

Package Contents
- 1 x DS-KD8003-IME1/Surface
- 1 x DS-KH6320-WTE1
- 1 x 4 Port Standard PoE Switch
- 1 x 16GB TF Card European Power Supply Adaptor
Brand
Hikvision
Title
Hikvision INTERCOM 1-1 Video Kit - LK499
