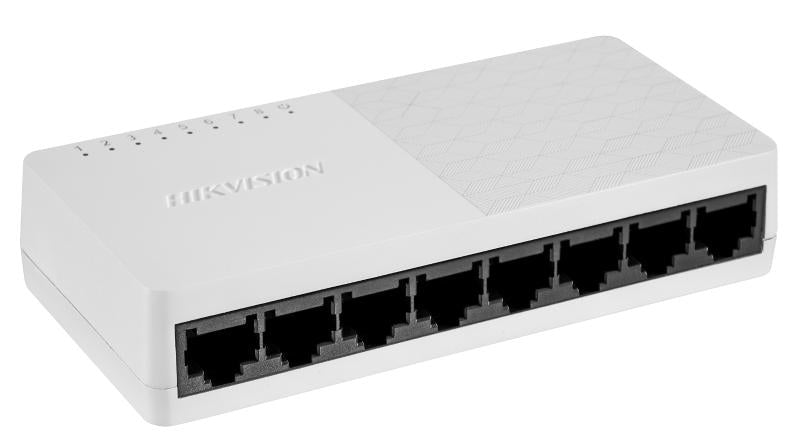

8-Port Gigabit Plastic Switch
- 8 x 10/100/1000 Mbps ethernet port
- Supports MDI/MDIX
- Store-and-forward switching
- Supports MAC address auto-learning and aging
- Simple, compact body design
- Supports desktop and wall-mounting installation
-
Plug & play, easy to use.
- General
- ShellABS
- Net Weight0.093 kg (0.205 lb)
- Dimensions (W × H × D)124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply5 VDC, 1 A
- Installation ModeDesk-Mounted
- Max. Power Consumption5 W
- Surge Protection2 KV
- Network Parameters
- Ports8 × Gigabit RJ45 port
- MAC Address Table4 K
- Switching Capacity16 Gbps
- Packet Forwarding Rate11.90 Mpps
- Internal Cache1.5 Mbits
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Brand
Hikvision
Title
Hikvision Switch DS-3E0508D-O 8P GB - NW293
