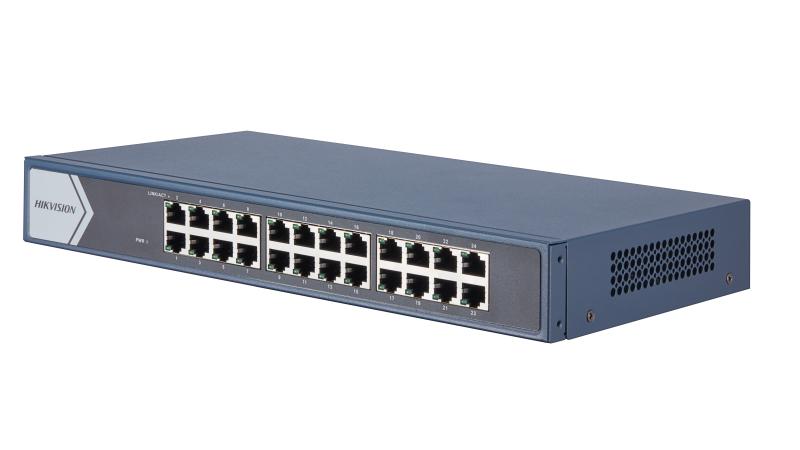

24 Port Gigabit Unmanaged Switch
- 24 x Gigabit Ethernet port
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
-
Fan-free design with high reliability
- General
- ShellMetal material, fan-free design
- Net Weight1.60 kg (3.50 lb)
- Gross Weight2.47 kg (5.44 lb)
- Dimensions (W × H × D)335.0 mm × 44.5 mm × 175.8 mm (13.2'' × 1.8'' × 6.9'')
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature–40˚C to 85˚C (–40˚F to 185˚F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply220 VAC, 50/60 Hz, Max. 0.7 A
- Installation ModeMetal material, fan-free design
- Surge Protection6 kV
- Network Parameters
- Ports24 × Gigabit RJ45 port
- MAC Address Table8 K
- Switching Capacity48 Gbps
- Packet Forwarding Rate35.72 Mpps
- Internal Cache4.10 Mbits
- Approval
- EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Brand
Hikvision
Title
Hikvision Switch DS-3E0524-E 24P GB - NW293-3
