FEATURES
• 1/1.7" Progressive Scan CMOS
• 20fps@12MP(4000*3000)
• Triple Streams
• Unique De-warping Image
• Support Camera & Software De-warping
• Low bitrate ,Excellent low light performance
• dWDR,3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP67
SPECIFICATIONS
Camera
Image Sensor1/1.7" Progressive Scan CMOS
Effective Pixels4000(H)×3000 (V)
Electronic Shutter1/5-1/20,000s
Min. illuminationColor:0.009Lux@(F1.2,AGC ON)
B/W:0Lux@(IR LED ON)
S/N Ratio 55dB
Day/NightICR
Wide Dynamic RangeDWDR
IR RangeUp to 15m
IR On/Off ControlAuto/ Manual
IR LEDs6pcs
Pan/Tilt/Rotation RangeN/A
Lens
Lens Type Fixed
IrisFixed Iris
Focal Length1.83mm
F NumberF2.4
Angle of View180°×180°
Focus ControlFixed
Video
CompressionH.265, H.264, MJPEG
Max. Resolution12MP(4000×3000)
Streaming Capability3 Streams
Stream /Stream1: 4000×3000 @20fps, 4096×2160/3840×2160/ 1920×1080/1280×720 @25/30fps
Frame RateStream2: D1/VGA/640×360/CIF @25/30fps
Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate ControlCBR/VBR
Bit RateStream1: 500kbps~16000kbps
Stream2: 100kbps~6000kbps
Stream3: 100kbps~3000kbps
Image EnhancementHLC / BLC / Anti-shake / Defog / DWDR
White BalanceSupport
Gain ControlAuto/Manual
Noise Reduction2D/3D DNR
Smart IRSupport
MirrorSupport
Aisle ModeSupport
Region of InterestSupport
Motion DetectionSupport
Privacy MaskingSupport
Audio
CompressionG.711 ,RAW_PCM
Bit Rate64kbps (G.711), 128kps (RAW_PCM)
Network
Protocols:IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
InteroperabilityONVIF, SDK, CGI
Streaming MethodUnicast
Max. User Access10 Users
Web Viewer
Smart PhoneIOS, Android
Intelligence
IVSPerimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad
Interface
Ethernet1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio1ch Input, 1ch Output, 1ch Built-in Mic
Alarm 1ch Input, 1ch Output
RS485N/A
CVBS OutputN/A
Reset ButtonSupport
StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G
Electrical
Power SupplyAC24V/DC12V/POE (IEEE 802.3af)
Power Consumption5W(IR LED OFF), 10.2W（IR LED ON）
Operating TemperatureStarting Temperature: -30°C ~ 60°C (-22°F ~ 140°F )
Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Operating HumidityLess than 90% RH
Ingress ProtectionIP67
CertificationsCE / FCC
CasingMetal
DimensionsΦ162×52.2mm
Net Weight700g
Brand
SUNELL SECURITY
Title

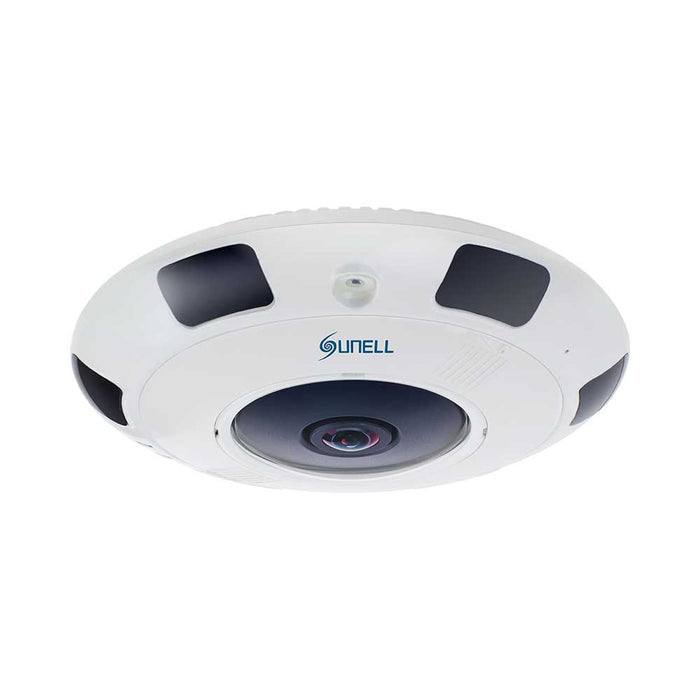

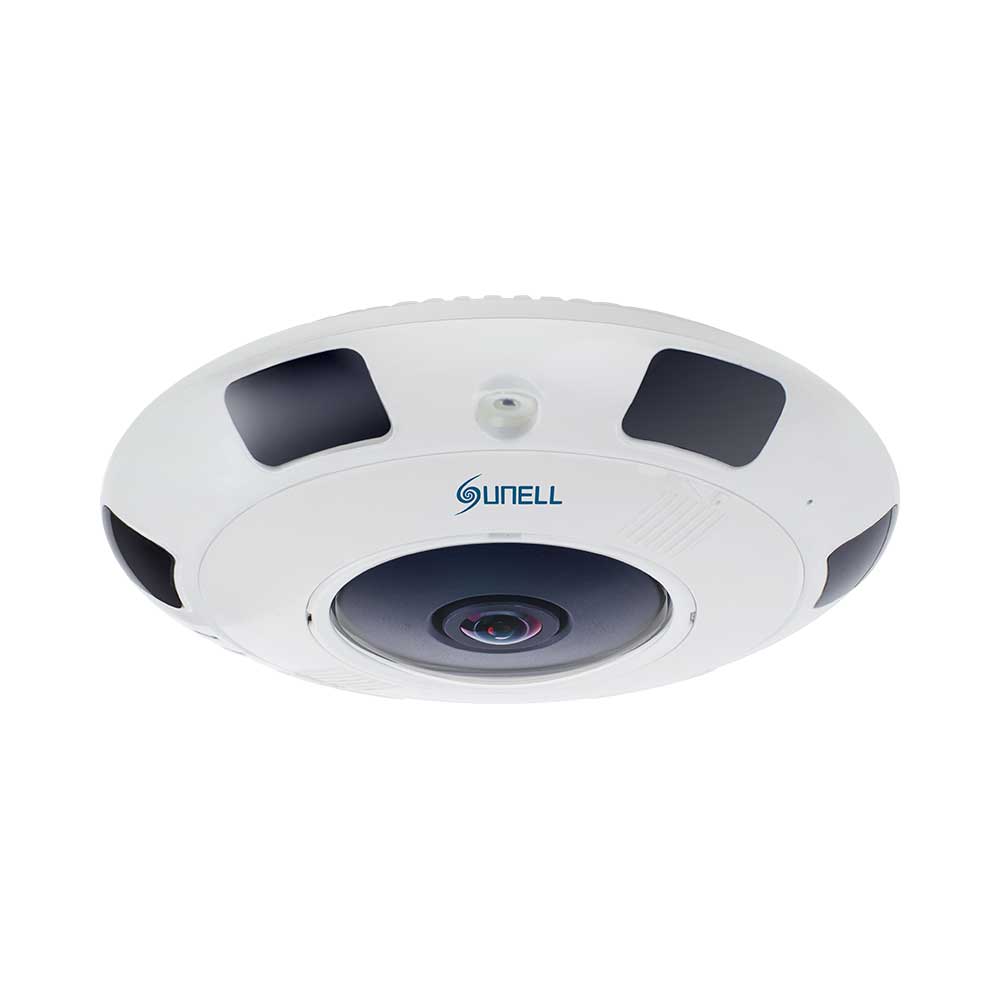

SUNELL IP FISHEYE 12MP IK10 4000X3000 POE - CAM-IPV57-80HDR-B
