FEATURES
• 1/2.8" Progressive Scan CMOS
• 8mm Lens
• 25fps/30fps@2MP(1920*1080)
• Triple Streams
• Support face, head shoulder, human body detection and capture
• High performance, up to 30 faces detection per frame
• Detecting and capture success rate 97% (depending on installation and angle)
• WDR, 3D DNR, ROI, Defog, HLC, Anti-shake
• Smart IR Up to 30m
• IP67
SPECIFICATIONS
Camera
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Effective Pixels: 1920(H)×1080(V)
• Electronic Shutter:1/5-1/20,000s
• Min. illumination: Color 0.01Lux @(F1.2,AGC ON), B/W 0Lux @(IR LED ON)
• S/N Ratio: 55dB
• Day/Night: ICR
• Wide Dynamic Range: WDR (120dB)
• IR Range: Up to 40m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 30pcs
• Pan/Tilt/Rotation Range: Pan 0˚~360˚, Tilt 0˚~90˚, Rotation 0˚~360˚
Lens
• Lens Type: Fixed
• Iris: Fixed Iris
• Focal Length: 6mm
• F Number: F2.0
• Angle of View: 52°
• Focus Control: Fixed
Video
• Compression: H.265, H.264, MJPEG
• Max. Resolution: 1080p (1920×1080)
• Streaming Capability: 3 Streams
• Stream1: 1920×1080/1280×720 @25/30fps
Frame Rate
• Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
• Stream3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
Bit Rate
• Stream1: 500kbps~12000kbps
• Stream2: 100kbps~6000kbps
• Stream3: 100kbps~6000kbps
• Image Enhancement: HLC / BLC / Anti-shake / Defog / WDR (120dB)
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Smart IR Support
• Mirror Support
• Aisle Mode: N/A
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking:Support
Audio
• Compression: N/A
• Bit Rate: N/A
• Network Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
• Interoperability: ONVIF, SDK, CGI
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer:
Intelligence
• IVSPerimeter, Single Virtual Fence, Double Virtual Fences, Multi Loiter, Converse.
Support alarm triggering by specified target types (face and human). Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
• Face Capture: Face, Head shoulder, Human body capture
• Capture Functions: Face detection performance: up to 30 faces per frame
Detectable face position: supports swing left and right from -45° to 45°, tilt up and down from -25° to 25
Interface
• Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio: N/A
• Alarm: N/A
• CVBS Output: N/A
• Reset Button: N/A
• Storage: N/A
Electrical
• Power Supply: DC12V/POE (IEEE 802.3af)
• Power Consumption: 2.5W (IR LED OFF), 5.5W (IR LED ON)
• Operating Temperature: -30°C ~ 50°C
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP67
• Certifications: CE / FCC
• Casing: Metal
• Dimensions: 232×74.8×80mm
• Net Weight: 700g
Brand
SUNELL SECURITY
Title

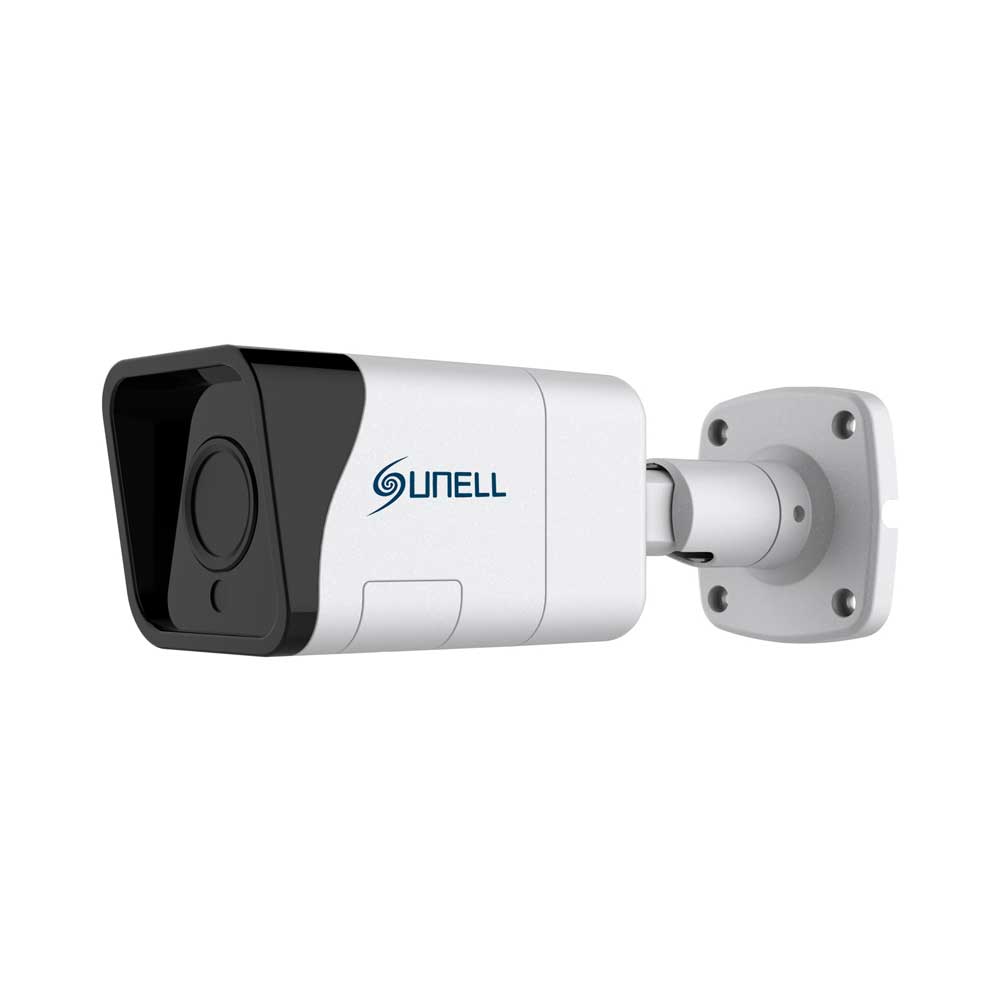

SUNELL IP MED BULLET 2MP, FACE REC, 8MM, POE - CAM-IPR5821BZDN-J
