FEATURES
• 1/1.7" Progressive Scan CMOS
• Motorized lens4.1~12.8mm
• 20fps@12MP(4000*3000)
• Triple Streams
• Smart IR Up to 80m
• Low bitrate, Excellent low light performance
• dWDR, 3D DNR, P-Iris
• ROI, Defog, HLC, Corridor mode, DIS
• IP67
SPECIFICATIONS
Camera
• Image Sensor: 1/1.7" Progressive Scan CMOS
• Effective Pixels: 4000(H)×3000 (V)
• Electronic Shutter: 1/5-1/20,000s
• Min. illumination: Color:0.009Lux@(F1.2,AGC ON), B/W: 0Lux@ (IR LED ON)
• S/N Ratio: 55dB
• Day/Night: ICR
• Wide Dynamic Range: DWDR
• IR Range: up to 80m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 8pcs
• Pan/Tilt/Rotation Range: Pan 0˚~360˚, Tilt 0˚~90˚, Rotation 0˚~360˚
Lens
• Lens Type: Motorized
• Iris: P-Iris
• Focal Length: 4.1~12.8mm
• F Number: F1.53
• Angle of View: 98°~ 34.5°
• Focus Control: Motorized
Video
• Compression: H.265, H.264, MJPEG
• Max. Resolution:12MP (4000×3000)
Streaming Capability: 3 Streams
• Stream1: 4000×3000 @20fps, 4096×2160/3840×2160/ 1920×1080/1280×720 @25/30fps
Frame Rate
• Stream2: D1/VGA/640×360/CIF @25/30fps
• Stream3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
Bit Rate
• Stream1: 500kbps~16000kbps
• Stream2: 100kbps~6000kbps
• Stream3: 100kbps~3000kbps
• Image Enhancement: HLC / BLC / Anti-shake / Defog / DWDR
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Mirror: Support
• Aisle Mode: Support
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking:Support
Audio
• Compression:G.711 ,RAW_PCM
• Bit Rate: 64kbps (G.711), 128kps (RAW_PCM)
• Network Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, • SNMP Interoperability: ONVIF, SDK, CGI
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer:
Intelligence
• IVSPerimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad
Interface
• Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio: 1ch Input, 1ch Output
• Alarm: 1ch Input, 1ch Output
• RS485: Support
• CVBS Output: Support
• Reset Button: Support
• Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
Electrical
• Power Supply: DC12V/POE (IEEE 802.3af)
• Power Consumption: 5W(IR LED OFF), 10W (IR LED ON)
• Operating Temperature: -30°C ~ 60°C
• Working Temperature: -40°C ~ 60°C
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP67 (IK10 optional)
• Certifications: CE / FCC
• Casing: Metal
• Dimensions: φ110×375.5mm
• Net Weight: 1680g
Brand
SUNELL SECURITY
Title

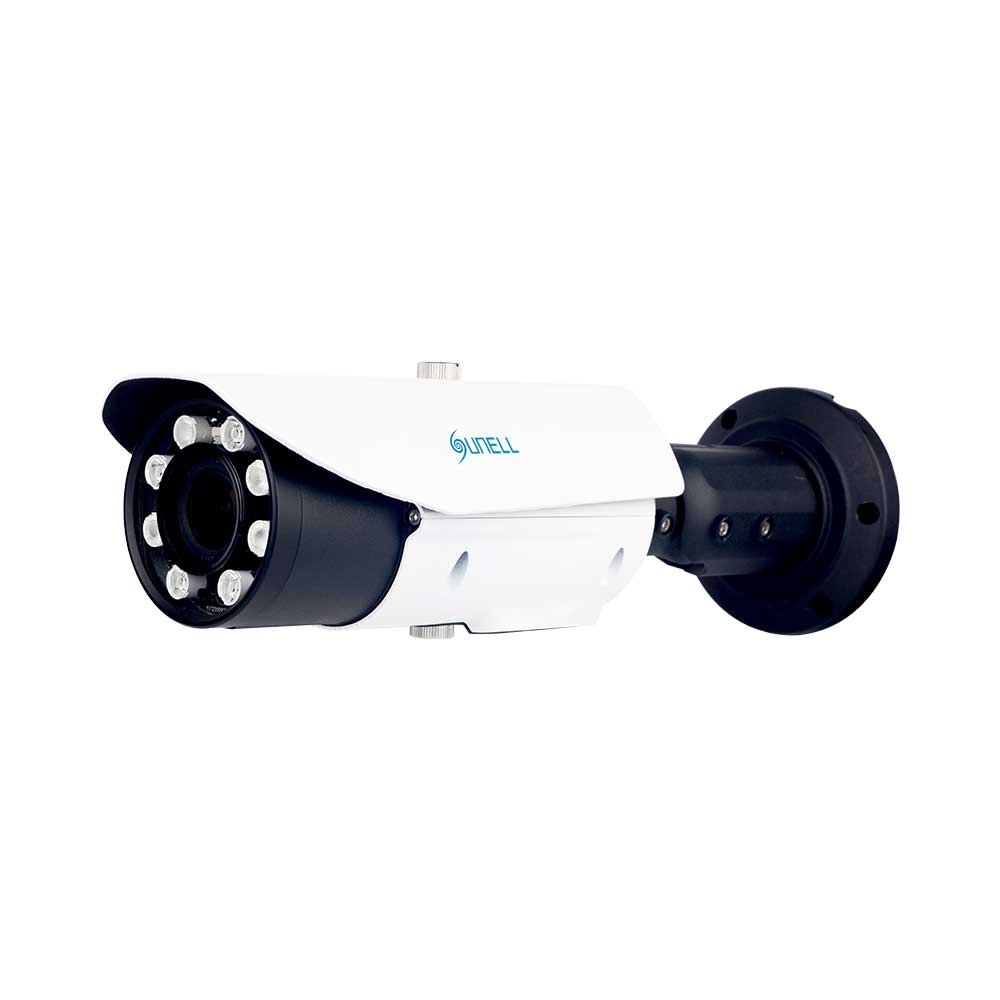

SUNELL MVF IP BULLET 12MP CMOS, 4000X3000, POE - CAM-IPR57-80AKDN-Z
