FEATURES
• 1/3" Progressive Scan CMOS
• Motorized lens 2.7~12mm
• 25fps/30fps@4MP(2592*1520)
• Triple Streams
• Smart IR Up to 30m
• Low bitrate ,Excellent low light performance
• WDR,3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP67, IK10
SPECIFICATIONS
Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Effective Pixels: 2592(H)×1520(V)
• Scanning System: Progressive
• Electronic Shutter: 1/5~1/20000s
• Min. Illumination: Colour: 0.05 Lux @( F1.2,AGC ON); B/W: 0 Lux @ (IR LED ON)
• S/N Ratio: 55dB
• IR Range: Up to 30m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 15pcs
• Pan/Tilt/Rotation Range: Pan: 0˚~355˚, Tilt: 0˚~80˚, Rotation: 0˚~355˚
Lens
• Lens Type: Motorised
• Iris: Auto Iris
• Focal Length: 2.7~12mm
• F Number: F1.3
• Angle of View: 100°~ 30°
• Focus Control: Motorised
• Close Focus Distance: 0.2m
Video
• Compression: H.265, H.264, MJPEG
• Max. Resolution: 4MP (2592×1520)
• Streaming Capability: 3 Streams
• Stream 1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps
Frame Rate
• Stream 2: D1/VGA/640×360/CIF/QVGA @25/30fps
• Stream 3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
Bit Rate
• Stream1: 500kbps~12000kbps
• Stream 2: 100kbps~6000kbps
• Stream 3: 100kbps~3000kbps
• Day/Night: ICR
• Image Enhancement: HLC / Defog / WDR (120dB)
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Electronic Image Stabilisation: (EIS) Support
• Smart IR: Support
• Mirror: Support
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking: Support
Audio
• Compression: G.711 ,RAW_PCM
• Bit Rate: 64kbps (G.711), 128kps (RAW_PCM)
Network
• Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP
• Interoperability: ONVIF
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer:
• Smart Phone: iOS, Android
Intelligence
• IVS: Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter ,Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking , Signal Bad
Interface
• Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio Interface: 1ch Audio In,1ch Audio Out, 1ch Built-in Mic
• Alarm: 1ch Alarm In, 1ch Alarm Out
• RS485: Optional
• BNC Output: Support
• Reset Button: Support
• Edge Storage: Micro SD, Max. 128GB
Electrical
• Power Supply: DC12V/POE
• Power Consumption: 3.5W (IR LED OFF), 7W (IR LED ON)
Operating Temperature
• Starting Temperature: -30°C ~ 60°C
• Working Temperature: -40°C ~ 60°C
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP67,IK10
• Certifications: CE / FCC
• Casing: Metal
• Dimensions: φ139 × 117mm
• Net Weight: 880g
Brand
SUNELL SECURITY
Title

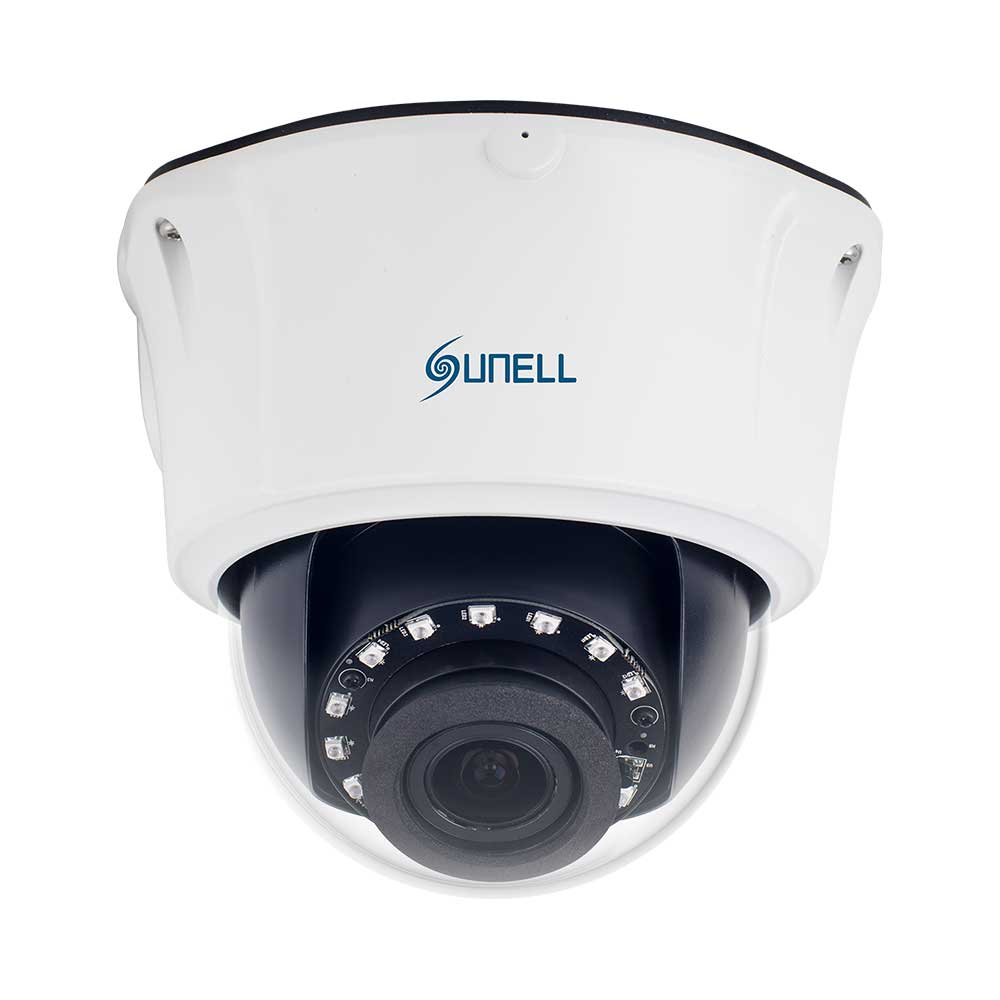

SUNELL MVF IP CIELING DOME 4MP, POE, MIC - CAM-IPV57-41CLDR-Z
