FEATURES
• Up to 8ch IP cameras access
• 8ch picture stream face recognition
• Max 20 face pictures /sec processing
• Up to 16 face databases with 10,000 face images in total
• Support attendance management
• Smart search & playback
• Simultaneous HDMI&VGA up to 4K output
• 8ch PoE Ports
SPECIFICATIONS
SYSTEM
• Main Processor: Dual-core embedded processor
• Operating System: Embedded LINUX
AUDIO AND VIDEO
• IP Camera Input: 8 Channel
• Two-way Talk: Yes
• Intelligent Video: Face Recognition, Attendance
FACE RECOGNITION
• Performance: Max 20 face pictures /sec processing, 4ch picture stream face recognition
• Stranger Mode: Detect strangers' faces (not in device's face database), Similarity threshold can be set manually
• AI Search: Search for image by image, Search image by properties
• Database Management: Up to 16 face databases with 10,000 face images in total
• Database Application: Every data can be applied to any channel
• Trigger Events: Buzzer, Alarm Out, compare the result simultaneously, etc.
DISPLAY
• Interface: 1 HDMI, 1 VGA
• Resolution: HDMI - 3840×2160,1920×1080,1440×900, 1280×1024 VGA: 1920×1080, 1280×1024, 1280×720
• Decoding Capacity: 1ch 12MP/4ch 8MP/8ch 4MP@30fps
• Multi-screen Display: 1/4/8
RECORDING
• Compression: H.265/H.264
• Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1&etc.
• Record Rate: 80Mbps
• Bit Rate: 100Kbps ~ 8Mbps Per Channel
• Record Mode: Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in
• Record Interval: Post-record: 30 ~ 60 sec
VIDEO DETECTION AND ALARM
• Trigger Events: Recording, Buzzer, Push message, Pop up message.
• Video Detection: Motion Detection, Video Loss, Camera Tamper
• Alarm In/Out: 8/1
PLAYBACK AND BACKUP
• Sync Playback: 8/4/1
• Search Mode: Time /Date, Alarm, Picture grid, Event
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device
NETWORK
• Interface: 1 RJ-45 port (10M/100Mbps)
• PoE Interface: 8ch 100Mbps, IEEE802.3af
• PoE Max Power: 80W
• Network Function: HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
• Optical Fibre Interface: N/A
• Max. User: Access 10 users
• Smart Phone: iPhone, iPad, Android
• Interoperability: ONVIF, SDK, CGI
STORAGE
• Internal HDD: 1 SATA Ports, up to 12TB for each HDD
• Mounting Mode: Embedded
• eSATA: N/A
INTERFACE
• USB: 2 ports (USB2.0 x1, USB3.0 x1)
• RS232: N/A
• RS485: N/A
• Audio I/O: 1ch MIC in, 1ch Audio line out
• Reset Button: N/A
GENERAL
• Power Supply: DC48V/2.5A
• Power Consumption: < 5W (without HDD)
• Operating Conditions: -10 °C ~ 50 °C (14 °F ~ 122 °F)
• Storage Conditions: Less than 90% RH
• Certifications: CE/FCC
• Dimensions: 255×235×47.5mm
• Net Weight: 1kg
Brand
SUNELL SECURITY
Title

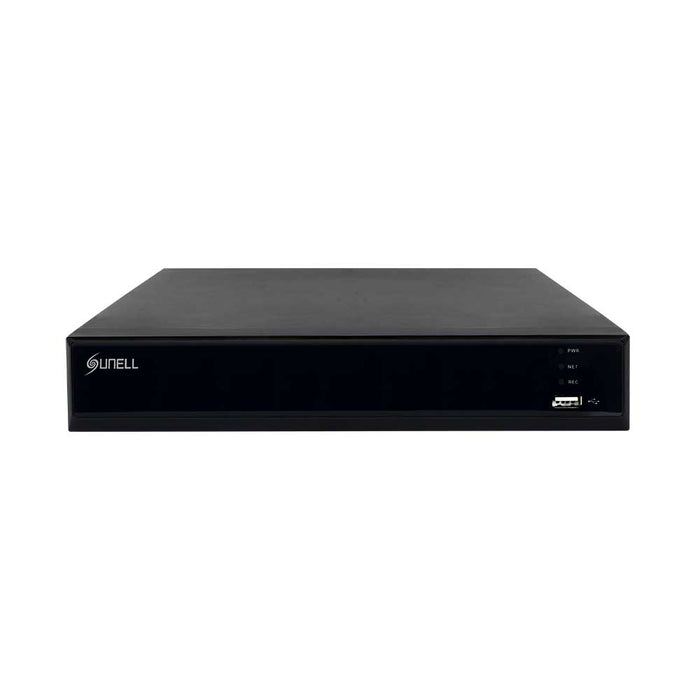

SUNELL NVR 8CH, 1 BAY, 1X LAN, 8X POE, H.265, AI - CAM-NVR2608E1-P8J
