FEATURES
• 1/2.8" Progressive Scan CMOS
• 2.8-8mm motorized lens
• 25fps/30fps@2MP(1920*1080)
• Triple Streams
• Smart IR Up to 20m
• Low bitrate, Excellent low light performance
• WDR,3D DNR
• ROI, Defog, HLC, Corridor mode, DIS
• IP66
SPECIFICATIONS
Camera
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Effective Pixels: 1920(H)×1080(V)
• Scanning System: Progressive
• Electronic Shutter: 1/5-1/20000s
• Min. illumination Colour 0.01Lux @(F1.2,AGC ON), B/W 0Lux @(IR LED ON)
• S/N Ratio: 55dB
• IR Range: Up to 20m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 3pcs
• Pan/Tilt/Pan: 0˚~350˚, Tilt:0˚~90˚
• SpeedPan: 0.1~120°/s ; Tilt:0.1~120°/s
Lens
• Lens Type: Motorized
• Iris: Fixed Iris
• Focal Length: 2.8~8mm
• F Number: F1.6
• Angle of View: 103.5°~ 50°
• Focus Control: Motorized
• Close Focus Distance: 0.2m
Video
• Compression: H.265,H.265,MJPEG
• Max. Resolution: 1080p (1920×1080)
• Streaming Capability: 3 Streams
• Stream1: 1920×1080/1280×720 @25/30fps
Frame Rate
• Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
• Stream3: VGA/CIF/QVGA @25/30fps
• Bit Rate Control: CBR/VBR
Bit Rate
• Stream1: 500kbps~12000kbps
• Stream2: 100kbps~6000kbps
• Stream3: 100kbps~3000kbps
• Day/Night: ICR
• Image Enhancement: HLC / Defog / WDR (96dB)
• White Balance: Support
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D DNR
• Electronic Image Stabilization(EIS): Support
• Smart IR: Support
• Mirror: Support
• Region of Interest: Support
• Motion Detection: Support
• Privacy Masking: Support
Audio
• Compression: N/A
• Bit Rate: N/A
Network
• Protocols: IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
• Interoperability: ONVIF
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Web Viewer:
• Smart Phone: IOS, Android
Intelligence
• IVSPerimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad
Interface
• Ethernet:1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio Interface: N/A
• Alarm: N/A
• RS485: N/A
• BNC Output: N/A
• Reset Button: Built-in
• Edge Storage: N/A
Electrical
• Power Supply DC 12V / POE
• Power Consumption: 2W(IR LED OFF), 4.5W (IR LED ON)
Operating Temperature
• Starting Temperature: -30°C ~ 50°C
• Working Temperature: -30°C ~ 50°C
• Operating Humidity: Less than 90% RH
• Ingress Protection: IP66
• Certifications: CE / FCC
• Casing: Metal
• Dimensions: φ105×73mm
• Net Weight: 450g
Brand
SUNELL SECURITY
Title

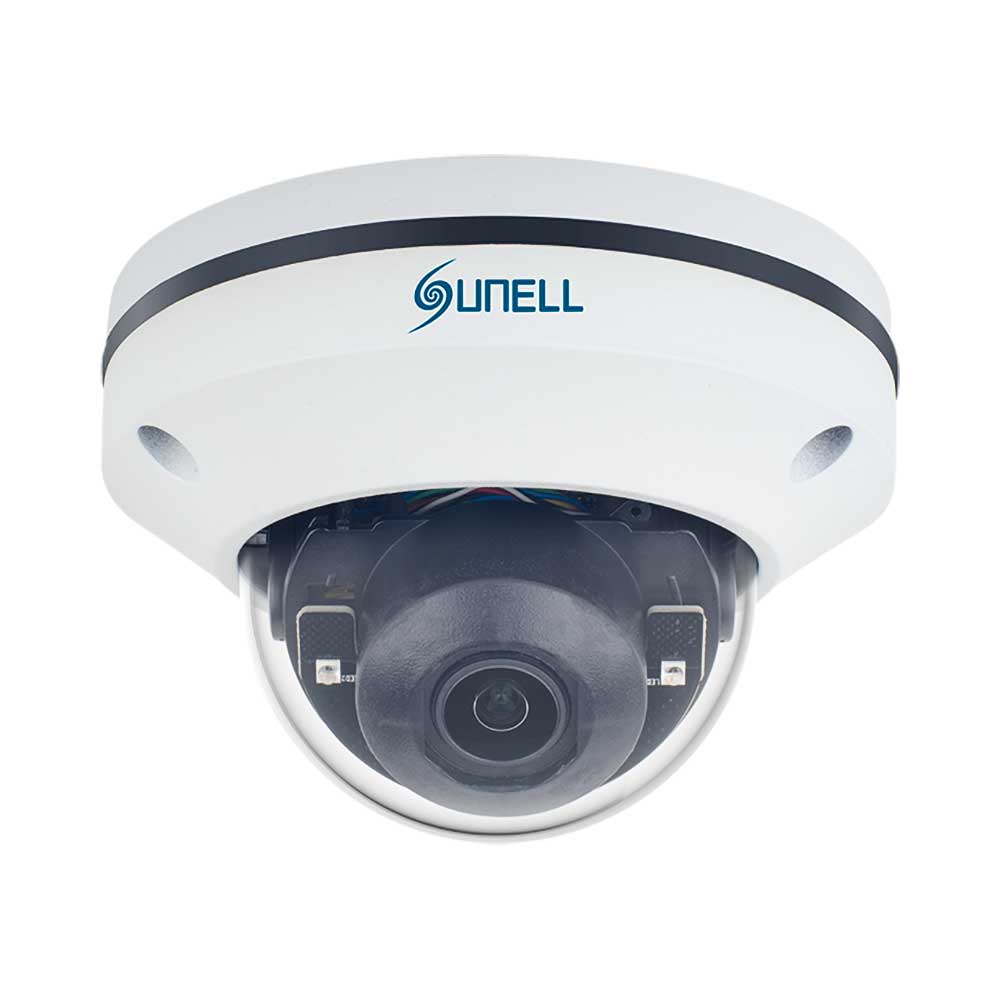

SUNELL PTZ MINI DOME 2MP CMOS, 1920X1080, POE - CAM-IPV57-02GDR-Z
