FEATURES
• Solid Performance - Over 3,500 / 1,700MB/s sequential read/write throughput supports office-wide applications
• On-Demand Expansion - Scale up to 24 drive bays and 432TB of raw storage with one Synology RX1223RP Expansion Unit
• Comprehensive Backups - Protect your IT infrastructure with license-free solutions for backup, replication and recovery
• Availability Safeguards - Hot-swappable drives, online volume expansion, dual power supplies (RS2423RP+) and high-availability clustering help keep services online
SPECIFICATIONS
Processor
• CPU Model: AMD Ryzen V1780B
• CPU Architecture: 64-bit
• CPU Frequency: 4-Core 3.35GHz (Base) / 3.6GHz (Turbo)
• Hardware Encryption Engine (AES-NI): Yes
Memory
• System Memory: 8GB DDR4 ECC UDIMM
• Memory Module Pre-installed: 8GB (1× 8GB)
• Total Memory Slots: 2×
• Maximum Memory Capacity: 32GB (2× 16GB)
Storage
• Drive Bays: 12×
• Maximum Drive Bays with Expansion Unit: 24× (1× RX1223RP)
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA SSD
• Hot Swappable Drive: Yes
External Ports
• RJ45 1GbE LAN Ports: 2× (With Link Aggregation / Failover Support)
• RJ45 10GbE LAN Port: 1×
• USB3.2 Gen1 Ports: 2×
• Expansion Port: 1×
PCIe
• PCIe Expansion: 1× Gen3 x8 Slot (x4 Link)
File System
• Internal Drives: Btrfs, EXT4
• External Drives: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
Appearance
• Form Factor (RU): 2U
• Size (Height × Width × Depth): 88 × 482 × 552mm
• Weight: 11.5kg
• Rack Installation Support: 4-post 19" Rack (Synology Rail Kit: RKS-02, Sold Separately)
• System Fan: 60 × 60mm ×3pcs
Power
• Power Supply Unit / Adapter: 500W
• AC Input Power Voltage: 100~240VAC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption (Access): 119.95W
Environment
• Operating Temperature: 0~35°C
• Storage Temperature: -20~60°C
• Relative Humidity: 5~95% RH
Certification
• FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL
Warranty
• 3-Year Hardware Warranty (Extendable to 5-Years with EW202 or Extended Warranty Plus)
Brand
SYNOLOGY
Title

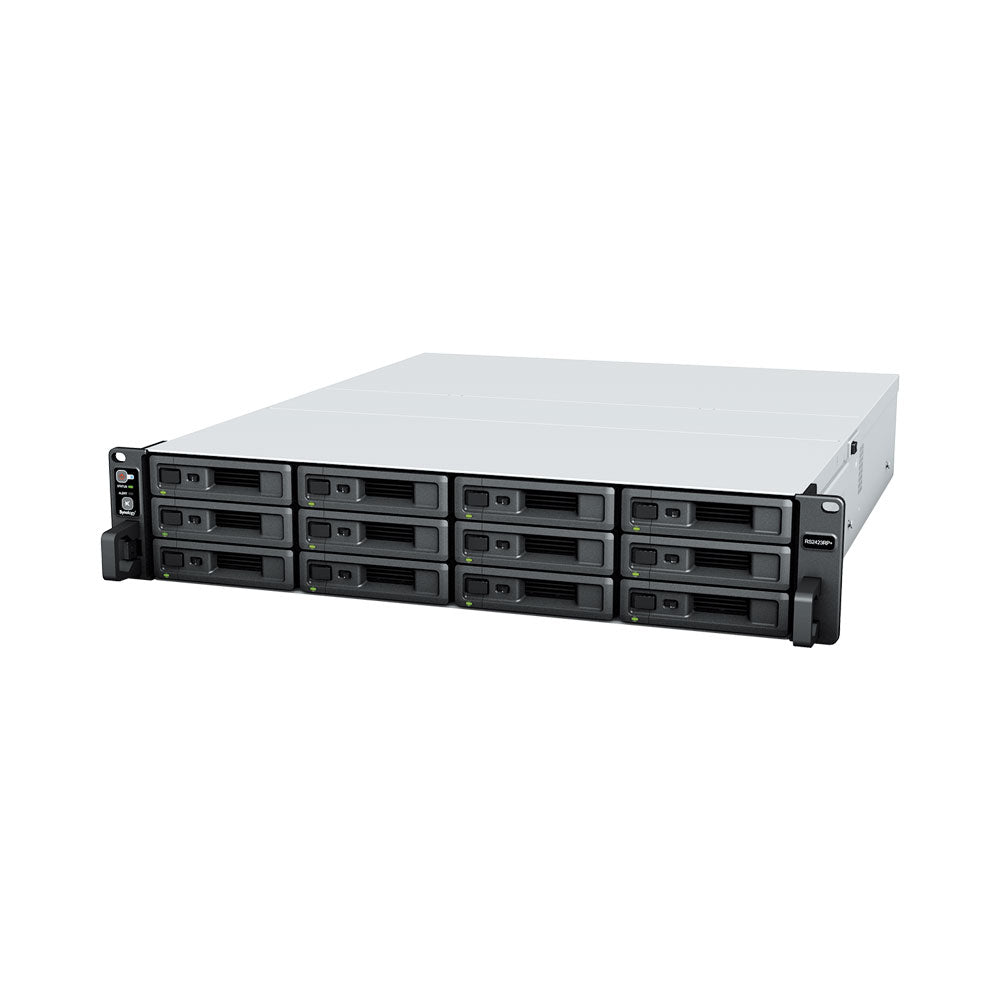

SYNOLOGY RS2423+ 12-BAY 8GB, QC - DISKLESS - CAS-NASBOX-RS2423+
