FEATURES
• High Performance - Over 2,103/1,074MB/s sequential read/write throughput supports stable data transfers
• Redundant Power - Maximise uptime with a redundant power supply
• Easy Expansion - Scale up to 8× drives with one Synology RX418 Expansion Unit
• Flexible Connectivity - Four 1GbE ports support network failover and load balancing, with optional 10/25GbE expansions available
• SSD Cache Support - Boost random IOPS performance with optional SSD cache
SPECIFICATIONS
Hardware
CPU
• AMD Ryzen V1500B
• 4-Core 2.2GHz
• Hardware Encryption Engine (AES-NI)
Memory
• 8GB DDR4 ECC SODIMM
• Total Memory Slots: 2×
• Maximum Memory Capacity: 32GB (2× 16GB)
Drive Bays
• 8×
• Maximum Drive Bays with Expansion Unit: 18 (2× RX418)
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA SSD
• Hot Swappable Drive: Yes
External Ports
• 2× RJ45 1GbE LAN Port (with Link Aggregation / Failover support)
• 2× USB3.2 Gen1 Port
PCIe
• 1× Gen3 x8 Slot (x4 link)
File System
Internal Drives
• Btrfs, EXT4
External Drives
• Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
Appearance
• Form Factor (RU): 2U
• Rack Installation Support: 4-Post 19" Rack (Synology Rail Kit – RKS-02)
• System Fan: 40mm × 2pcs
Power and Environment
Power Supply
• 250W
AC Input Power Voltage
• 100–240VAC
• 50/60Hz, Single Phase
Power Consumption
• 44.76W (Access) / 16.77W (HDD Hibernation)
Operating Temperature
• 0~35°C
Storage Temperature
• -20~60°C
Relative Humidity
• 5~95% RH
DSM SPECIFICATIONS
Storage Management
• Maximum Single Volume Size: 108TB
• Btrfs (Write-Once): Yes
• SSD TRIM: Yes
• Supported RAID Types: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
File Services
• Maximum Concurrent SMB/AFP/FTP Connections: 1,000+
• Windows ACL Integration: Yes
• NFS Kerberos Authentication: Yes
Accounts and Shared Folder
• Maximum Local User Accounts: 2,048×
• Maximum Local Groups: 256×
• Maximum Shared Folders: 512×
Virtualisation and Enterprise Integration
• VMware vSphere
• Microsoft Hyper-V
• Citrix
• OpenStack
Backup and Data Protection
• Hyper Backup
• Snapshot Replication
• Synology High Availability
• Active Backup for Business
Surveillance Station
Maximum IP Cameras (H.264)
• 720p: 40× channels, 1,200 FPS
• 1080p: 40× channels, 600 FPS
• 3M: 40× channels, 480 FPS
• 5M: 40× channels, 320 FPS
• 4K: 20× channels, 200 FPS
Warranty
• 3-Year Hardware Warranty (Extendable to 5-Years with EW202)
Brand
SYNOLOGY
Title

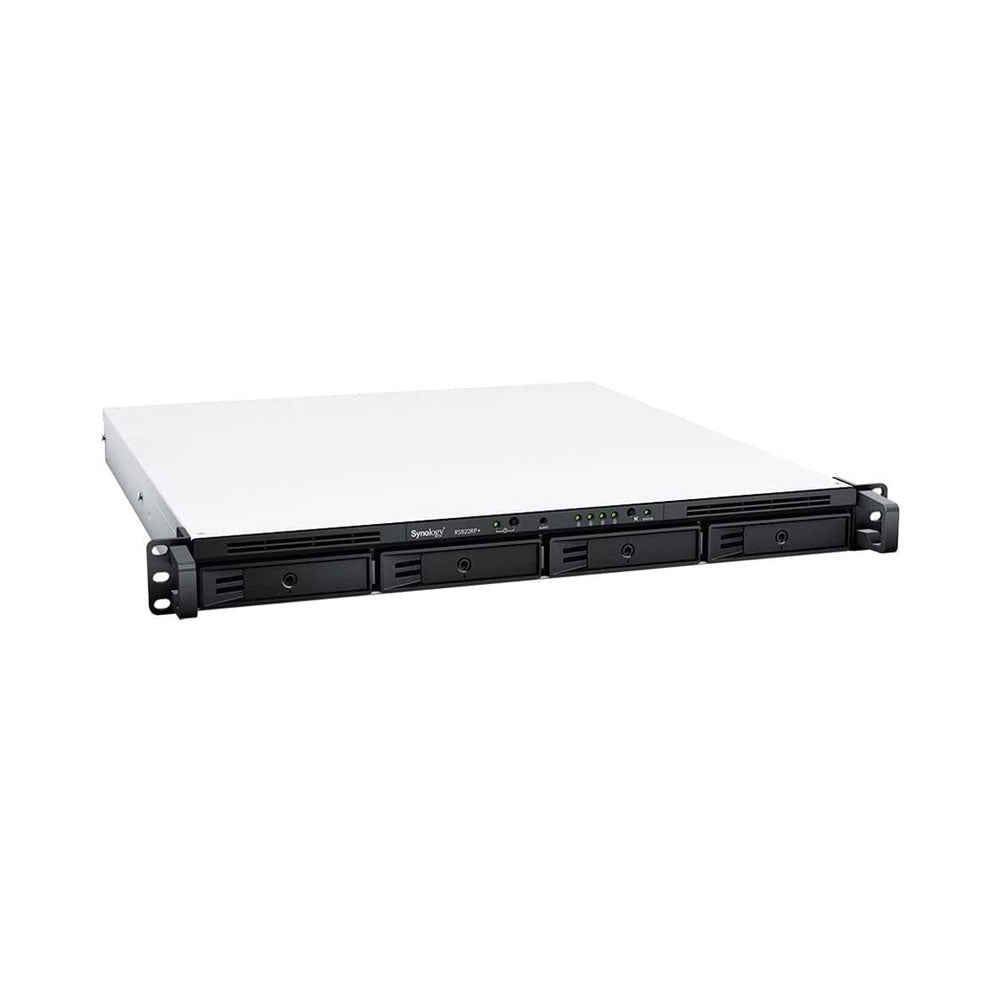

SYNOLOGY RS822RP+ 4-BAY, 2GB, QC - DISKLESS - CAS-NASBOX-RS822RP+
