FEATURES
• Plug-n-Use Design - Seamless storage expansion with minimal setup and automatic integration into existing Synology systems
• Online Volume Expansion - Expand storage capacity on-the-fly without system downtime
• Redundant Power Supply - Dual power modules ensure maximum service uptime and business continuity
• DSM Integration - Fully managed through Synology DiskStation Manager (DSM) for centralised monitoring and control
SPECIFICATIONS
Storage
• Drive Bays: 12×
• Drive Type: 3.5" SATA HDD, 2.5" SATA HDD/SSD
• Hot Swappable Drive: Yes
• RAID Management through Synology DSM: Yes
• Expansion Port: 1× (Infiniband)
Appearance
• Dimensions (H × W × D): 88 × 430.5 × 692mm
• Dimensions with Server Ears: 88 × 482 × 724mm
• Weight: 13.4kg
• Rack Installation Support: 4-Post 19" Rack (Synology Rail Kit: RKS-02)
• Power Recovery: Synchronised with the Synology RackStation
Power
• Power Supply: 500W
• AC Input Power Voltage: 100~240VAC
• Power Frequency: 50/60Hz, Single Phase
• Power Consumption (Access): 71.3W
• Power Consumption (HDD Hibernation): 31.2W
• British Thermal Unit (Access): 243.52 BTU/hr
• British Thermal Unit (HDD Hibernation): 106.53 BTU/hr
• Redundant Power Supply: Yes
Cooling and Noise
• System Fan: 3× 80 × 80mm
• Easy Replacement System Fan: Yes
• Noise Level: 54.2dB(A)
Temperature
• Operating Temperature: 5~35°C
• Storage Temperature: -20~60°C
• Operating Humidity: 8~80% RH
• Storage Humidity: 5~95% RH
Certification
• FCC, CE, BSMI, EAC, RCM, KC, BIS
Warranty
• 5-Years
Environment and Packaging
• RoHS Compliant
Brand
SYNOLOGY
Title

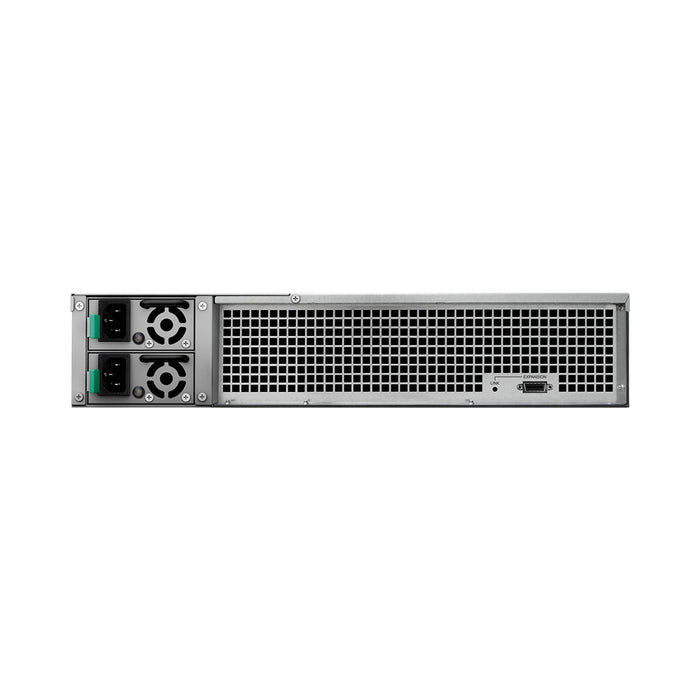

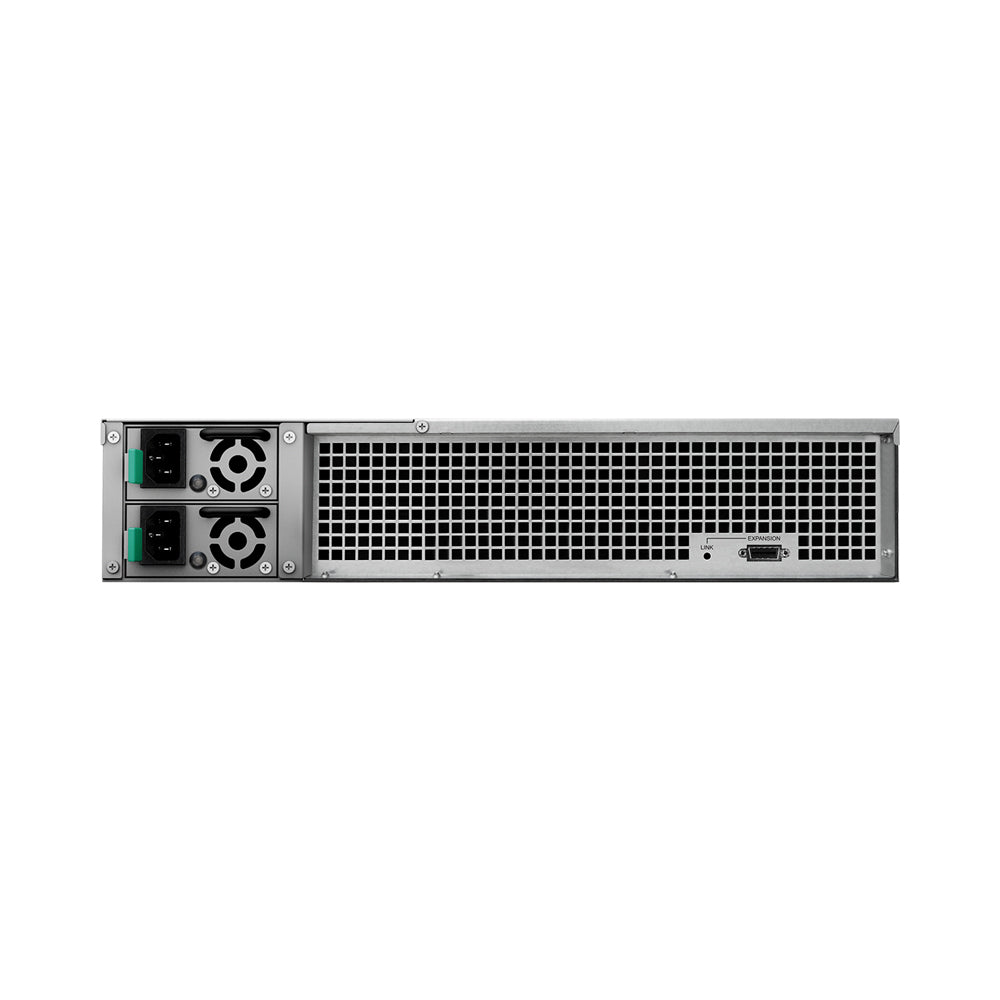

SYNOLOGY RX1217RP 12-BAY EXPANSION UNIT - DISKLESS - CAS-NASBOX-RX1217RP
