FEATURES
• CAT6 Gigabit Performance - Supports high-speed Ethernet networking with up to 250MHz bandwidth
• 23AWG Solid Copper Conductors - Ensures reliable signal transmission and stable network performance
• UV-Resistant Outdoor Jacket - Black polyethylene sheath protects against sunlight and harsh outdoor conditions
• Dual Jacket Construction - PVC inner sheath with additional outdoor PE layer for enhanced durability
• Cross Divider Design - Reduces crosstalk and improves signal integrity between twisted pairs
• Standards Compliant - Meets ISO 11801, TIA/EIA-568-C.2 and EN50173 structured cabling standards
• Wide Operating Temperature Range - Reliable operation from -20°C to +70°C
• Ideal for Outdoor Installations - Perfect for surveillance, outdoor networking and long-distance LAN deployments
SPECIFICATIONS
CONDUCTOR
• 23AWG Solid Bare Copper (0.57mm)
INSULATION
• Polyethylene
PAIR COLOURS
• Blue / White-Blue
• Green / White-Green
• Orange / White-Orange
• Brown / White-Brown
PRIMARY SHEATH
• PVC
• Nominal OD: 6.1mm
SECONDARY SHEATH
• Black UV-Resistant Polyethylene
• Nominal OD: 7.5mm
CROSS DIVIDER
• Polyethylene
FIRE SAFETY RATING
• IEC 60332-1
TEMPERATURE RANGE
• Installation: 0~50°C
• Operational: -20~70°C
ELECTRICAL CHARACTERISTICS (AT 20°C)
• DC Resistance: 80 Ohms/Km Max.
• Resistance Unbalance: 2% Max.
• Mutual Capacitance: 42 nF/km Max.
• Capacitance Unbalance: 1000 pF/km Max.
• Skew: 400 ns/km Max.
• Velocity of Propagation: 68% (0.68 × 3 × 10⁸ m/s)
• Characteristic Impedance (1–100MHz): 100 ±15 Ohms
• Characteristic Impedance (100–250MHz): 100 ±(15 + 0.05 (f-100)) Ohms
Brand
LinkQnet
Title

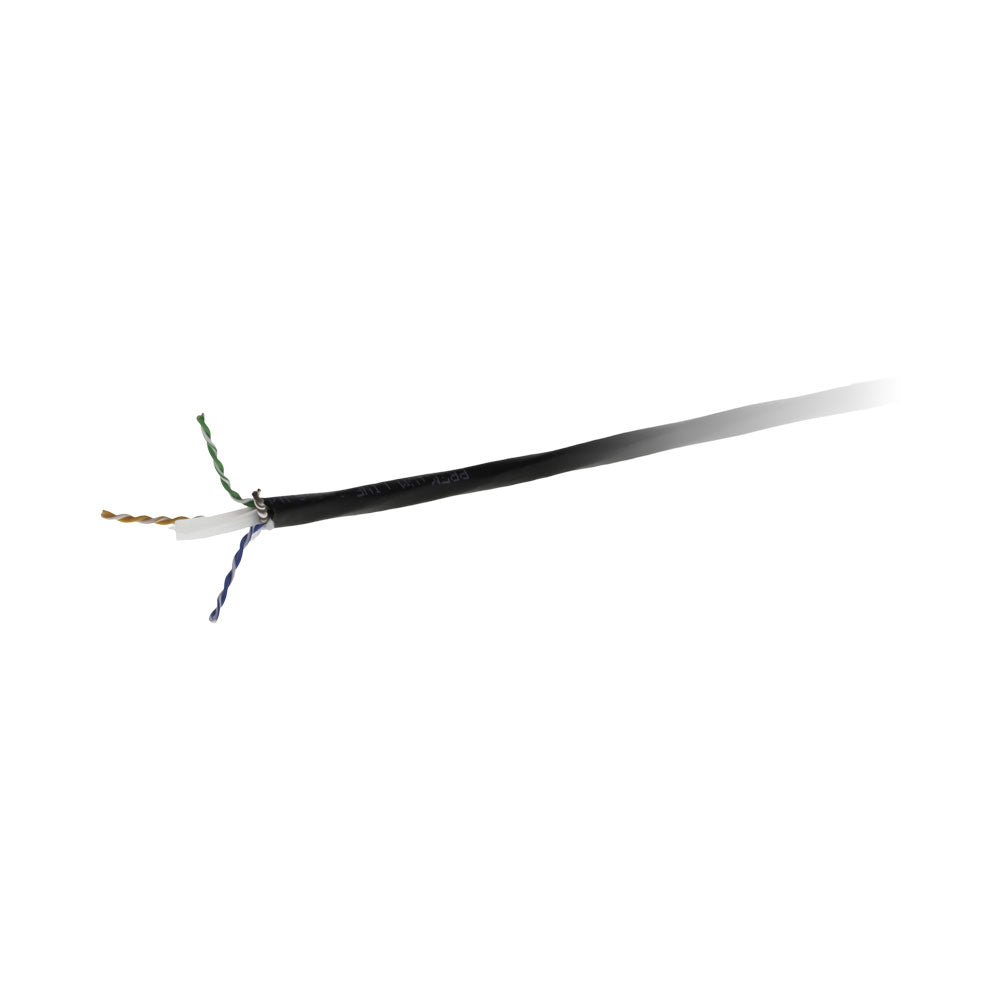

500M ROLL CAT6 OUTDOOR SOLID NETWORK CABLE BLACK - NET-CAT6-500M-OUT-BL
