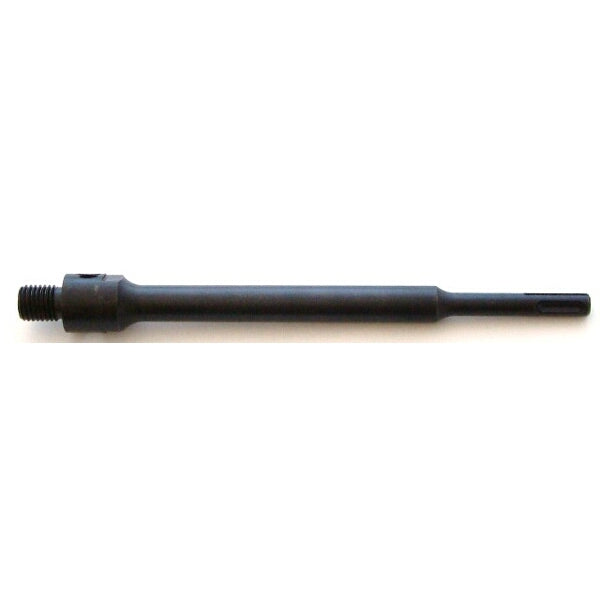

Adaptor length: 200mm

Thread: M16

Connection type: SDS Plus

Application:

This is a SDS Plus adaptor to connect the Dry Cut Diamond Core Drill to your
rotary hammer.

Make sure the threads are the same as the Dry Cut Diamond Core Drill - M22 or
M16.

Take note that there are 2 connection types:

• Hex


• SDS Plus

List of different adaptors:

1. Hex shank adaptors for the Dry Cut Diamond Core Drill range:

• Hex shank 70mm, M16 thread -

  TC18HEX1


• Hex shank 200mm, M16 thread -
  TC18HEX2


• Hex shank 300mm, M16 thread -
  TC18HEX3


• Drift key for removing the pilot drill -
  TC18KEY


• Pilot drill bit (not included with adaptors)-

  TC18PILOT

2. SDS Plus adaptors for the Dry Cut Diamond Core Drill range:

• SDS Plus 70mm, M16 thread -

  TC18SDS1


• SDS Plus 200mm, M16 thread -
  TC18SDS2


• SDS Plus 300mm, M16 thread -
  TC18SDS3


• SDS Plus 70mm, M22 thread -
  TC18SDS4


• SDS Plus 200mm, M22 thread -
  TC18SDS5


• SDS Plus 300mm, M22 thread -
  TC18SDS6


• Drift key for removing the pilot drill -
  TC18KEY


• Pilot drill bit (not included with adaptors)-

  TC18PILOT

NOTE:

The pilot drill bit is not included with the adaptors and it is available
separately -

TC18PILOT

INFORMATION:

Use the drift key
TC18KEY to remove or replace the
pilot drill bit from the adaptors.
