Quick Specs

• Supports 12th, 13th & 14th Gen Intel® processors for broad compatibility.


• Features a Micro ATX form factor, ideal for compact and efficient builds.


• Equipped with a PCIe 4.0 slot for high-speed graphics card performance.


• Includes a 32Gbps M.2 slot for NVMe SSDs, accelerating data access.


• Offers Realtek 1 Gb Ethernet for stable and reliable network connections.

Built for Today's Processors

The ASUS PRIME H610M-R LGA 1700 motherboard is designed to support the latest 12th, 13th, and 14th generation Intel® processors, ensuring your CPU operates at its peak. With the LGA 1700 socket, this motherboard provides a solid foundation, ideal for both gaming rigs and professional workstations.

Compact Design, Powerful Performance

The Micro ATX form factor of this LGA 1700 motherboard allows for a smaller footprint, making it perfect for space-saving builds without compromising performance. Fit the ASUS motherboard into compact cases, ideal for users needing power in a smaller package.

Fast and Future-Proof Connectivity

Featuring a PCIe 4.0 slot, the ASUS PRIME H610M-R ensures your graphics card operates at full potential, delivering exceptional frame rates and smooth visuals. The 32Gbps M.2 slot enables lightning-fast storage speeds, reducing load times and improving overall system responsiveness on this ASUS motherboard.

Reliable Networking for Seamless Experiences

Stay connected with Realtek 1 Gb Ethernet, providing a stable and reliable network connection for online gaming, streaming, and productivity. Enjoy uninterrupted performance with this essential connectivity feature of the ASUS LGA 1700 motherboard.

Robust Protection for Long-Term Reliability

ASUS 5X Protection III offers multiple hardware safeguards to protect your components from damage. With features like LANGuard, Overvoltage Protection, and Stainless-Steel Back I/O, this ASUS motherboard ensures your system remains stable and reliable for years.

FEATURES:

• Intel H610 Chipset


• Intel® LGA 1700 Socket: Ready for 14th, 13th & 12th Gen Intel® processors


• Comprehensive Cooling: PCH heatsink


• Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support


• 5X Protection III: Multiple hardware safeguards for all-round protection

SPECIFICATIONS:

• CPU:



  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors


  • Supports up to Intel® 65W CPU


  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**


  • * Refer to www.asus.com for CPU support list.


  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.






• Chipset: Intel® H610 Chipset


• Memory:



  • 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*


  • Dual Channel Memory Architecture


  • Supports Intel® Extreme Memory Profile (XMP)


  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to


  • CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.


  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.






• Graphics:



  • 1 x DisplayPort**


  • 1 x VGA port


  • 1 x HDMITM port***


  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.


  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.


  • *** Supports 4K@60Hz as specified in HDMITM 2.1.






• Expansion Slots:



  • Intel® Core™ Processors (14th & 13th & 12th Gen)


  • 1 x PCIe 4.0 x16 slot


  • Intel® H610 Chipset


  • 1 x PCIe 3.0 x1 slot


  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.






• Storage:



  • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports


  • Intel® H610 Chipset


  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)


  • 4 x SATA 6Gb/s ports






• Ethernet:



  • 1 x Realtek 1Gb Ethernet






• Rear USB (Total 4 ports):



  • 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)


  • 2 x USB 2.0 ports (2 x Type-A)






• Front USB (Total 6 ports)



  • 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports


  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports






• Audio:



  • Realtek 7.1 Surround Sound High Definition Audio CODEC*


  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


  • Supports up to 24-Bit/192 kHz playback






• Audio Features:



  • Audio Shielding


  • Premium audio capacitors


  • Dedicated audio PCB layers


  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

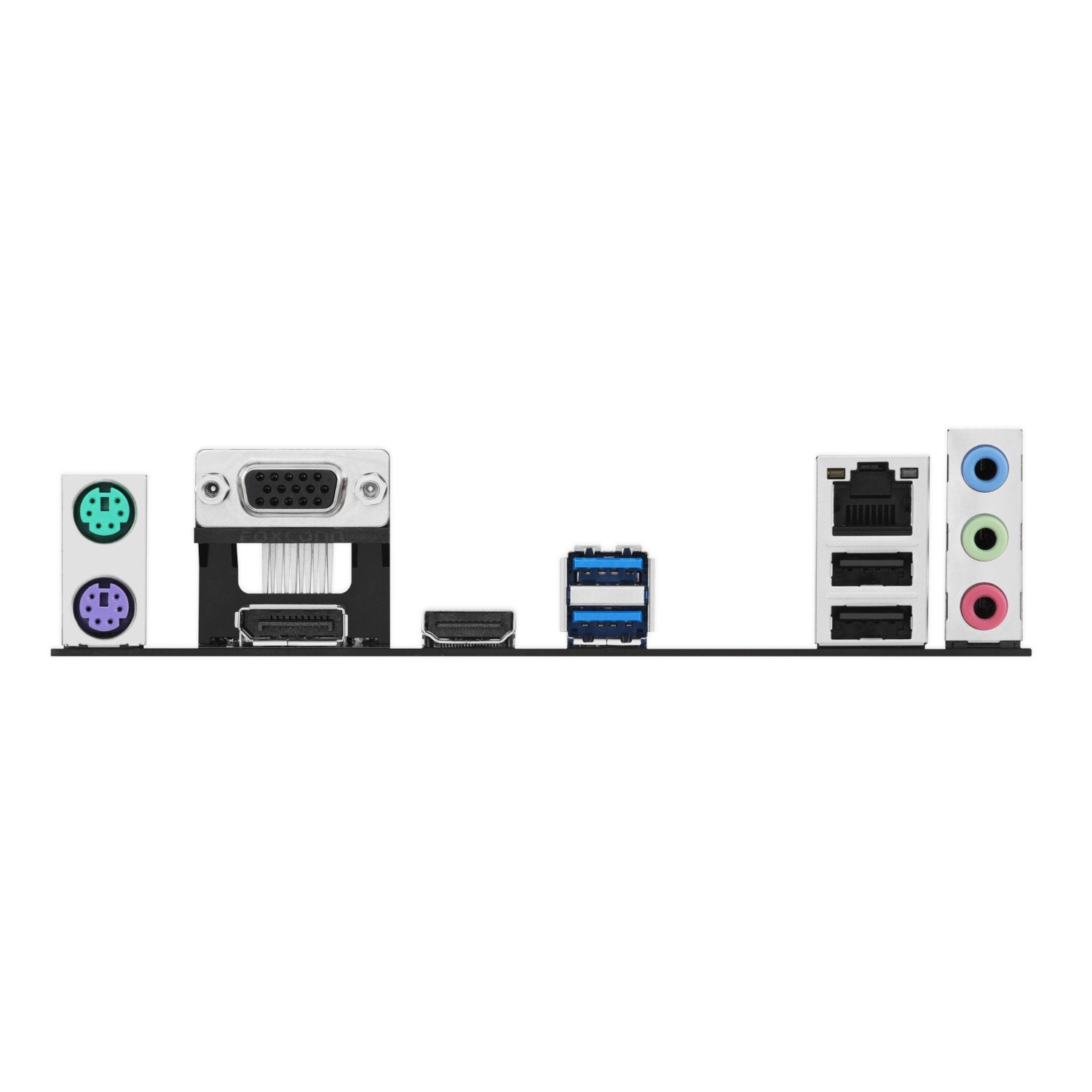

• Back Panel I/O Ports:



  • 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)


  • 2 x USB 2.0 ports (2 x Type-A)


  • 1 x DisplayPort


  • 1 x VGA port


  • 1 x HDMITM port


  • 1 x Realtek 1Gb Ethernet port


  • 3 x Audio jacks


  • 1 x PS/2 Keyboard (purple) port


  • 1 x PS/2 Mouse (green) port






• Operating System: Windows 11, Windows 10 64-bit


• Form Factor: Micro ATX

WHAT’S IN THE BOX:

• Asus PRIME H610M-R LGA1700 Micro ATX Motherboard – Black x1


• SATA Cables x2


• I/O Shield x1


• M.2 Anchor x1


• User Guide x1

Why Asus?

Choosing an ASUS motherboard means investing in reliability and innovation. With decades of experience, ASUS provides cutting-edge technology and robust components, ensuring a stable and high-performing system. South African gamers and professionals trust ASUS for its superior quality and exceptional support, making it the smart choice for your next build when you need an LGA 1700 motherboard.
