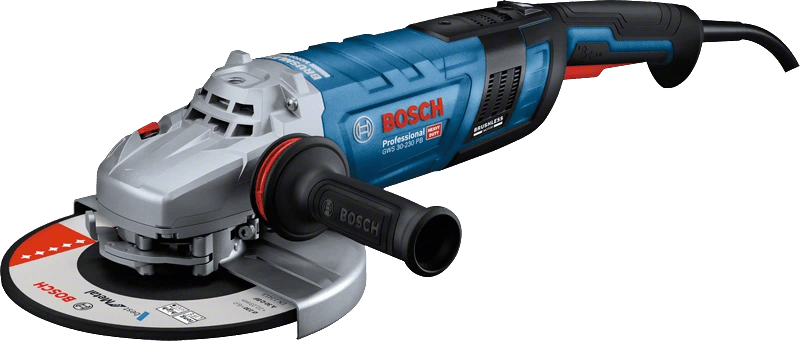

Angle grinder GWS 30-230 PB

Powerful large angle grinder with brushless motor, PROtection safety switch and brake

• Maximum performance and best stock removal results thanks to the 2800 W brushless motor
• Less wear and minimal downtime due to brushless operation
• PROtection safety switch, KickBack Control, brake, Vibration Control and an improved vibration suppression system for greater user protection

Product Highlights

The GWS 30-230 PB Professional comes with a very powerful 2800 W brushless motor that enables sustained performance and the best stock removal results, even on tough jobs. The machine delivers maximum power, has a high overload protection and stands for maximum productivity. The brushless motor without commutator and carbon brushes results in less wear and minimal downtime. User protection is also increased with a brake that ensures a quick stop of the disc, a PROtection safety switch for instant shut-off when the switch is released, and KickBack Control. In addition, Vibration Control and an improved vibration suppression system absorb most of the vibrations during work.

Equipment and application

The GWS 30-230 PB Professional grinds metal or weld seams and cuts through metal, concrete, bricks and tiles. The version of the GWS 30-230 PB Professional is compatible with the Bosch dust extraction system GDE 230 FC-T Professional.

Additional information

The GWS 30-230 PB Professional has an LED display for machine status, overload protection, zero voltage protection and soft start.

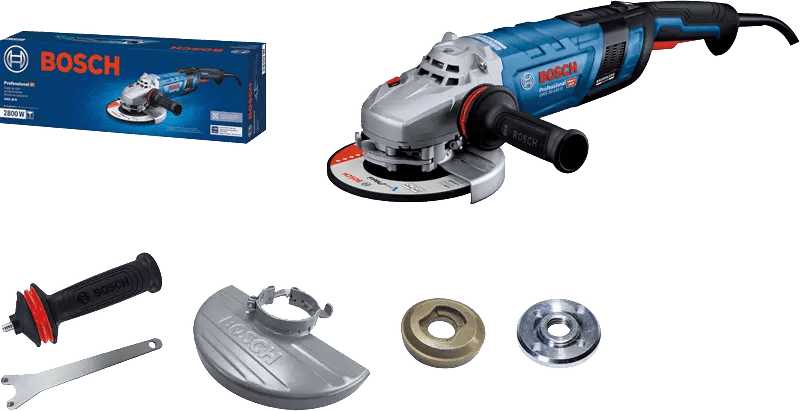

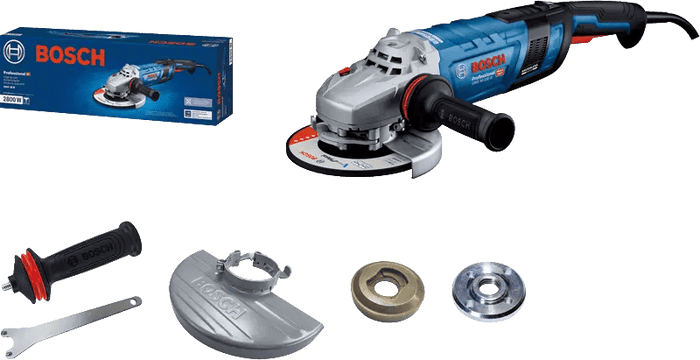

This product contains

• Clamping nut 1 603 340 040
• Pin wrench 1 607 950 048
• Additional handle Vibration Control 2 608 900 001
• Quick-adjust protective hood 2 605 510 281

Functions and main features

TECHNICAL DATA

The most important data
Nominal power consumption	2,800 W
No-load speed*	6,500 min-1
Grinding shaft thread	M14
Main handle	Rat tail
Disk diameter	230mm
Rubber sanding disc, Ø	230mm
Cup brush, Ø	100mm
Weight*	5.9 kg
Switch	PROtection switch
Packaging dimensions (width x length x height)	195 x 605 x 135mm
Voltage, electrical	230 V

Total vibration values (Surface grinding (burring))
Vibration emission value ah	5 m/s²
Uncertainty K	1.5m/s²

Total vibration values (Sanding with sanding sheet)
Vibration emission value ah	2.7 m/s²
Uncertainty K	1.5m/s²

Sound/vibration information
Sound pressure level	92.5dB(A)
Sound power level	103.5dB(A)
Uncertainty K	3dB

The A-weighted noise level of the power tool is typically: sound pressure level 92.5 dB(A); sound power level 103.5 dB(A). Uncertainty K= 3 dB.
