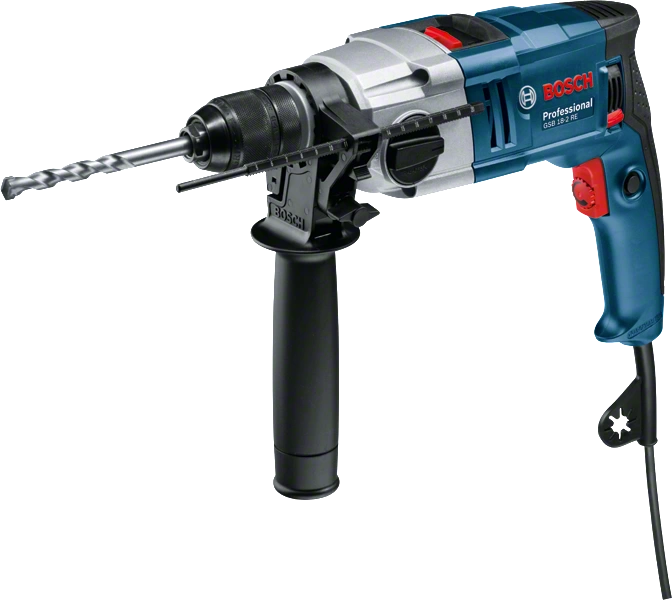

GSB 18-2 RE Professional
The fastest and most versatile tool in its class
- Powerful 2-speed impact drill (800 W) for the fastest work progress
- Sturdy metal gear housing for a long lifetime
- Anti-rotation mechanical overload clutch for a high level of work safety
Additional data
|
| Rated input power |
800 W |
| Weight |
2.6 kg |
| No-load speed, 1st gear |
0 – 1,100 rpm |
| No-load speed, 2nd gear |
3,000 rpm |
| Power output |
420 W |
| Tool dimensions (width) |
217 mm |
| Tool dimensions (length) |
353 mm |
| Impact rate at no-load speed |
0 – 17,600 / 48,000 bpm |
| Rated speed |
740 / 1,930 rpm |
| Rated torque |
4.8 / 1.8 Nm |
| Drill spindle connecting thread |
1/2"-20 UNF |
| Chuck capacity, min./max. |
1.5 – 13 mm |
| Max. torque |
24.0 / 14.0 Nm |
Drilling range
|
| Drilling diameter in wood |
35 / 22 mm |
| Drilling diameter in concrete |
16 / 12 mm |
| Drilling diameter in steel |
13 / 6 mm |
| Drilling dia. in stone |
18 / 14 mm |
| Drilling diameter in masonry |
18 / 14 mm |
Total vibration values (Drilling in metal)
|
| Vibration emission value ah |
3 m/s² |
| Uncertainty K |
1.5 m/s² |
Total vibration values (Impact drilling in concrete)
|
| Vibration emission value ah |
17.5 m/s² |
| Uncertainty K |
1.7 m/s² |
Total vibration values (Screwdriving)
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Total vibration values (Thread-cutting)
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Noise/vibration information
|
| Sound pressure level |
96 dB(A) |
| Sound power level |
107 dB(A) |
| Uncertainty K |
3 dB |
Drilling in metal
|
| Vibration emission value ah |
3 m/s² |
| Uncertainty K |
1.5 m/s² |
Impact drilling in concrete
|
| Vibration emission value ah |
17.5 m/s² |
| Uncertainty K |
1.7 m/s² |
Screwdriving
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Thread-cutting
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
The A-rated noise level of the power tool is typical as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.
