Wallscanner D-tect 200 C Professional: Further information
Product Highlights

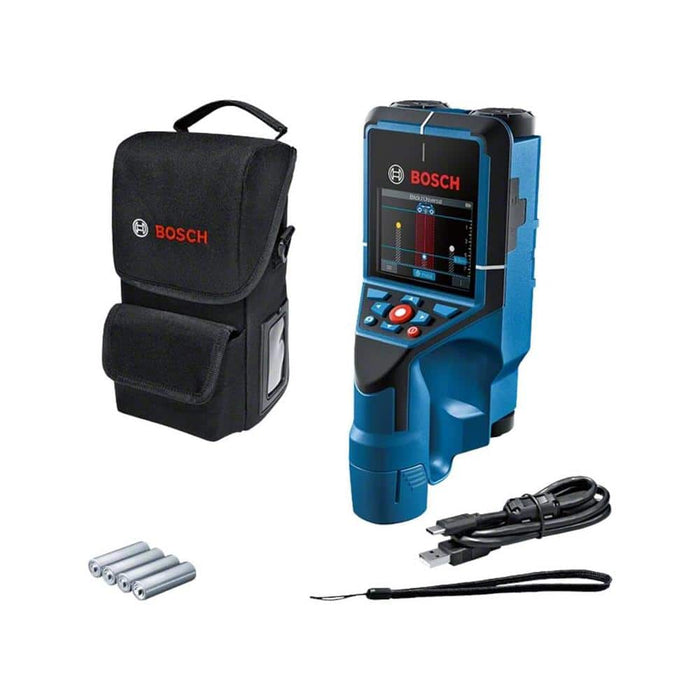

The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.
Equipment & Application
The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage.
Additional Information
The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.
Technical data
Additional data
Battery voltage
12.0 V
Dust and splash protection
IP 5X
Bosch Radar Technology
yes
Max. detection depth
200 mm
Detectable objects
magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures
Detection depth, dry concrete, max.
200 mm
Detection depth, early age concrete, max.
60 mm
Detection depth, other wall types, max.
80 mm
Detection depth, wooden substructures, max.
38 mm
Accuracy
± 5 mm* (*plus use-dependent deviation)
Views
Object view, Spot view, Signal View 2D, Signal View
Wall types
Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick
Documentation via
USB-C, SD-Card
Updatable
yes
Material identification
Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
Power supply
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA)
Weight, approx.
0,7 kg
Additional function
Leakage detection, distance measurement
The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.
