FEATURES
• Easy Assembly: Installation is as Easy as 1-2-3
• Swiveling Arms: Offers Maximum Viewing Flexibility (Makes Every Seat the Best Seat)
• Built-In Level Adjustment: Ensures Perfect Positioning
• Integrated Bubble Level: Assures Alignment
SPECIFICATIONS
• Material: Steel
• Metal Sheet Thickness: VESA Panel THK = 2mm Cold-Rolled Sheet, Bracket Arm THK = 2mm Cold-Rolled Sheet, Wall Plate THK = 3mm Hot-Rolled Sheet
• Pipe Size: 20 × 40 × 1.5mm
• Surface Finish: Powder Coating
• Colour: Fine Texture Black
• Dimensions: 515 × 858 × 440mm
• Fit Screen Size: 37"-70"
• Fit Curved Screen: Yes
• Mounting Hole Pattern: VESA and Universal
• VESA Compatible: 200×200, 300×300, 400×200, 400×400, 600×400, 800×400
• Max. VESA: 800×400
• Weight Capacity: 60kg
• Profile: 125~515mm
• Tilt Range: +15~-15°
• Swivel Range: 120°
• Screen Level: +5~-5°
• Screen Free Tilting: Yes
• Installation: Solid Wall, Double Stud (406mm)
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Cable Management: No
• Anti-Theft: No
• Bubble Level: Built-In Bubble Level (Integrated on Wall Plate/VESA Panel)
• Certification: GS, UL for 50kg
SPECIFICATIONS
• Material: Steel
• Metal Sheet Thickness: VESA Panel THK = 2mm Cold-Rolled Sheet, Bracket Arm THK = 2mm Cold-Rolled Sheet, Wall Plate THK = 3mm Hot-Rolled Sheet
• Pipe Size: 20 × 40 × 1.5mm
• Surface Finish: Powder Coating
• Colour: Fine Texture Black
• Dimensions: 515 × 858 × 440mm
• Fit Screen Size: 37"-70"
• Fit Curved Screen: Yes
• Mounting Hole Pattern: VESA and Universal
• VESA Compatible: 200×200, 300×300, 400×200, 400×400, 600×400, 800×400
• Max. VESA: 800×400
• Weight Capacity: 60kg
• Profile: 125~515mm
• Tilt Range: +15~-15°
• Swivel Range: 120°
• Screen Level: +5~-5°
• Screen Free Tilting: Yes
• Installation: Solid Wall, Double Stud (406mm)
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Cable Management: No
• Anti-Theft: No
• Bubble Level: Built-In Bubble Level (Integrated on Wall Plate/VESA Panel)
• Certification: GS, UL for 50kg
Brand
LinkQnet
Title

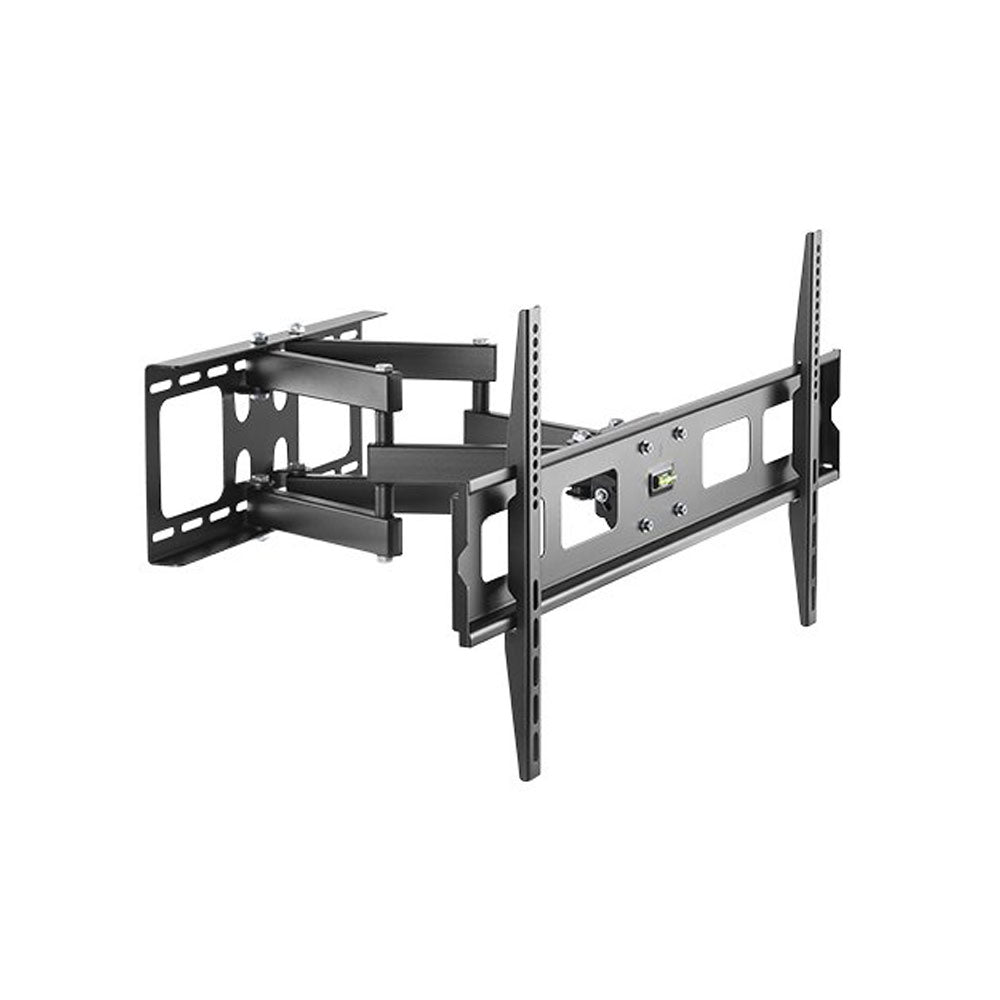

BRACKET 37-63IN,2ARMS,15TILT,120SWIVEL,LEVEL,60KG* - BRK-LPA13-484
