FEATURES
• Upstream:
- USB3.2 Gen1 Type-C Male (Connect to host)
- Supports DP1.4 Alt Mode, with bandwidth max
- 2-lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode
- Supports DSC
- Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format
• Downstream:
2× HDMI Supports:
- HDMI max
- 4K @60Hz, 4:4:4, 8-bit with 18Gbps bandwidth
- Support Dual max
- 4K @30Hz under MST mode (Windows System)
- Support Dual max
- 4K @60Hz under SST mode (Mac System ONLY)
- Support 8/10/12-bit Colour depth output
- Support Output pixel format RGB4:4:4 / YCbCr4:4:4 / YCbCr4:2:2 / YCbCr420
- Support HDCP2.2 and HDCP1.4
- Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4k @60Hz (dual 4K @30Hz) When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4k @30Hz (dual 1080p @60Hz) due to bandwidth limitation
• USB3.2 Gen1 Type-A
• 1× USB3.2 Type-A port supports BC1.2 with max
• 7.5W (5V 1.5A) downstream charging, 1× USB Type-A share max
• 8W (5V 1.6A) downstream charging Max
• 5Gbps bandwidth per USB Type-A port
• SD/Micro SD
• Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s) / SDR25(25Mbyte/s) / SDR50(50Mbyte/s) / DDR50(50Mbyte/s) / SDR104(104Mbyte/s)
• Allows 2× card slots to work simultaneously
• RJ45 Gigabit Ethernet
• USB3.2 Gen1 Type-C Female (for PD Charging)
• Supports PD Charging 100W (20V 5A)
• Support for Fast Role Swap of PD3.0, the connected device will not get disconnected while plugging in and out PD Adapter - 15W is dedicated to the functioning of this product, the balance of power (max
• 85W) will be passed to charge for the host
INPUT:
• USB3.2 Gen1 Type-C Male (Connect to host)
OUTPUT:
• 2× HDMI Female
• 2× USB3.2 Gen1 Type-A Female
• 1× SD Card Slot
• 1× Micro SD Card Slot
• 1× RJ45 jack
• 1× USB3.2 Gen1 Type-C Female
SPECIFICATIONS
Cable Length Approx.: 14cm
Replicator Dimensions: 11.5 × 5.9 × 1.42cm
Product Weight: 116g
Total Weight: 122g
Standards: Meets ROHS, FCC and CE EMI Requirements
Brand
CLUB3D
Title

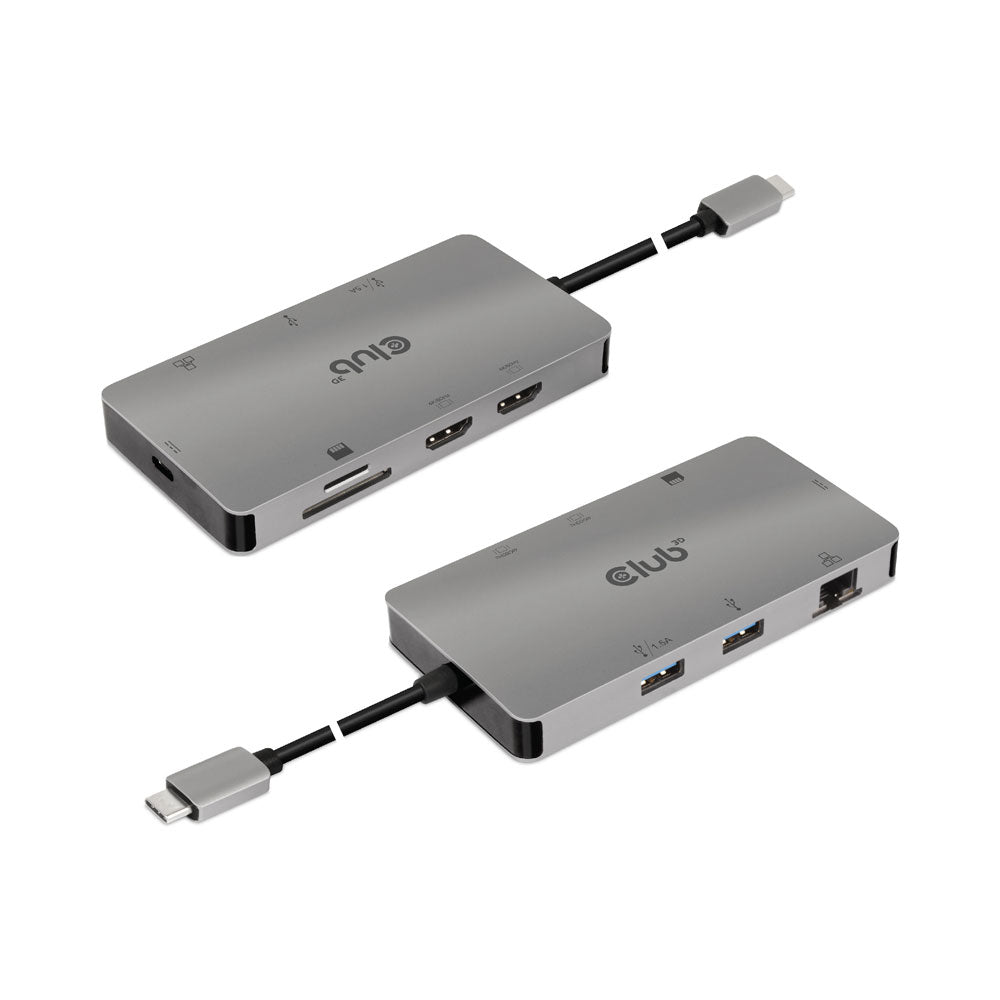

CLUB3D CSV-1593 USB3.2 TYPE-C 8-IN-1 PORT REPLICATOR WITH DUAL HDMI AND 100W PD CHARGING - CSV-1593-CLUB3D
