FEATURES
• 8×8 HDMI matrix - Connects up to eight 4K UHD HDMI sources to eight displays with flexible switching between any input and output
• 4K performance - Supports up to 4K@60Hz (4:4:4, 8-bit) with 18Gbps bandwidth, HDR and HDMI 2.0 compliance
• Advanced EDID management - Built-in, copied and user-defined EDID options ensure maximum device compatibility
• Audio breakout - 8× analogue audio outputs that can be paired individually with HDMI outputs
• OSD customisation - Displays up to 2 lines of user-defined text overlay on each output
• Multiple control options - Front panel with LCD, plus RS-232, Telnet, WebGUI and IR remote control support
SPECIFICATIONS
INTERFACES
• Input Ports: 8× HDMI
• Output Ports: 8× HDMI
• Audio Output: 8× Unbalanced Stereo (3.5mm)
• Control Ports: 1× Control (RJ45), 1× RS232 (DB9), 1× IR In (3.5mm)
• Service Port: 1× USB Type-A
VIDEO
• HDMI Compliance: HDMI 2.0 (DVI 1.0)
• HDCP Compliance: 2.x
• Input Signal Types: 4096×2160 @60Hz 8bit YUV 4:4:4
• Output Signal Type: 4096×2160 @60Hz 8bit YUV 4:4:4
RESOLUTION
• Maximum Input: HDMI 4096×2160 @60Hz
• Maximum Output: HDMI 4096×2160 @60Hz
AUDIO
• Digital Formats: HDMI LPCM, Bitstream, HD Bitstream
• Analogue Formats: Unbalanced 2-Channel
POWER
• Power Supply: 24V, 6.25A
• Power Consumption: 70W
ENCLOSURE
• Chassis Material: Steel
• Chassis Colour: Black
• Dimensions (W × H × D):
- 438 × 44 × 269mm (Case Only)
- 438 × 49 × 274mm (All Inclusive)
• Weight: 3.6kg
FIELD FIRMWARE UPDATE
• Interface: USB Flash Drive, WebGUI
Brand
Cypress
Title

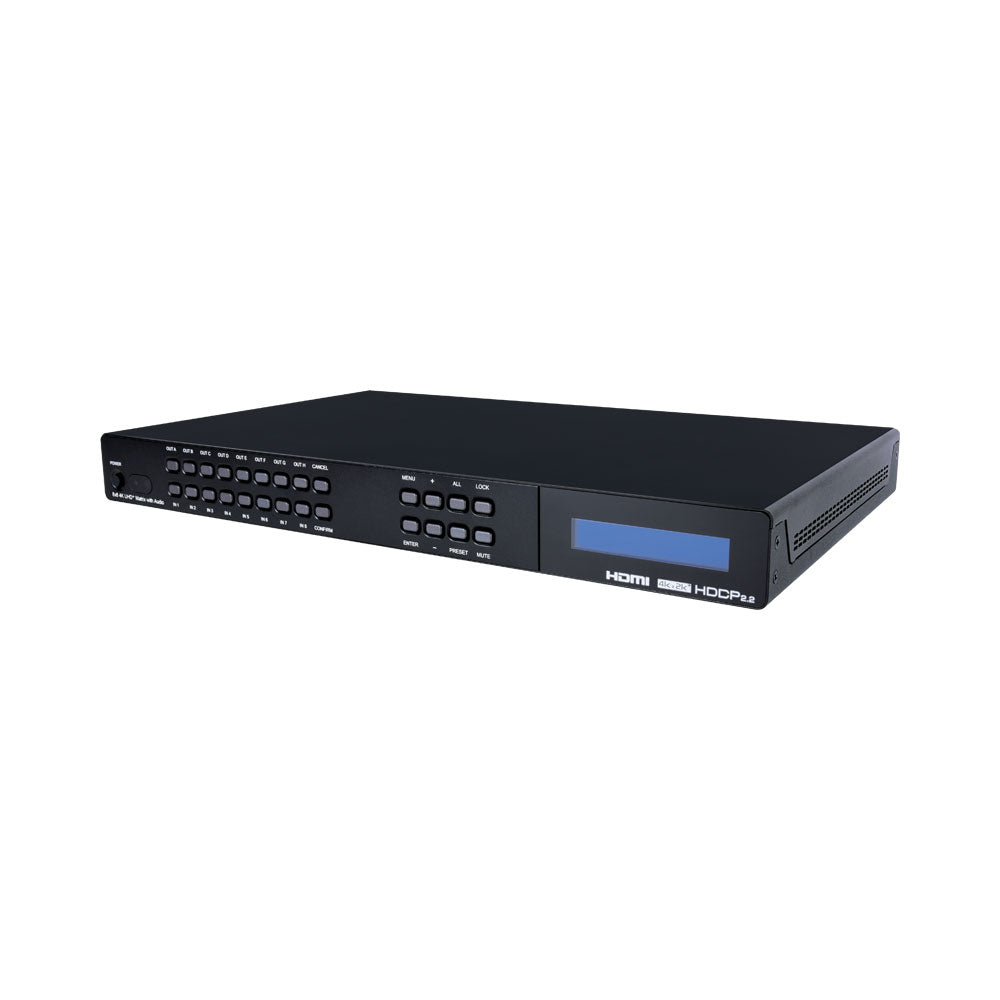

CYP CPLUS-V8H8HPA 4K 8X8 HDMI MATRIX WITH AUDIO OUTPUT - CNV-CPLUS-V8H8HPA
