Features and Specifications

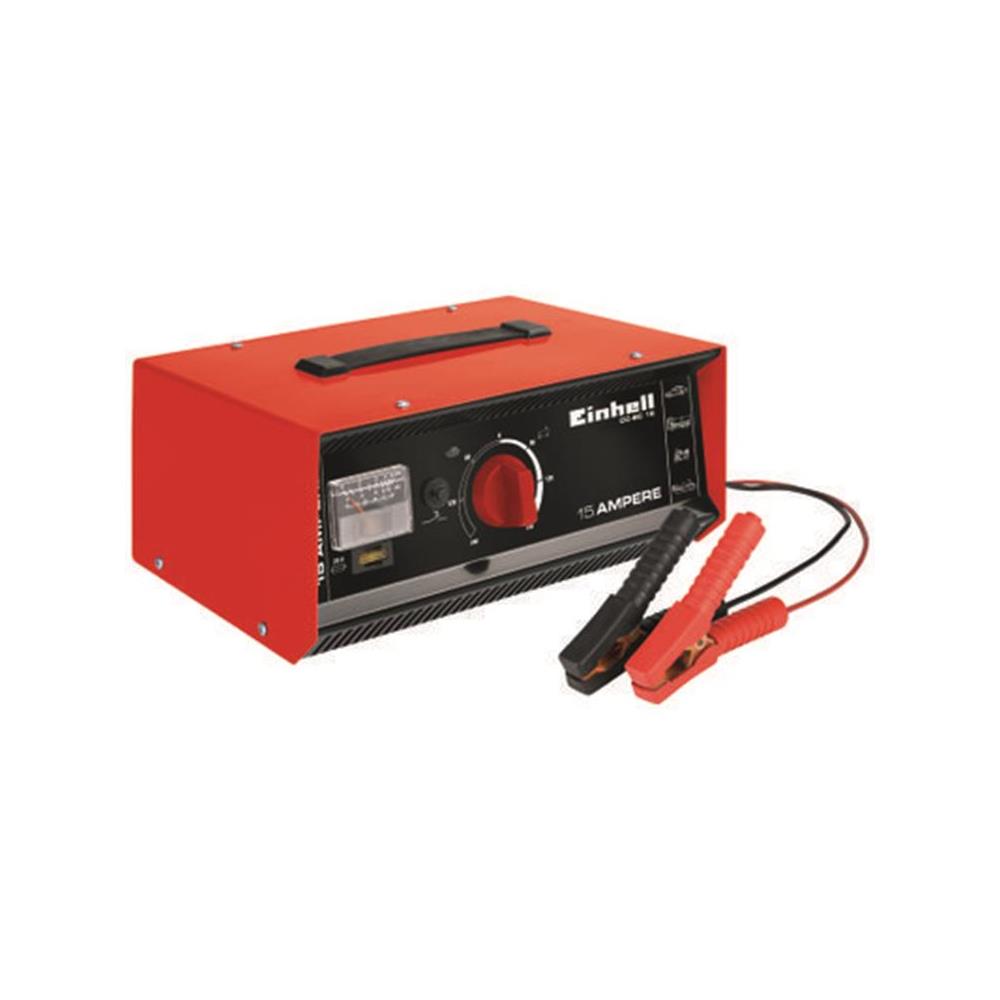

The einhell battery charger for car batteries 6/12/24V inbuilt ampere meter allows the quick and safe reading of the current charging rate. The strong and totally insulated terminal clamps grant an optimal contact to the battery terminals at any time, and the device can be transported safely due to its handy, stable handle.

• All-insulated construction
• Overload-, falls poling- and short circuit protection
• Sheet steel housing
• Carrying handle
• Turn-switch for quick/normal load + setting of the required voltage
• Built-in ammeter
• Mains cable with Europe plug
• Charging leads with sturdy pole clamps

Technical data
Mains supply	230 V | 50 Hz
Charging voltage	6 V/ 12V/ 24V
Charging current Min. (arith./eff.) - Max. (arith./eff.) on 6 V d.c.	4,4 / 6,5 - 10,4 / 15 A
Charging current Min. (arith./eff.) - Max. (arith./eff.) on 12 V d.c.	5,4 / 8 - 10,4 / 15 A
Charging current Min. (arith./eff.) - Max. (arith./eff.) on 24 V d.c.	4,7 / 7 - 6,8 / 10 A

Logistical data
Length	326 mm
Width	257 mm
Height	176 mm
Gross weight single packaging	6.11 kg
Product weight	5.34 kg
