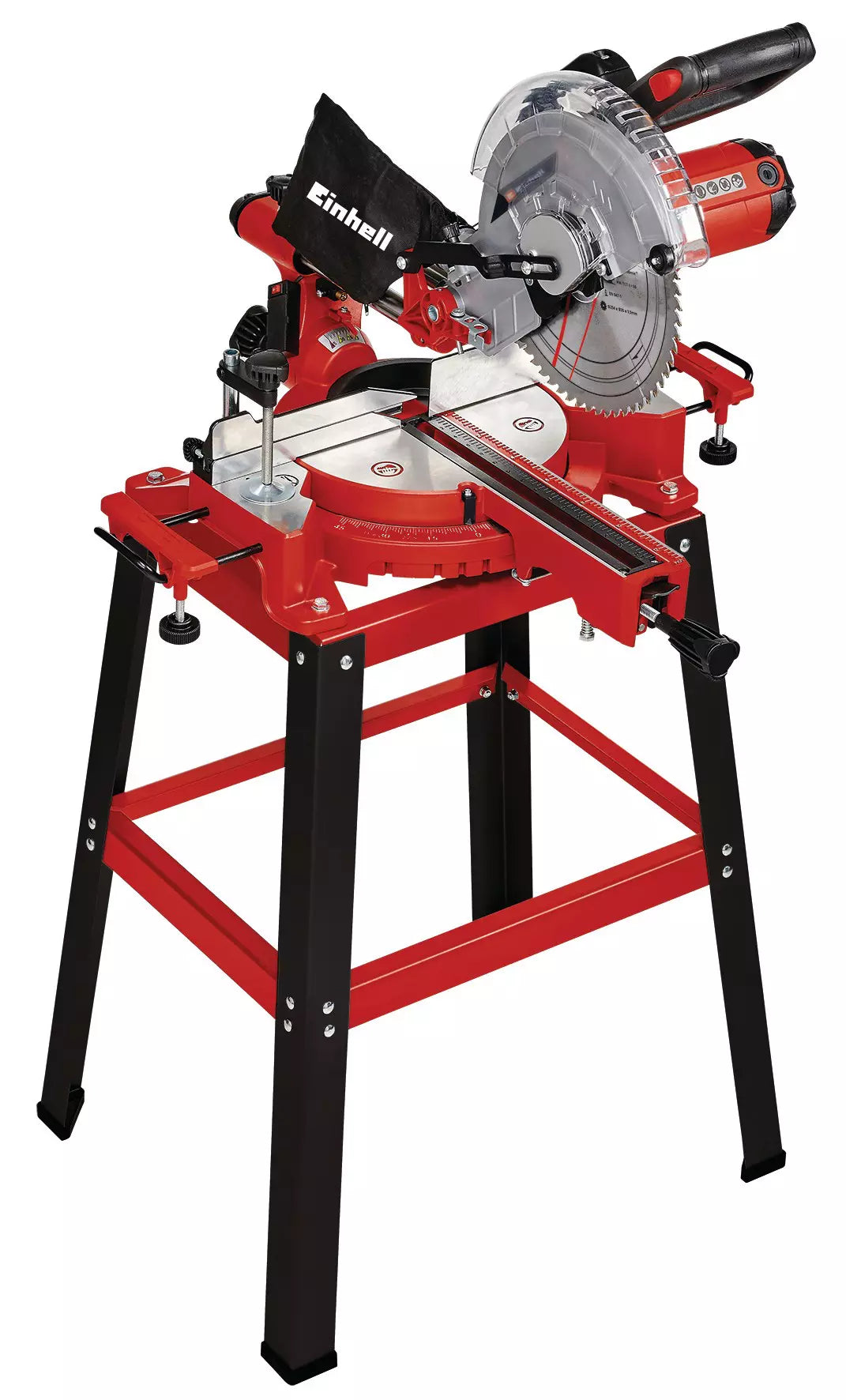

Article descriptionThe Einhell (pull-cut/cross-cut) mitre saw TC-SM 2531/2 U is a high-quality tool for ambitious DIY enthusiasts. It enables the processing of wood, coated panels and plastics. The cross-cut saw turntable made of high-quality die-cast aluminum has a precise angle adjustment that can be locked in different positions with one touch. With its continuously tilting saw head to the left, the saw allows the attachment of mitres and chamfers at any desired angle up to 45°. The double-supported pulling function allows the cutting of particularly wide workpieces. A robust clamping device is provided for the secure fixing of the workpiece. Thanks to cutting depth adjustment, even demanding work can be carried out effortlessly. The sturdy saw blade with a diameter of 254 mm saws powerfully and cleanly. It can be easily changed by means of a spindle lock. The dust collection sack ensures cleanliness at the workplace. Thanks to the underframe, a relaxed posture is ensured. A transport lock is provided for easy, safe transport.
Technical details
| Cutting depth 45° x 45° |
40 mm |
| Cutting depth 90° x 90° |
70 mm |
| Cutting width 45° x 45° |
210 mm |
| Cutting width 90° x 90° |
230 mm |
| Idle speed max. |
4800 min^-1 |
| Max. swivel range (saw head) |
0 ° |
| Max. swivel range (saw table) |
45 ° |
| Min. swivel range (saw head) |
45 ° |
| Min. swivel range (saw table) |
45 ° |
| Number of saw blade 1 teeth |
48 pcs |
| Number of saw blade 2 teeth |
48 pcs |
| Power |
1900 W |
| Product weight |
17.76 Kg |
| Saw blade 1 diameter |
254 mm |
| Saw blade 2 type |
HW/TCT |
| Saw blade holder diameter |
30 mm |
A must-have in every workshop!
The pull-cut mitre saw TC-SM 2531/2 U is equipped with a high-quality precision carbide saw blade, which enables a clean and precise cutting pattern. In combination with a 1900 W motor, the saw also masters demanding tasks.
Precise in every situation
Thanks to the clearly visible cutting line laser, you get clean cutting templates & can quickly align the workpiece to the desired position.
Simple mitre cuts
The pull-cut mitre saw has a tiltable saw head to the left (adjustable up to 45°): Precise mitre cuts are therefore no problem.
Optimal working height

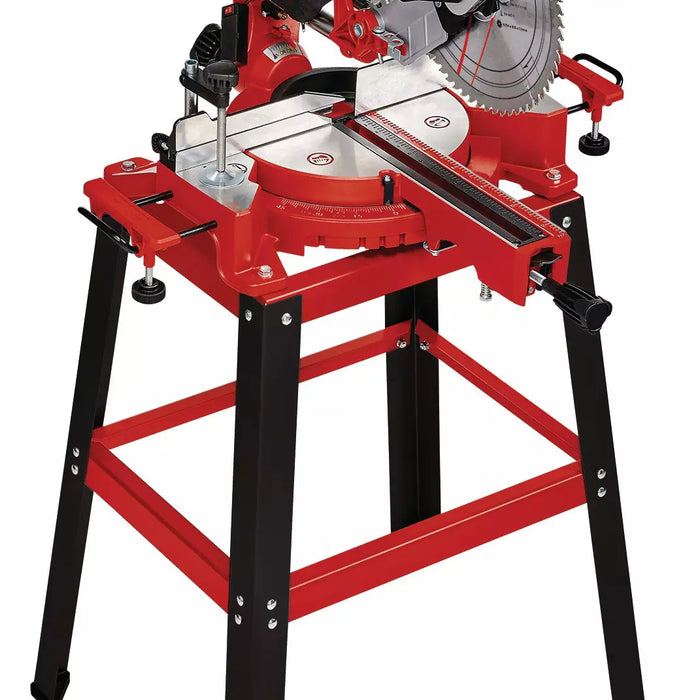

With a working height of 84 cm, the stable underframe ensures a secure stand and a relaxed posture during work.
Need another saw blade?
The spindle lock and the easily accessible saw blade screw enable a simple, quick and above all safe saw blade change.
Underestimated the width?
Thanks to the integrated pull function, even particularly wide workpieces up to 31 cm can be cut effortlessly. A cutting device fixes the workpiece for safety.
Get going easily
With the clever quick adjustment, the desired angle can be easily adjusted. A lever mechanism releases and fixes the table.
Extensive sawing & cross-cut work? We have just the thing!
The Einhell pull-cut mitre saw TC-SM 2531/2 U can flexibly, quickly and easily cut a wide variety of materials such as wood or plastic. Even longer workpieces are no problem thanks to the workpiece supports attached to the left and right.
