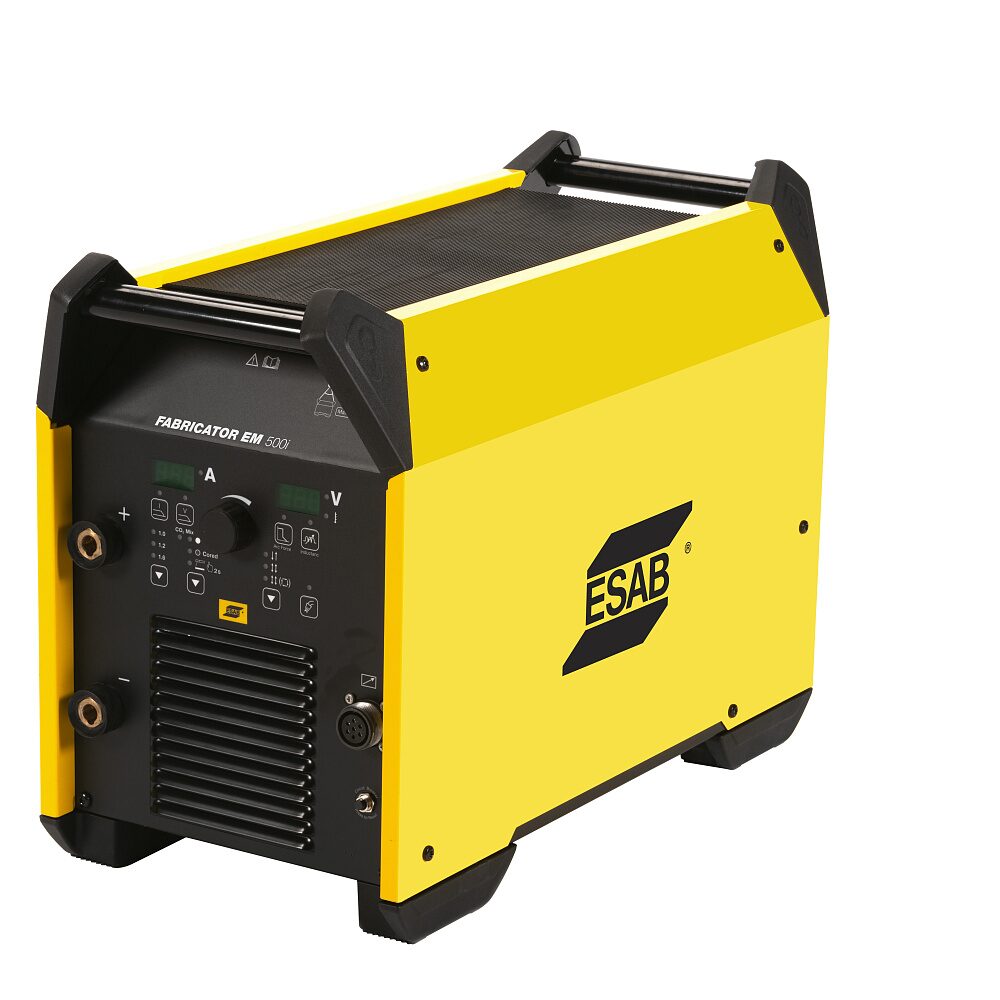

Fabricator Em500I
Fabricator are a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed.
- Lower cost of operation. Delivers all the added benefits of an inverter technology at a similar price as a conventional transformer machine
- Energy savings with high efficiency, high power factor and low idle power
- Optimized welding performance in MIG/MAG using both Mix or CO2 shielding gas
- Variable inductance control for better arc performance
- Secondary end parameter setting to get perfect welding finish with crater fill activated in the 4T or 4T Repeat mode
- Wide voltage tolerance for stable welding output
- Durable, IP23S rating for outdoor and indoor use in rough environment
- Light-weight for improved mobility and designed with crane safe lifting handles
- Application class S for operating in conditions with high electrical hazards
- Wide operational input voltage, can operate from 342 to 484 V
Specifications
| Specifications | |
|---|---|
| Voltage | 380-440 V , 3, 50/60 Hz |
| GMAW/SMAW Welding Output | 500 A @ 60 % Duty Cycle 390 A @ 100 % Duty Cycle |
| Wire Feed Information | 2.2-20.0 m/min |
| Wire Diameter (met) Stainless Steel Cored Wire Mild Steel |
1.0-1.6 mm 1.0-1.6 mm 1.0-1.6 mm |
| Max Spool Diameter | 300 mm |
| Power Factor at Maximum Current | 0.93 |
| Efficiency at Maximum Current | 87 % |
| Setting Range MIG/MAG | 15.5-39 VDC (30-500 A) |
| Setting Range MMA/DC | 21.2-40 VDC (30-500 A) |
| Energy Save Mode | 35 W |
| Operating Temp | -10 to +40 °C |
| MCableX | 4 x 6 |
| Enclosure Class | IP23S |
| Insulation Class | H |
| Application Class | S |
| Certification | CSA |
| Dimensions, L x W x H | 712 x 325 x 470 mm |
| Weight | 62 kg |
Accessories (sold separate)
| Item Number | Description | UOM |
| 0700020004 | Fabricator Feed 364 - Enclosed | PCE |
| 0349490624 | Interconnection Cables - 70mm² - 5m | PCE |
| 0700025041 | PSF 415 Torch - 4m | PCE |
| 201054 | ESAB Cutskill Flowmeter Reg 30 LPM | PCE |
| 0349313450 | Trolley 3 in 1 | PCE |
