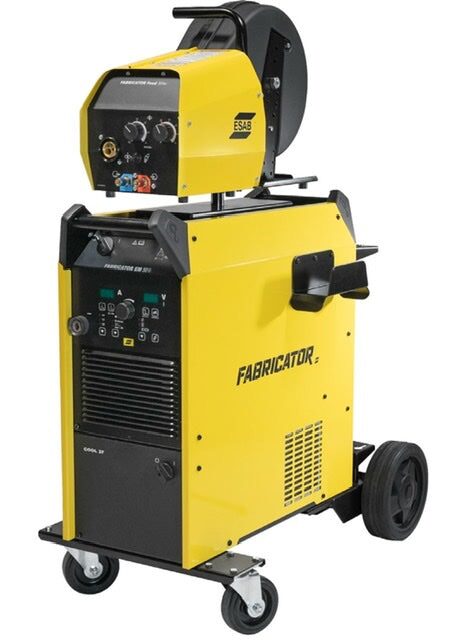

Fabricator Em501I W
Fabricator are heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed.
- Rugged and Reliable welding system for heavy application, 400 A or 500 A at 60% Duty Cycle.
- Three variants, one 500 with integrated Cooling unit, and two 400 with and without cooling unit
- Energy savings with high power factor, high efficiency and low idle power
- Lower cost of operation. Delivers all the added benefits of an inverter technology at a similar price as a conventional transformer machine

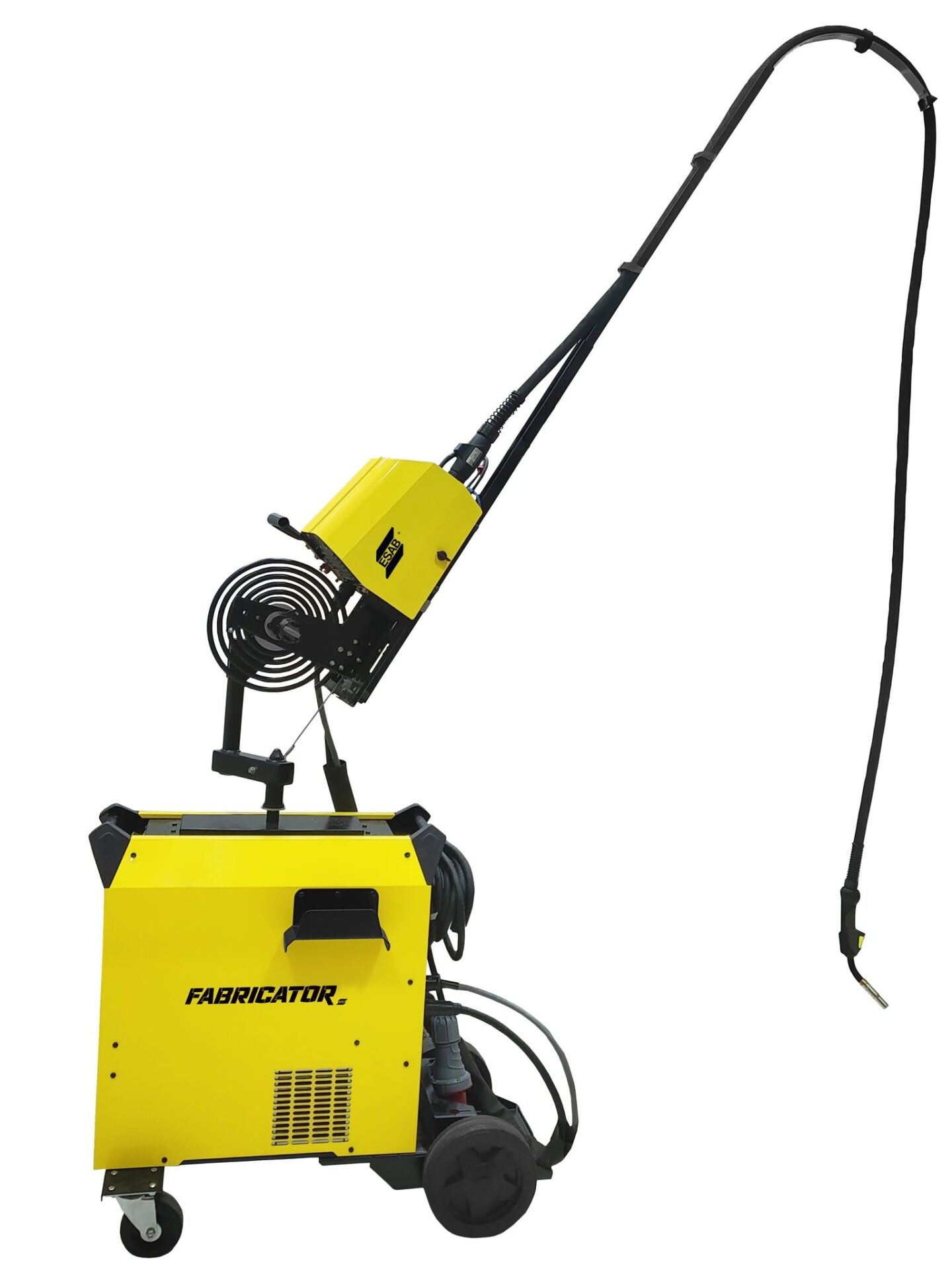

- The machine is built in with integrated wide and large wheels and cylinder support to facilitate moving around the workshop. Also includes two side cable handling supports.
- Wide voltage tolerance for stable welding output
- Variable inductance control for better arc performance
- IP23 use anywhere, for field and workshop applications
Industries
- Civil Construction
- Industrial and General Fabrication
- Repair and Maintenance
Specifications
| Model | EM 401i | EM 501i |
|---|---|---|
| Input Voltage | 380-415 V ±10 %, 3, 50/60 Hz | 380-415 V ±10 %, 3, 50/60 Hz |
| MIG/MAG Welding Output | 400 A @ 60 40 30 % Duty Cycle 310 A @ 100 % Duty Cycle |
500 A @ 60 % Duty Cycle 390 A @ 100 % Duty Cycle |
| MMA Welding Output | 400 A @ 60 % Duty Cycle 310 A @ 100 % Duty Cycle |
500 A @ 60 % Duty Cycle 390 A @ 100 % Duty Cycle |
| Power Factor at Maximum Current | .091 | .091 |
| Efficiency at Maximum Current | 86 % | 87 % |
| Setting Range MIG/MAG | 15.5-34 VDC (30-400 A) | 15.5-39 VDC (30-500 A) |
| Setting Range MMA/DC | 21.2-36 VDC (30-400 A) | 21.2-40 VDC (30-500 A) |
| Energy Save Mode | <35 W | <35 W |
| Operating Temp | -10 to +40 °C | -10 to +40 °C |
| Enclosure Class | IP23 | |
| Application Class | S | |
| Certification | CE, EAC | |
| Dimensions, L x W x H | 1035 x 500 x 1015 mm | 1035 x 500 x 1015 mm |
| Weight w/o cooling unit w/ cooling unit w/o coolant w/ cooling unit & coolant |
107.5 kg 111.5 kg 102.0 kg |
111.5 kg 115.5 kg N/A kg |
Accessories (sold separate)
| Item Number | Description | UOM |
| 0446401882 | Fabricator Feed 304W | PCE |
| 0349490624 | Interconnection Cables - 70mm² - 5m | PCE |
| 0700025071 | PSF 520w Torch - 4m | PCE |
| 201054 | ESAB Cutskill Flowmeter Reg 30 LPM | PCE |
| 0349313450 | Trolley 3 in 1 | PCE |
